Diagnosis By Symptom - Underhood Reel Lamp
Diagnosis By Symptom - Underhood Reel Lamp

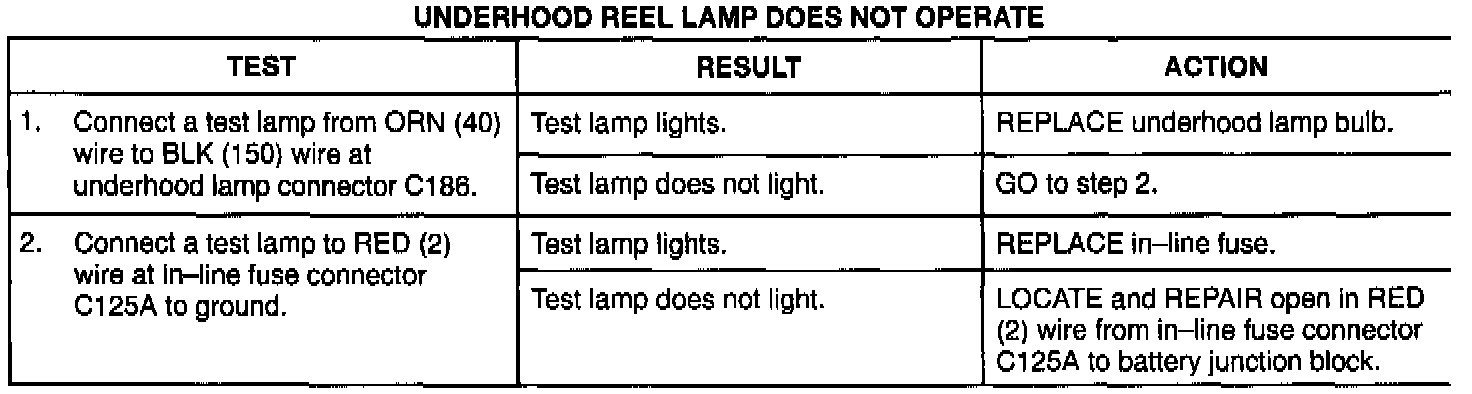

Diagnostic Chart:
