Antilock Braking System (ABS) - Four Wheel Antilock Brakes (4WAL)

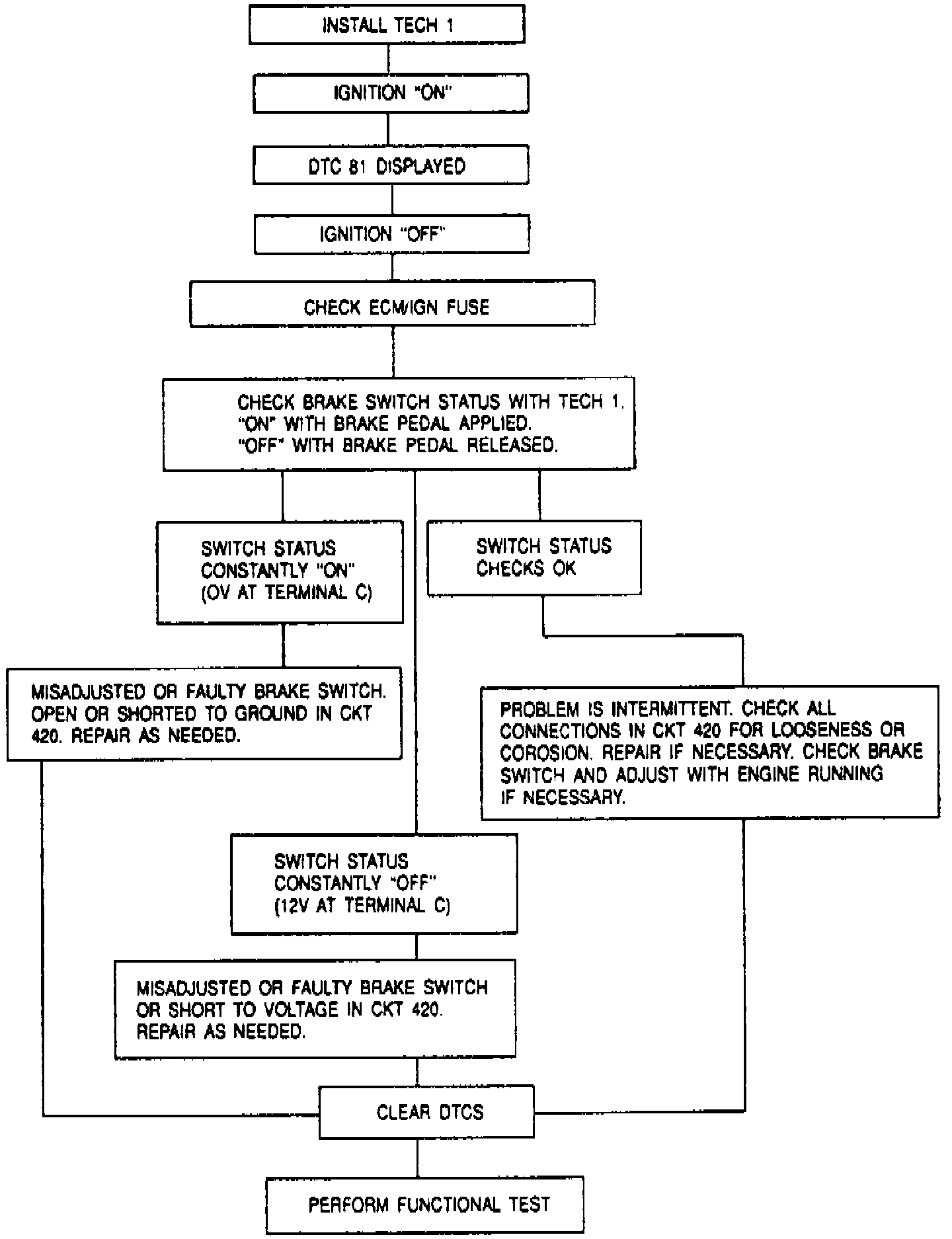

Fig. 179 Code 81: Brake Switch Circuit Shorted Or Open:
