Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1994
>>
G 20 Van V8-305 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Doors
>>
Cross Body Harn to LH Door Harn
Cross Body Harn to LH Door Harn

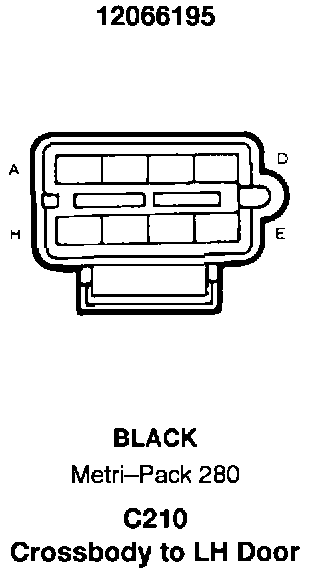

C210, Crossbody To LH Door:

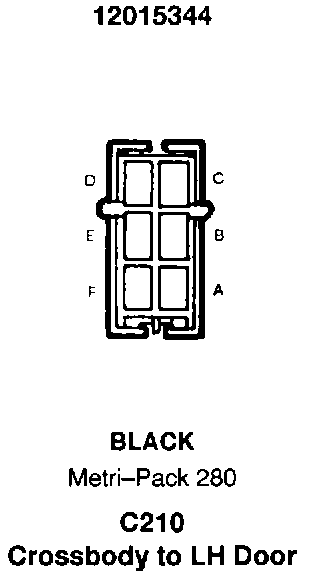

C210, Crossbody To LH Door:

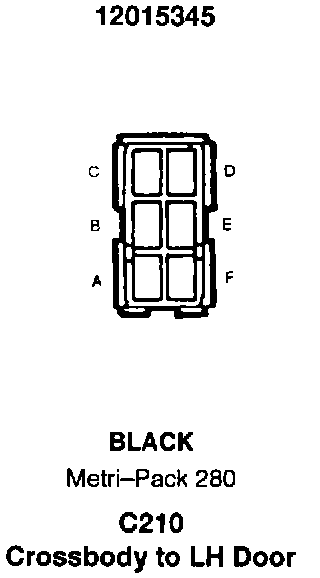

C210, Crossbody To LH Door:
