Antilock Brakes / Traction Control Systems
>>
Electronic Brake Control Module
Electronic Brake Control Module

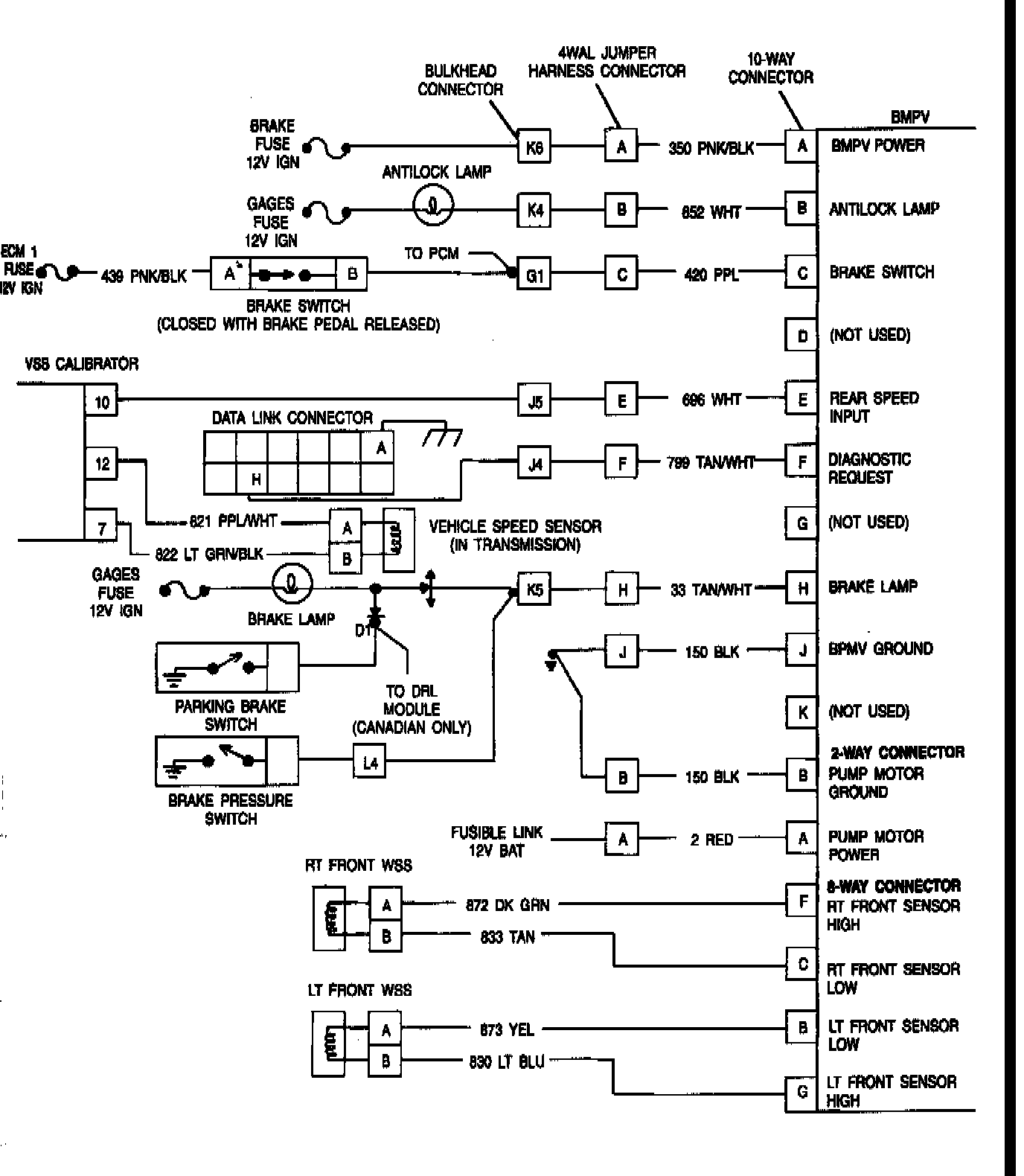

Four Wheel Anti-Lock Brake Wiring Circuit
