PCM & Malfunction Indicator Lamp (MIL)
PCM & Malfunction Indicator Lamp (MIL)

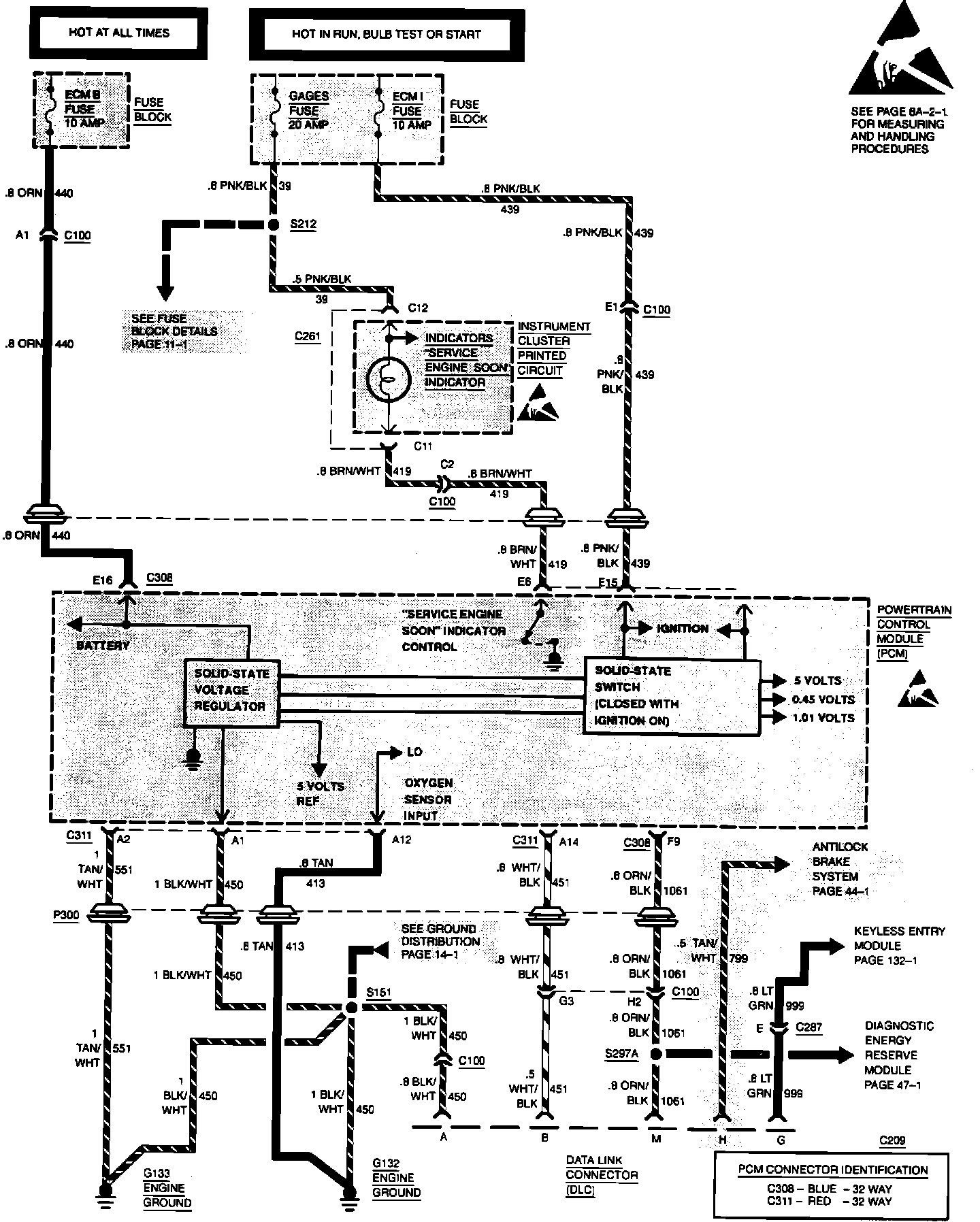

PCM and Malfunction Indicator Lamp (MIL) Wiring Diagram:
