Brake Light Switch
Brake Light Switch

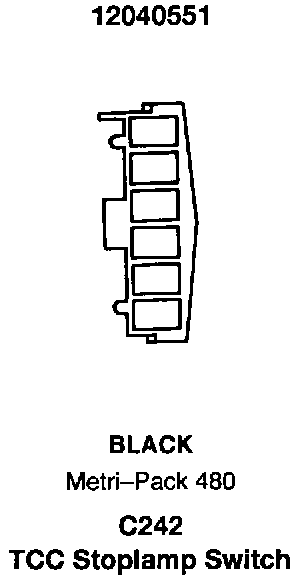

C242, TCC Stoplamp Switch:

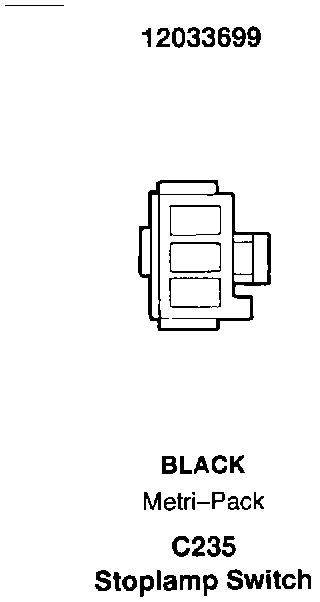

C235, Stoplamp Switch:

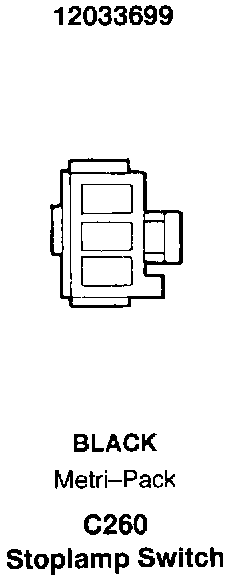

C260, Stoplamp Switch:

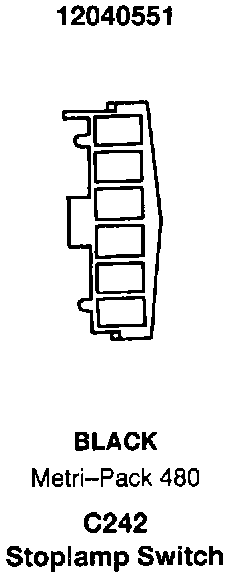

C242, Stoplamp Switch:
C242, TCC/Brake Switch:
