With Quad Halogen

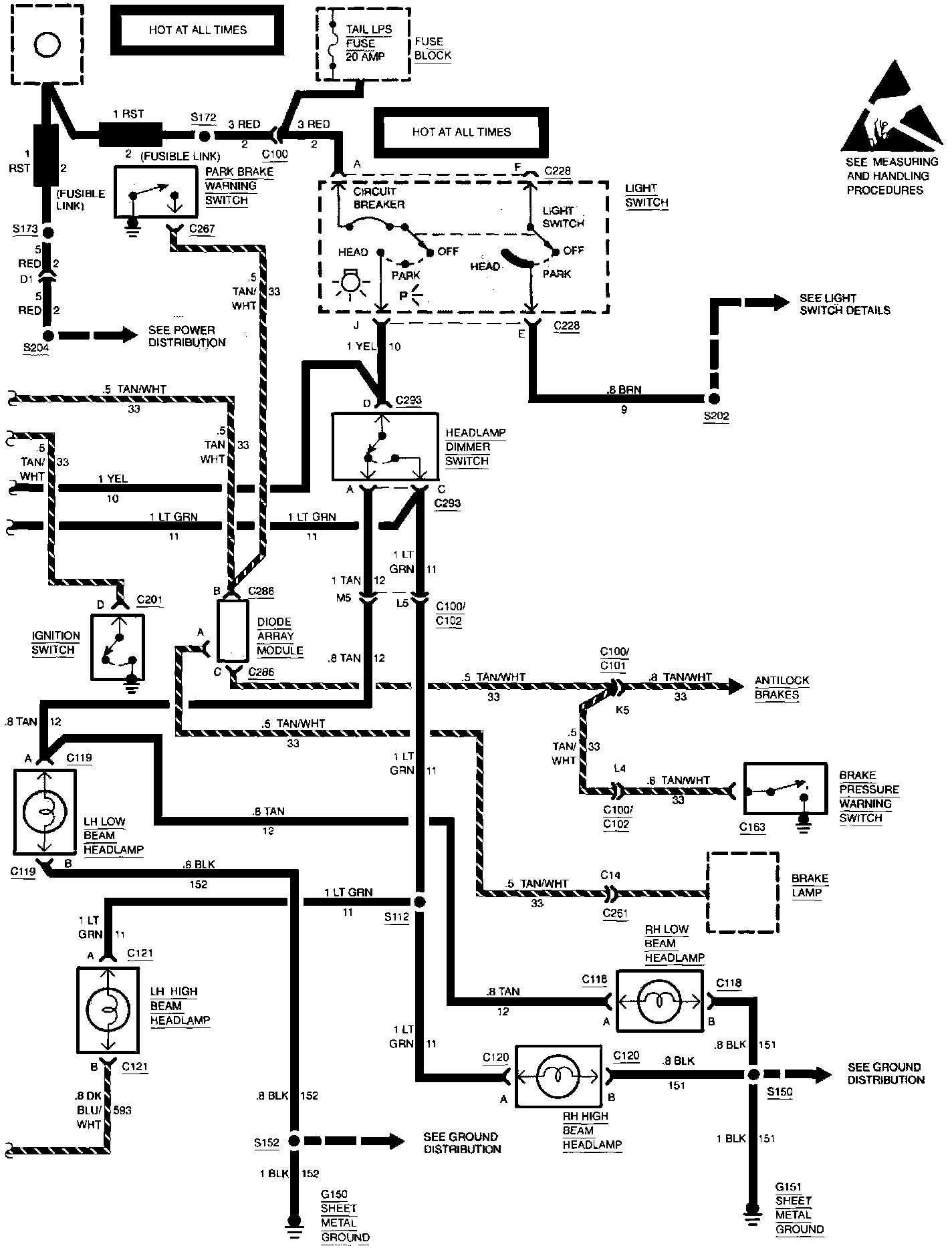

Headlamps And Fog Lamps With DRL (Part 1 Of 2) With Quad Halogen:



Headlamps And Fog Lamps With DRL (Part 2 Of 2) With Quad Halogen:
