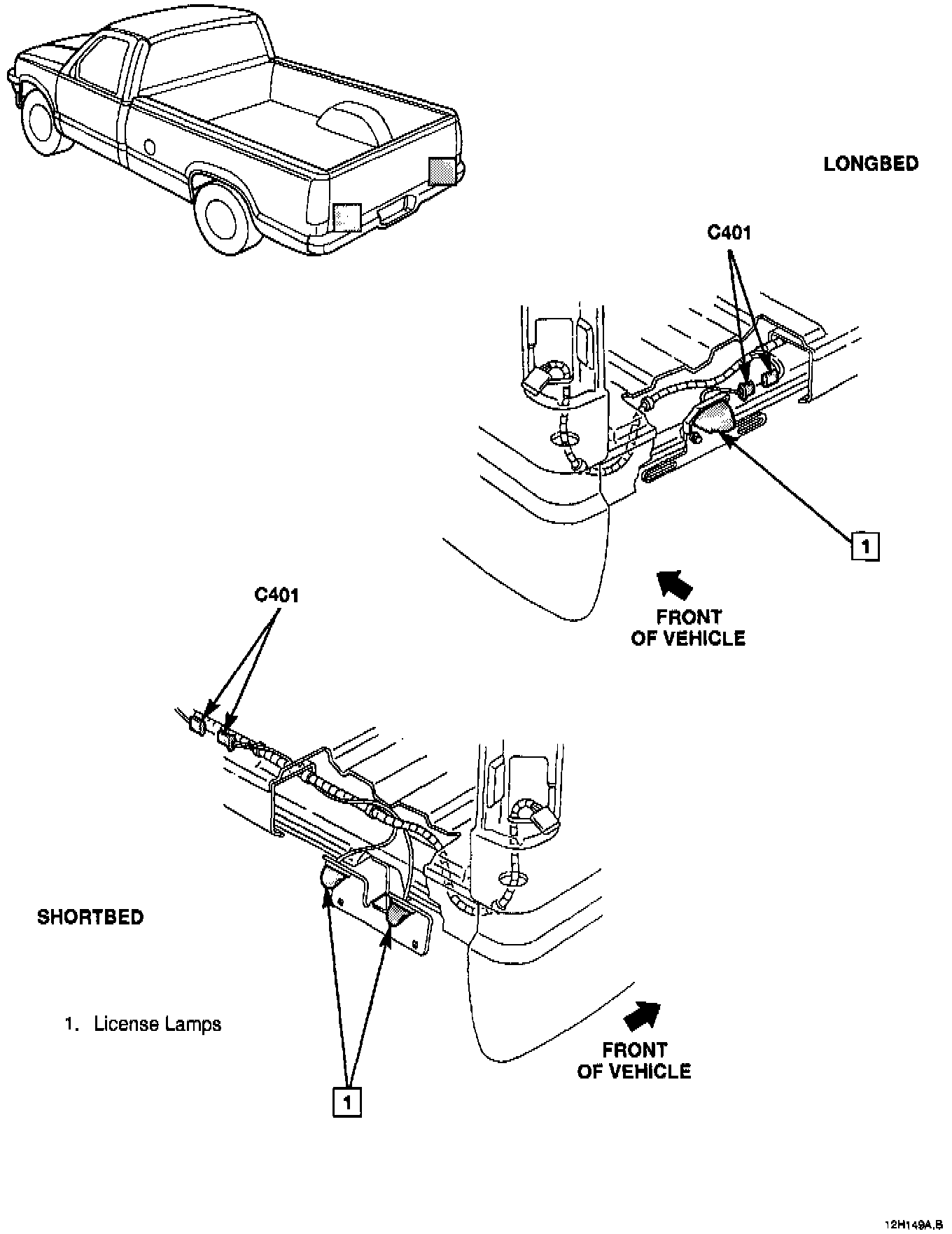

License Plate Lamp: Locations
License Lamp Without Bumper:
Without Bumper - Rear of vehicle at license holder.
Tail and Stoplamp Harness Wiring:
With Bumper - LH and RH center of rear bumper.
