Electrical Diagrams

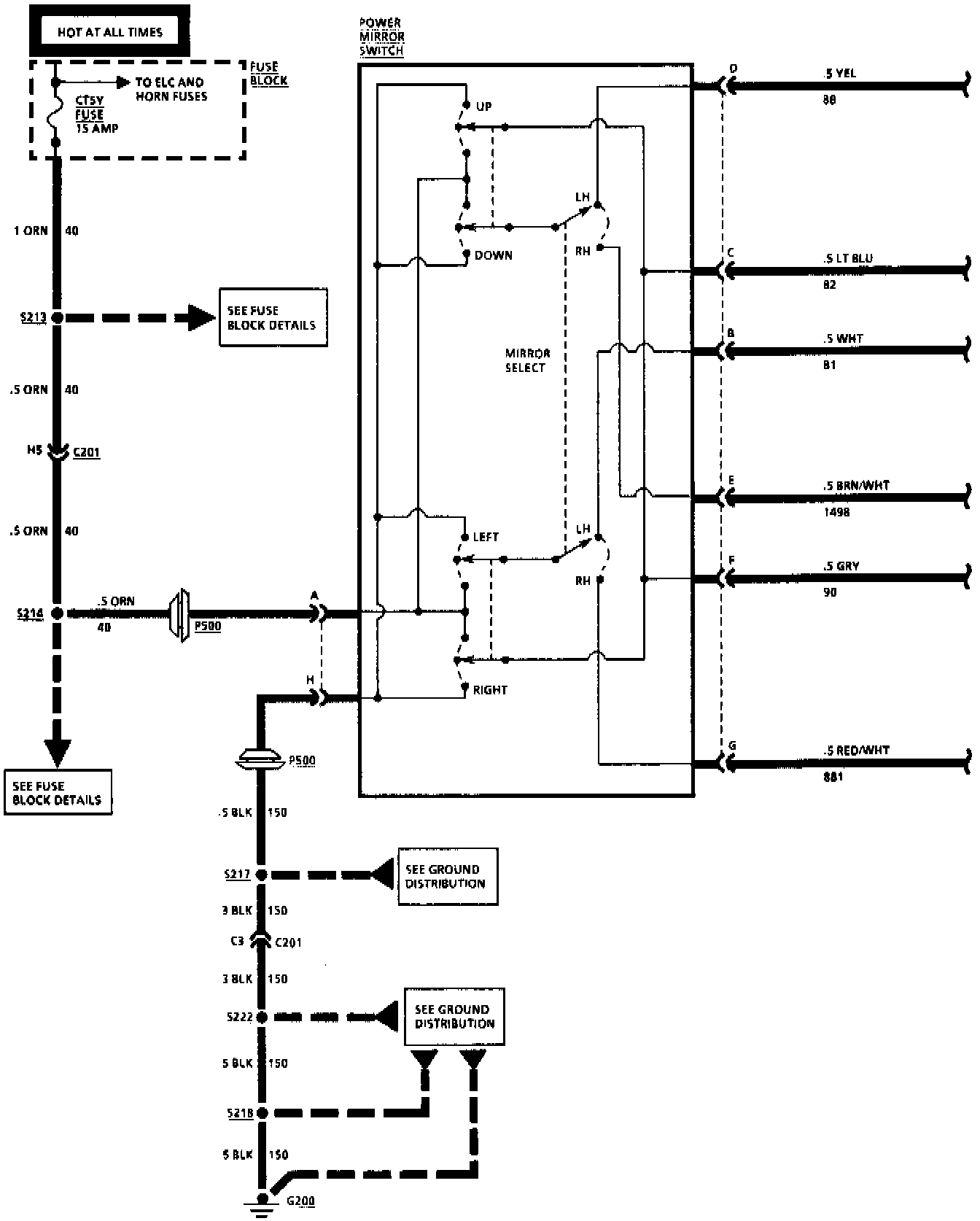

Power Mirror Diagnostic Chart - Part 1 Of 2:

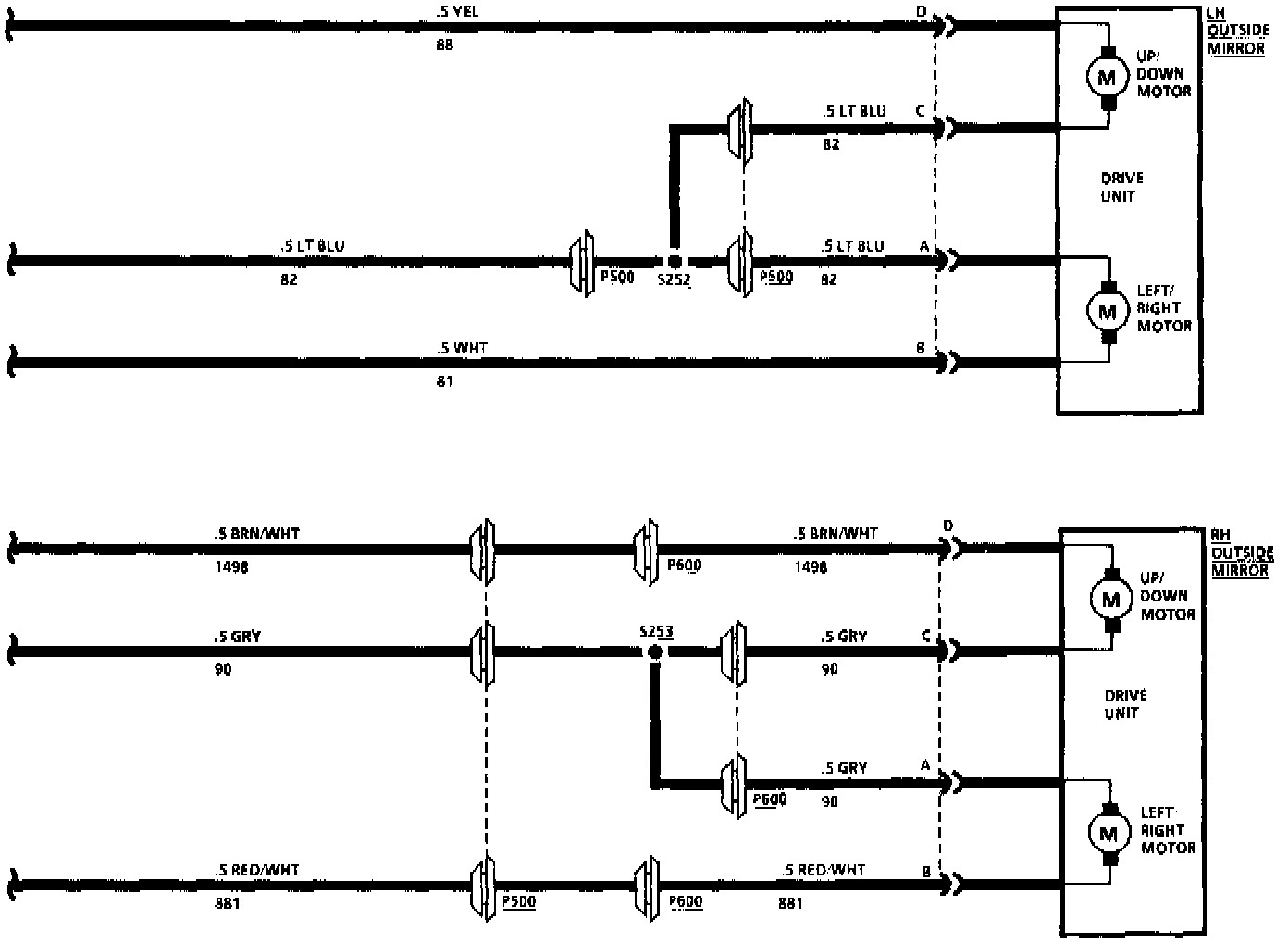

Power Mirror Diagnostic Chart - Part 2 Of 2:
