Daytime Running Lamp

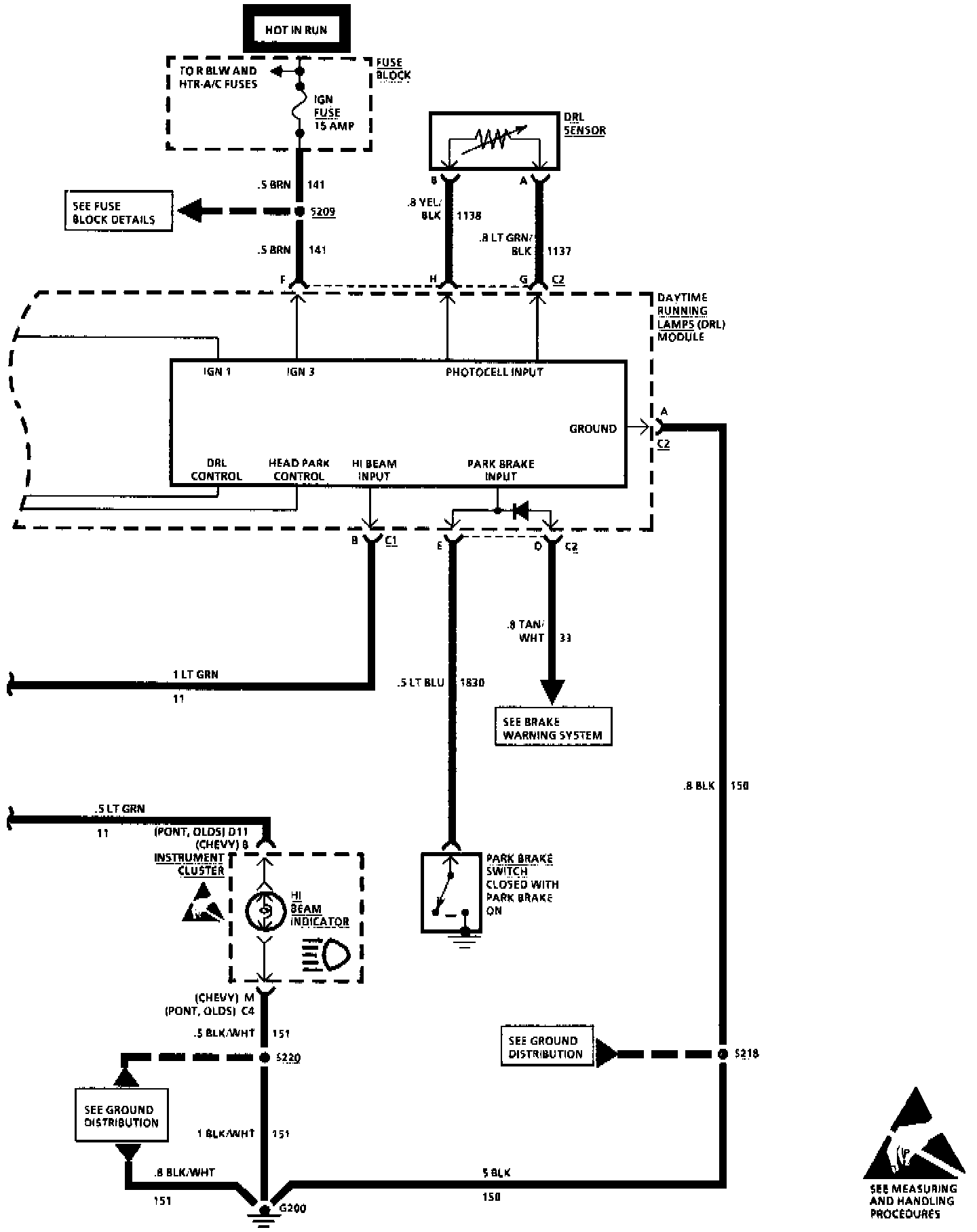

Daytime Running Lamps (Option T61) Part 1 Of 2:



Daytime Running Lamps - Part 2 Of 2:
