Lumina APV V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
Without Automatic Door Locks
Without Automatic Door Locks

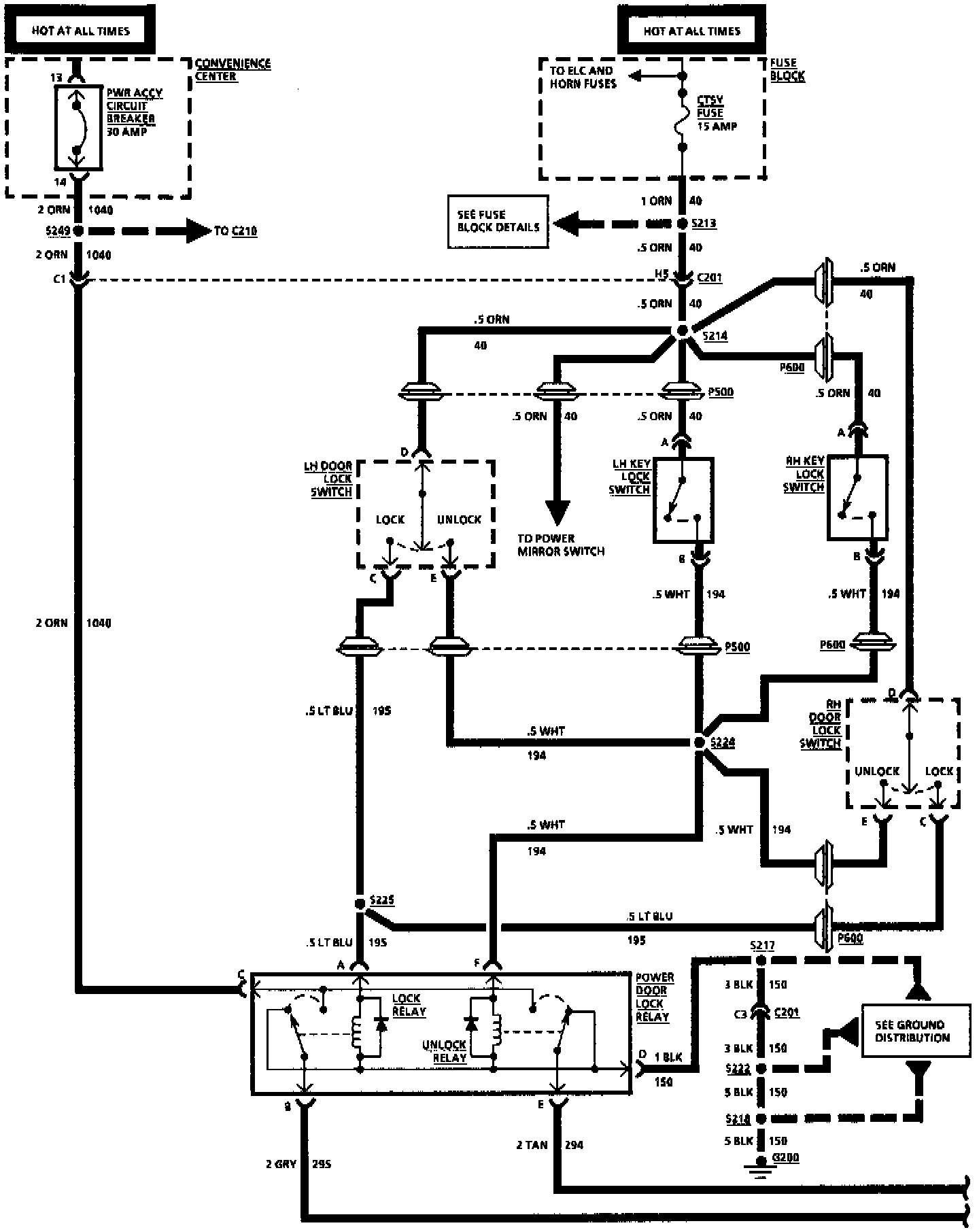

Power Door Lock Circuit - Part 1 Of 2:

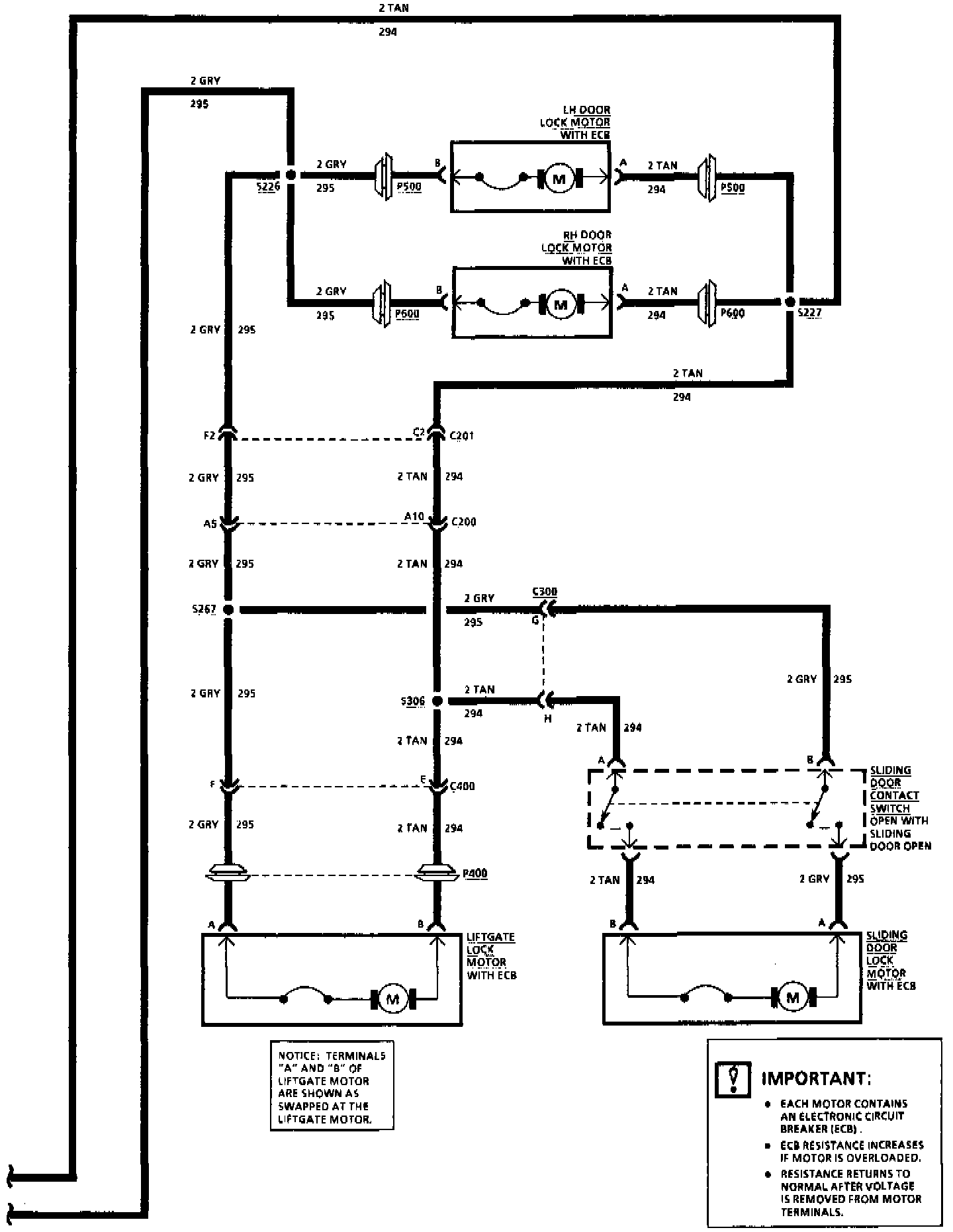

Power Door Lock Circuit - Part 2 Of 2:
