Compressor Clutch Diode HVAC: Locations

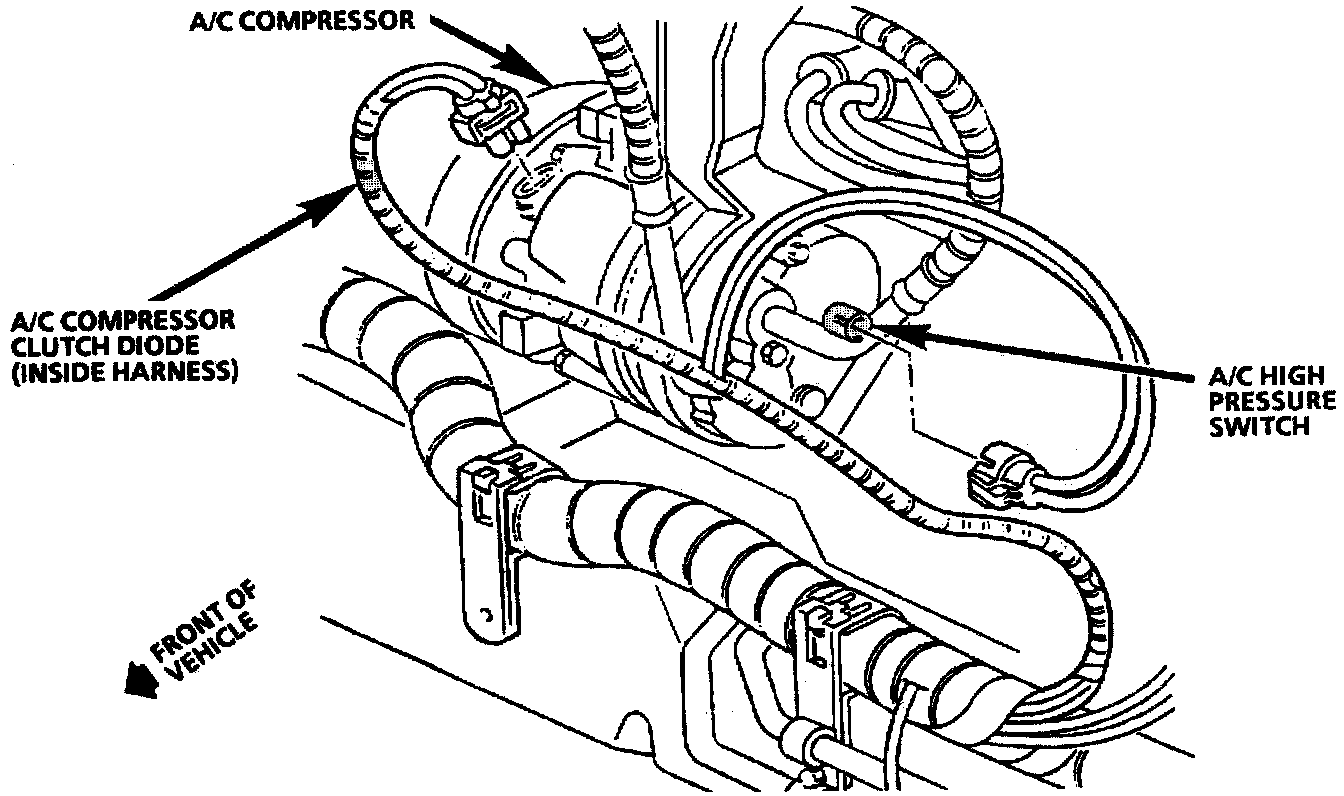

Front RH Side Of Engine (with C67 Only):

Front RH Side Of Engine (VIN D with C34 Only, VIN L):

Spliced into Engine Wiring Harness, approximately 15 cm from A/C Compressor Clutch connector
