Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1994
>>
Lumina APV V6-191 3.1L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Air Delivery and Temperature Control
Air Delivery and Temperature Control

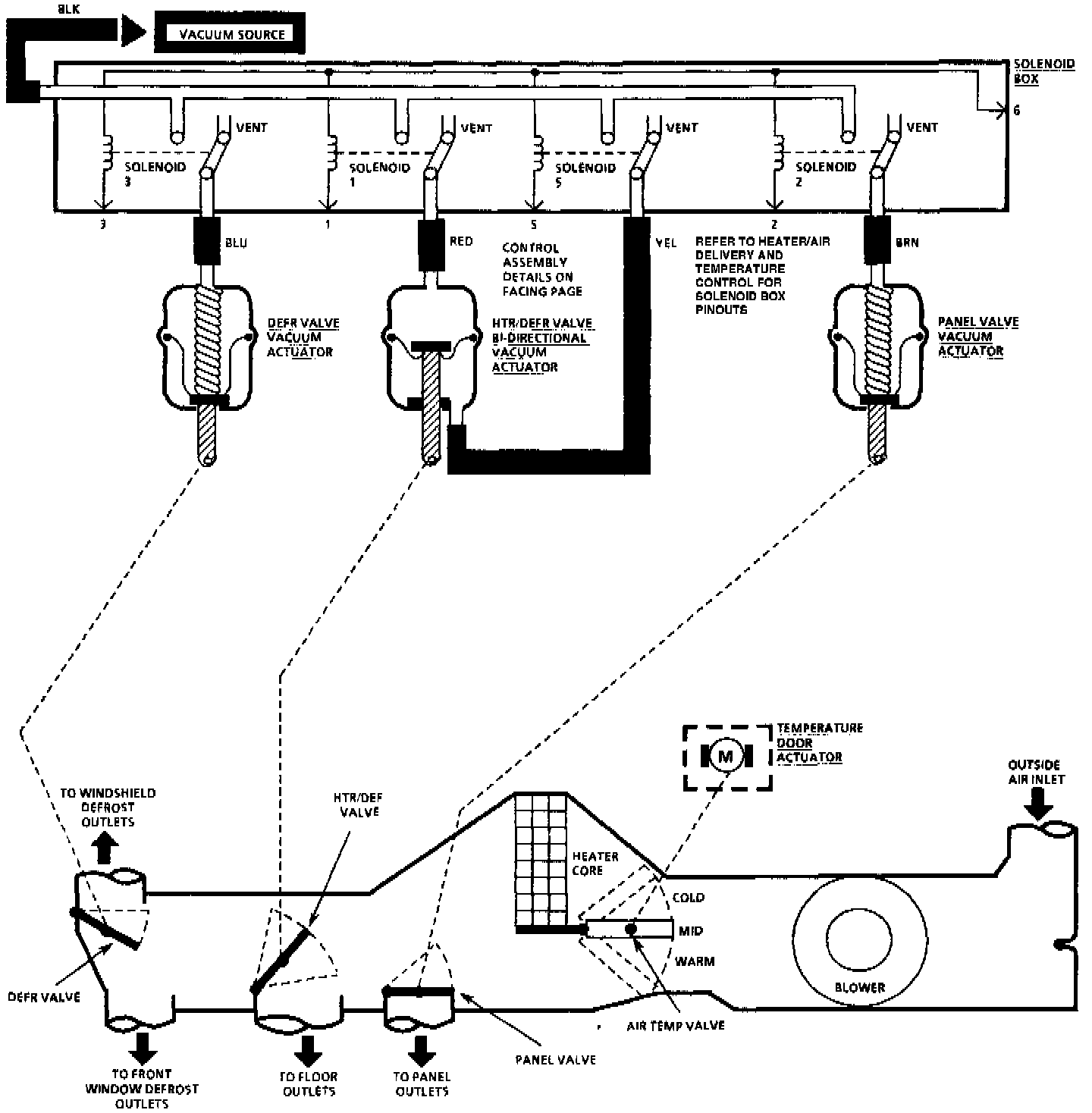

Air Delivery And Temperature Control Circuit (C40 Option): Part 1 Of 2:
Air Delivery And Temperature Control Circuit (C40 Option): Part 2 Of 2:
