Front and Rear HVAC Auxiliary Blower Motor Control
Front and Rear HVAC Auxiliary Blower Motor Control

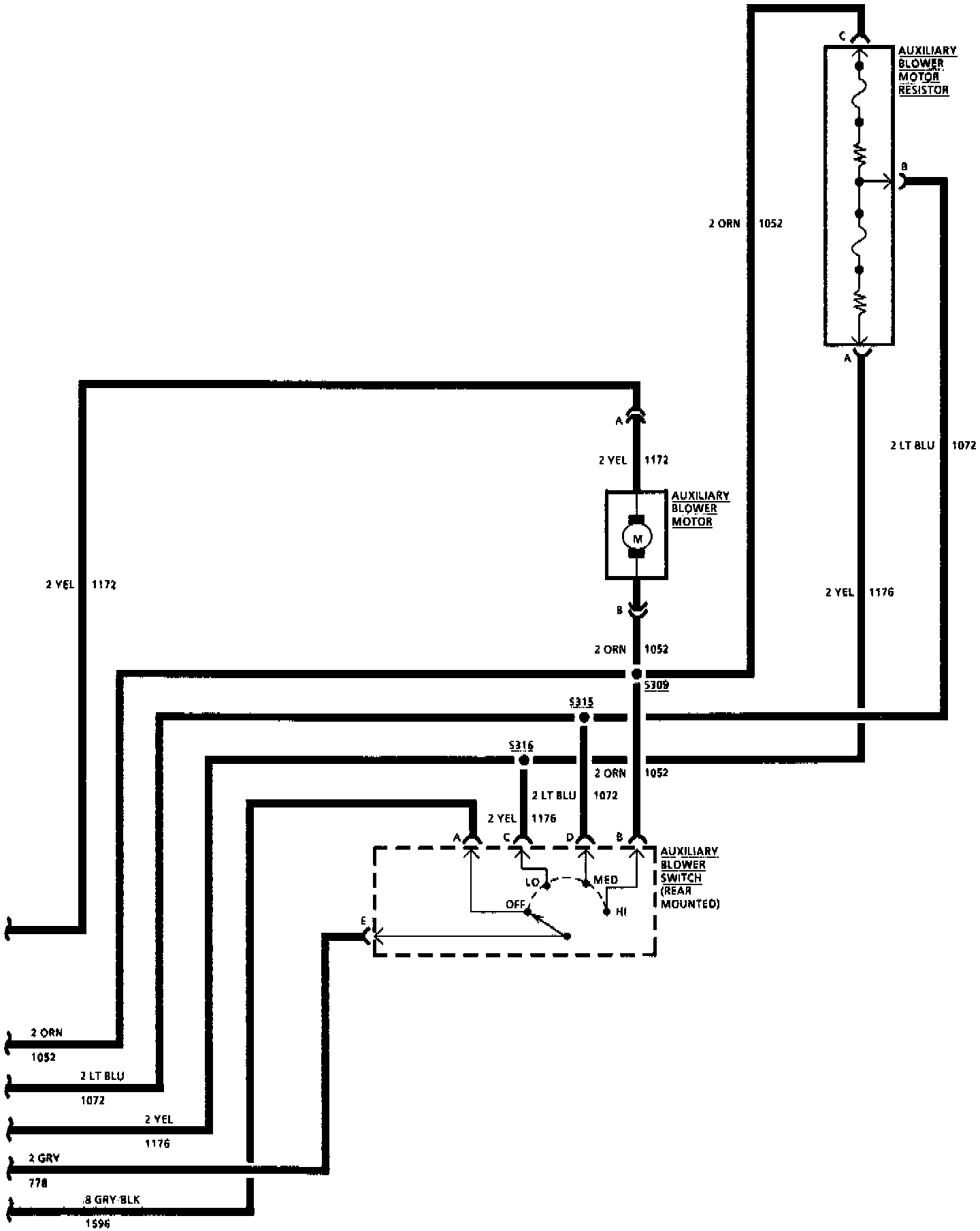

Front And Rear Auxiliary Blower Motor Control(C34 Or C34/C36: Part 1 Of 2:
Front And Rear Auxiliary Blower Motor Control(C34 Or C34/C36: Part 2 Of 2:
