Rear Blower Switch Inoperative, Front Blower Switch OK
Rear Blower Switch Inoperative, Front Blower Switch OK

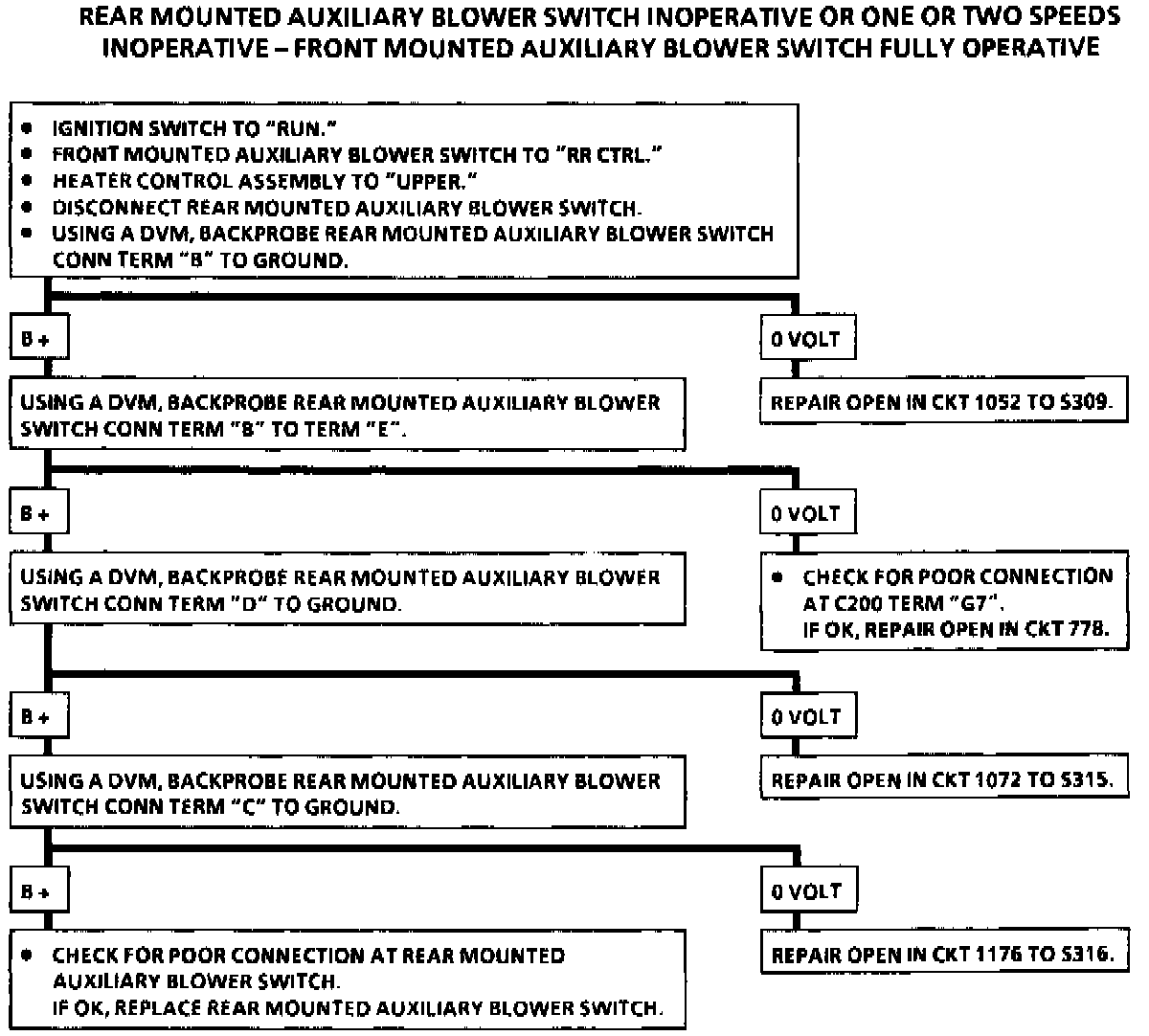

Diagnostic Chart:
