Fuel Gauge: Testing and Inspection

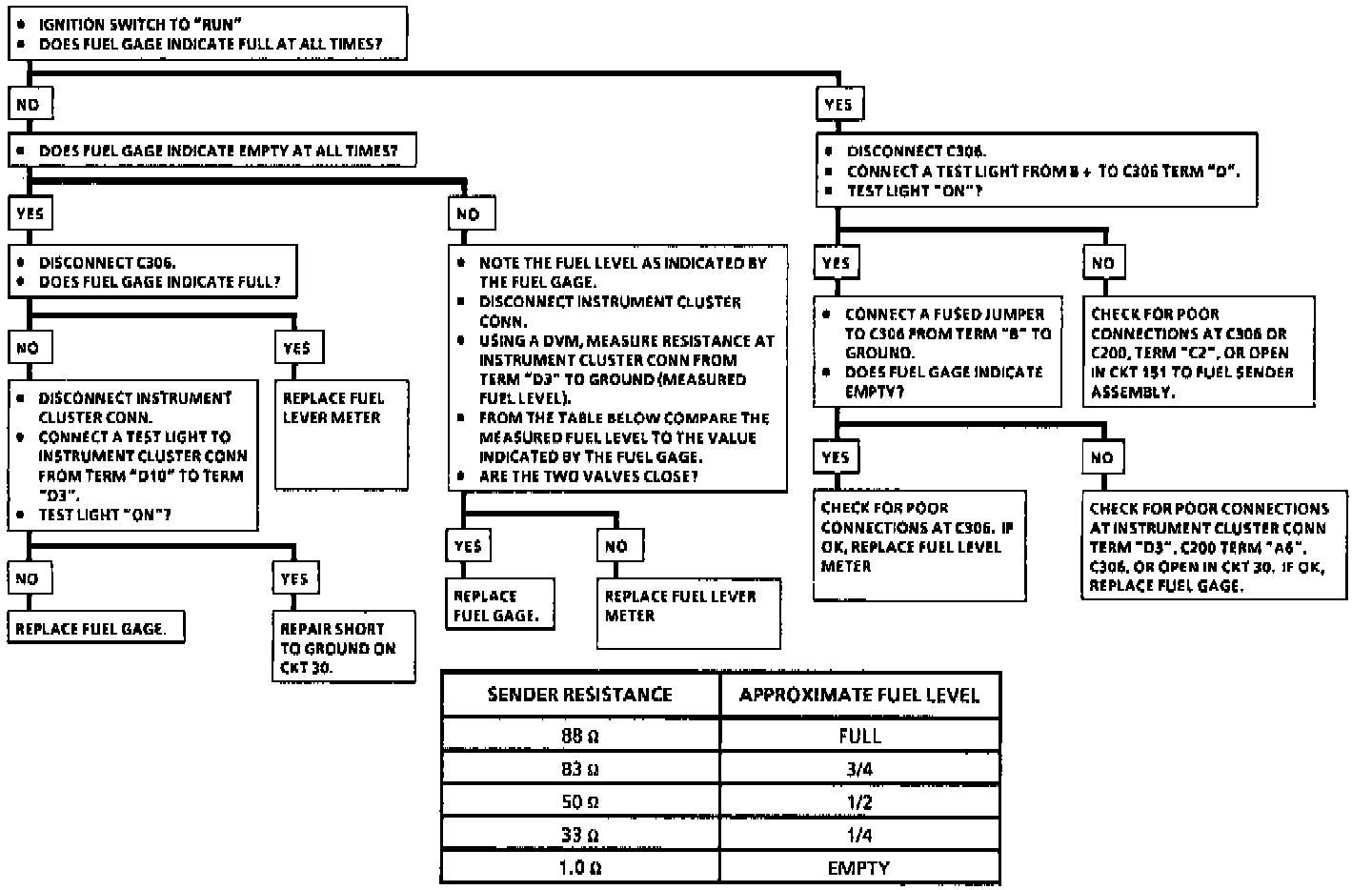

Fig. 15 Fuel Gauge Diagnosis.:






For diagnosis refer to image.
