Power, Ground & Ignition

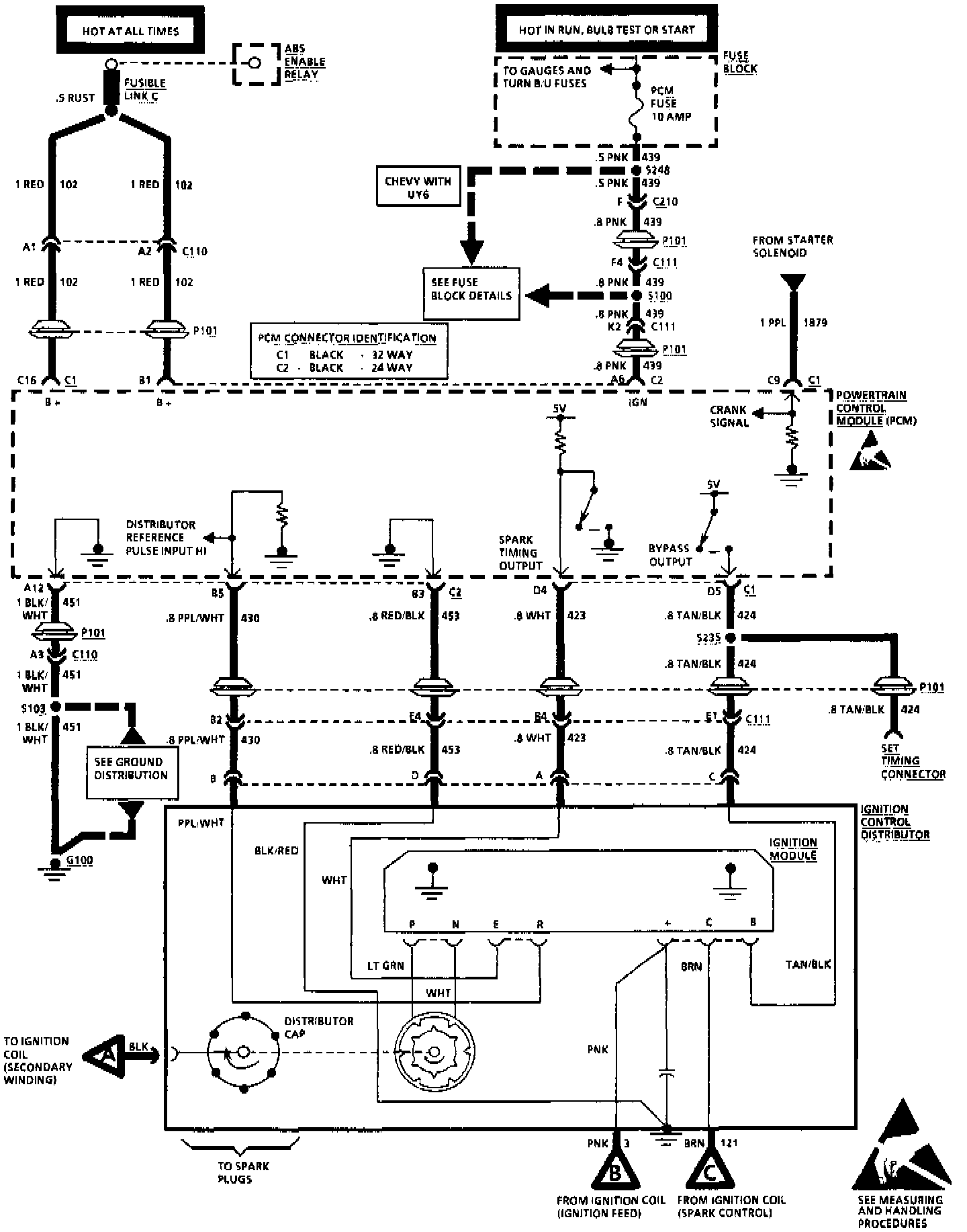

Throttle Body Injection - Power, Ground And Ignition: Part 1 Of 2:



Throttle Body Injection - Power, Ground And Ignition: Part 2 Of 2:
