Torque Converter Clutch & Position Switch, MIL

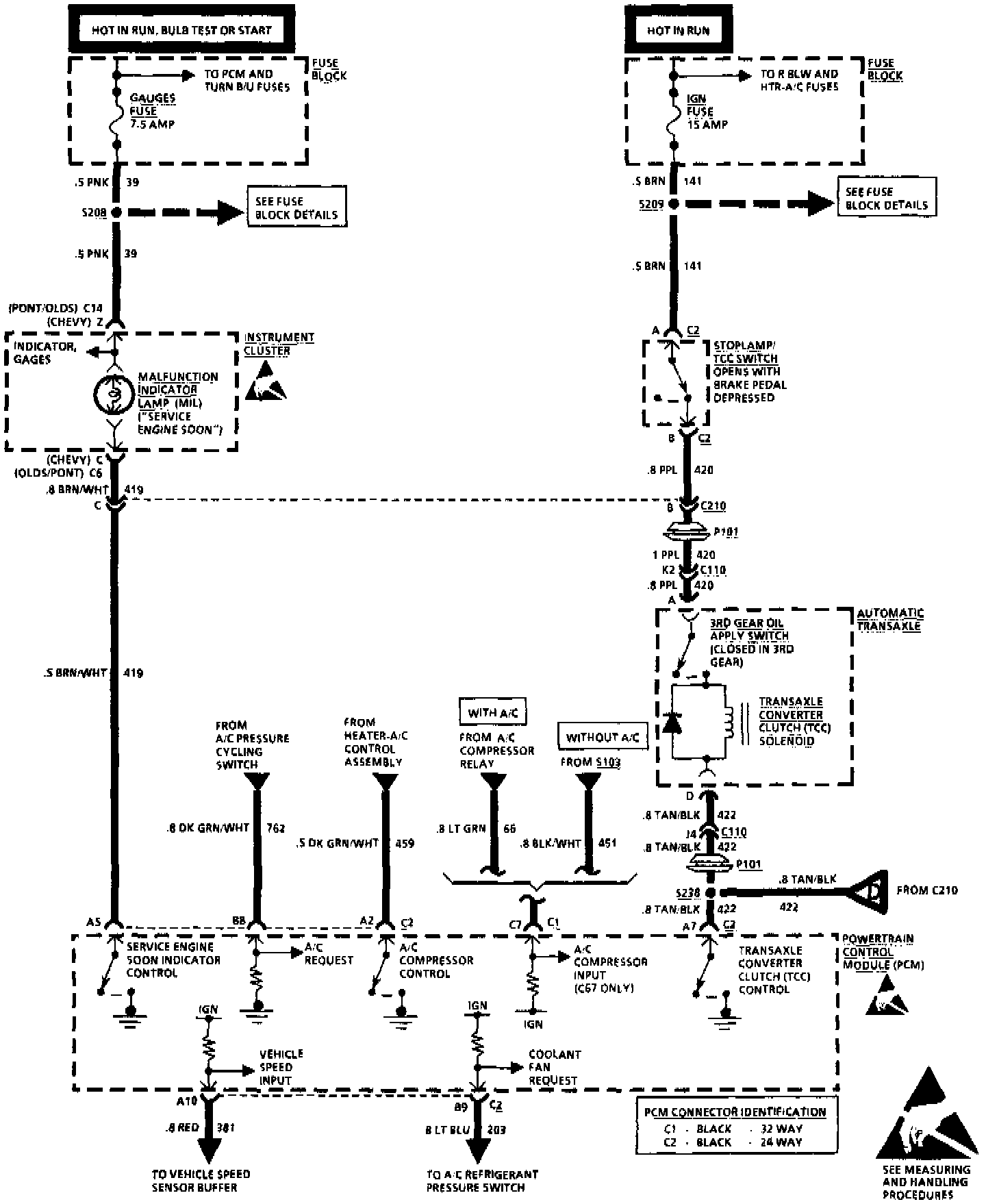

TBI - Transaxle Converter Clutch and Position Switch, MIL: Part 1 Of 2:



TBI - Transaxle Converter Clutch and Position Switch, MIL: Part 2 Of 2:
