Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1994
>>
Lumina APV V6-191 3.1L
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
Engine Control Module

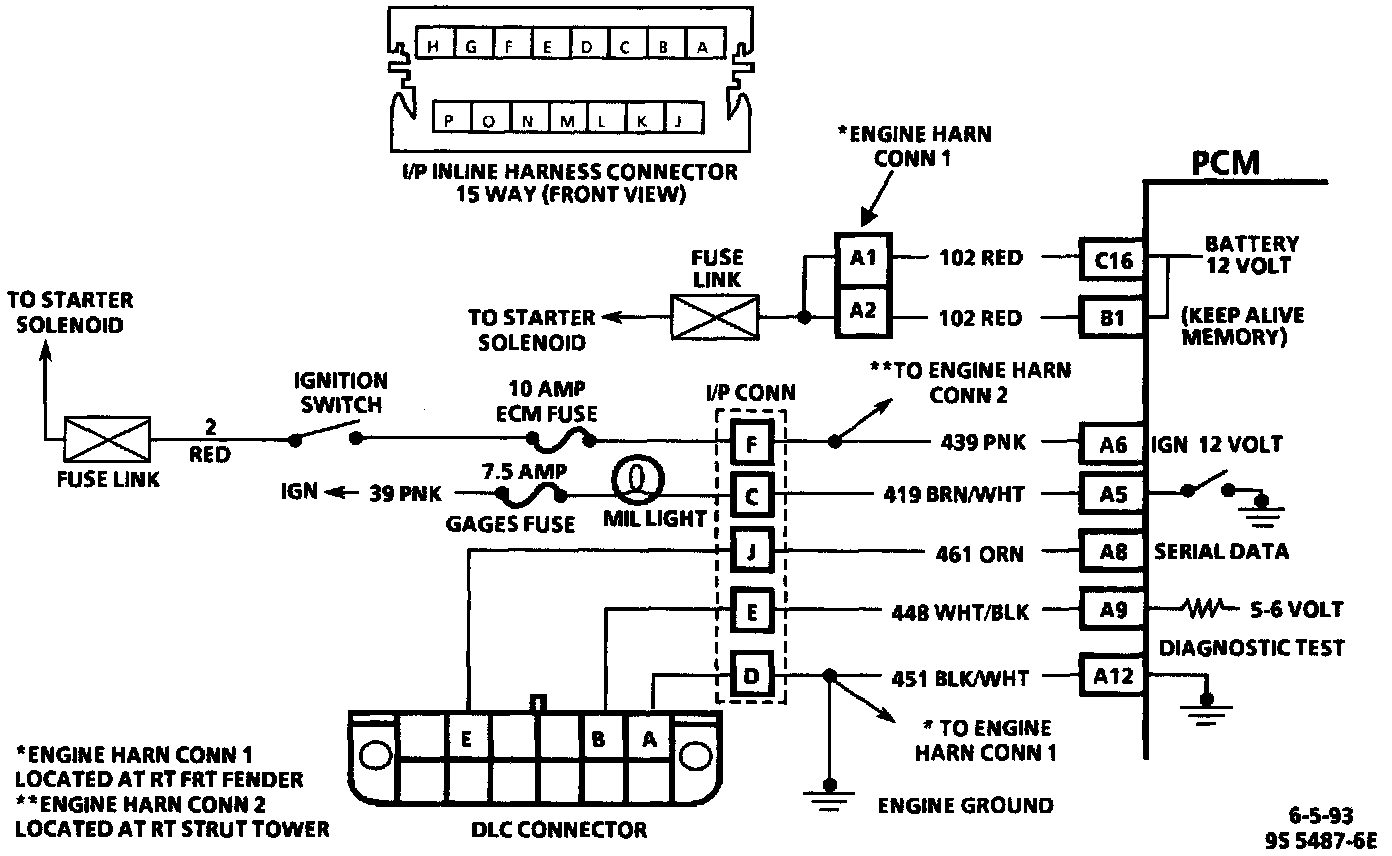

Data Link Connector Wiring Circuit:
