Engine Control Module
Engine Control Module

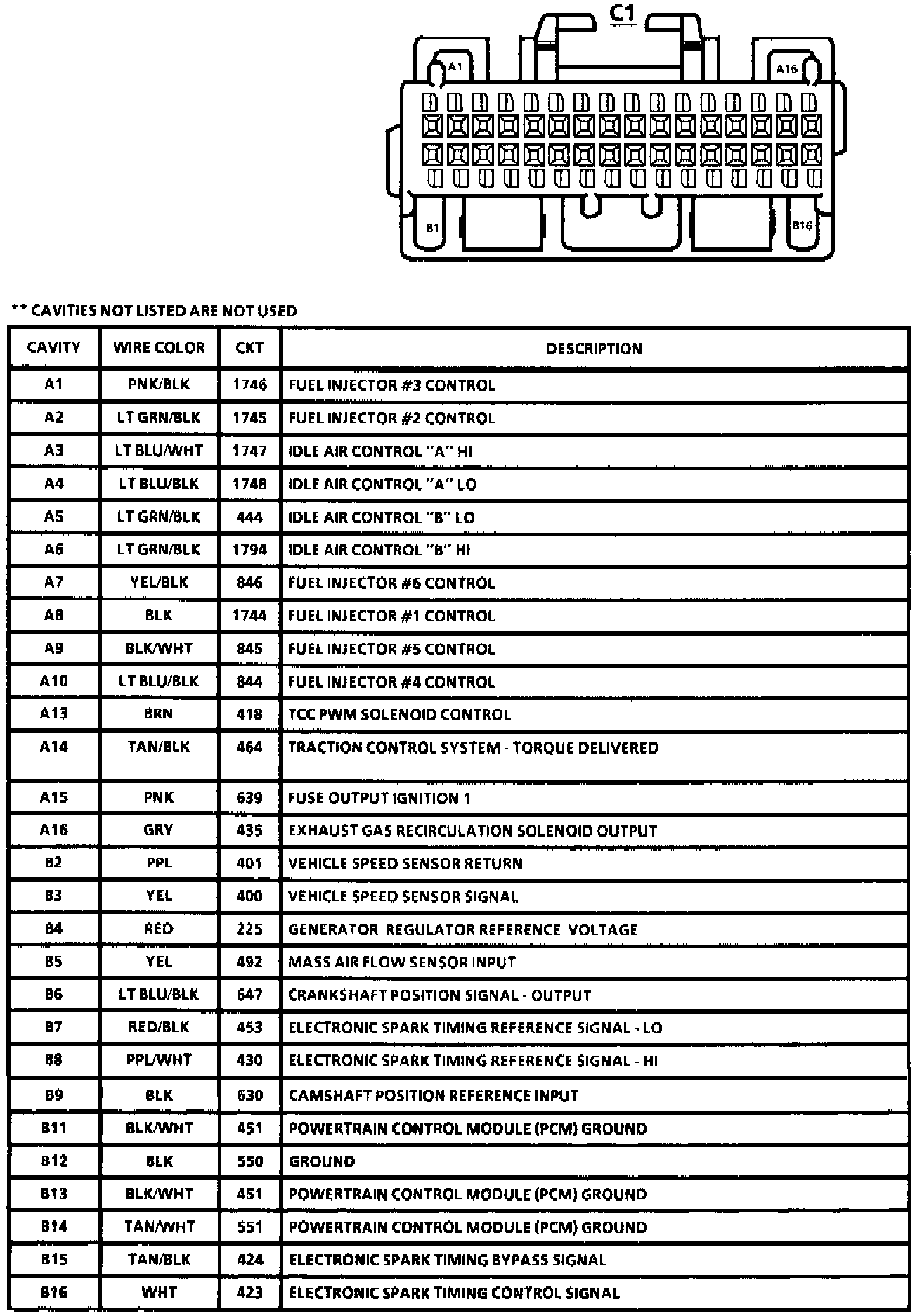

Connector C1 - 32 Way F Micro-Pack 100 Series - Red Connector:
Connector C2 - 32-Way F Micro-Pack 100 Series - White:

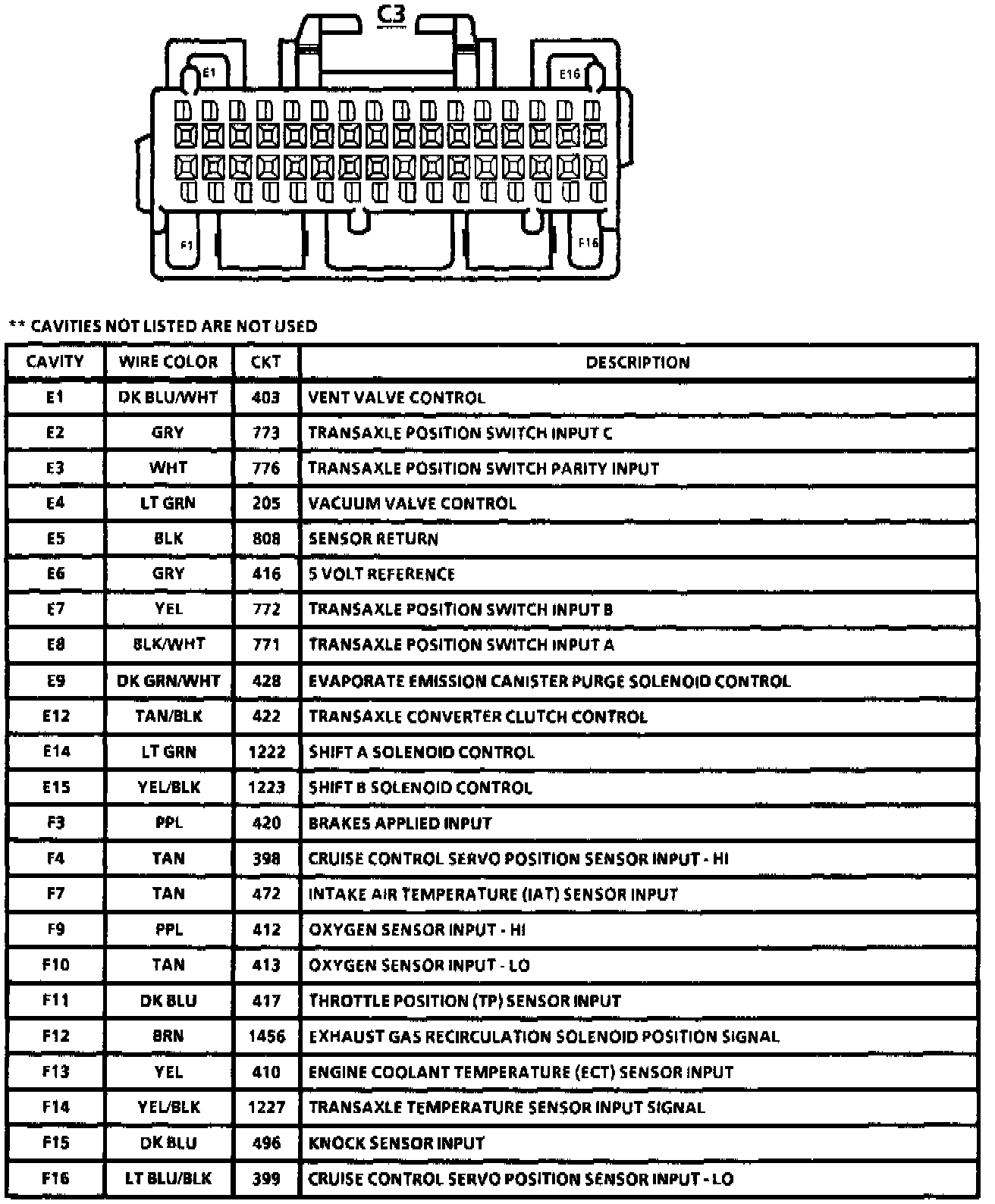

Connector C3 - 32 Way F Micro-Pack 100 Series - Blue:
