Cruise Control
Cruise Control

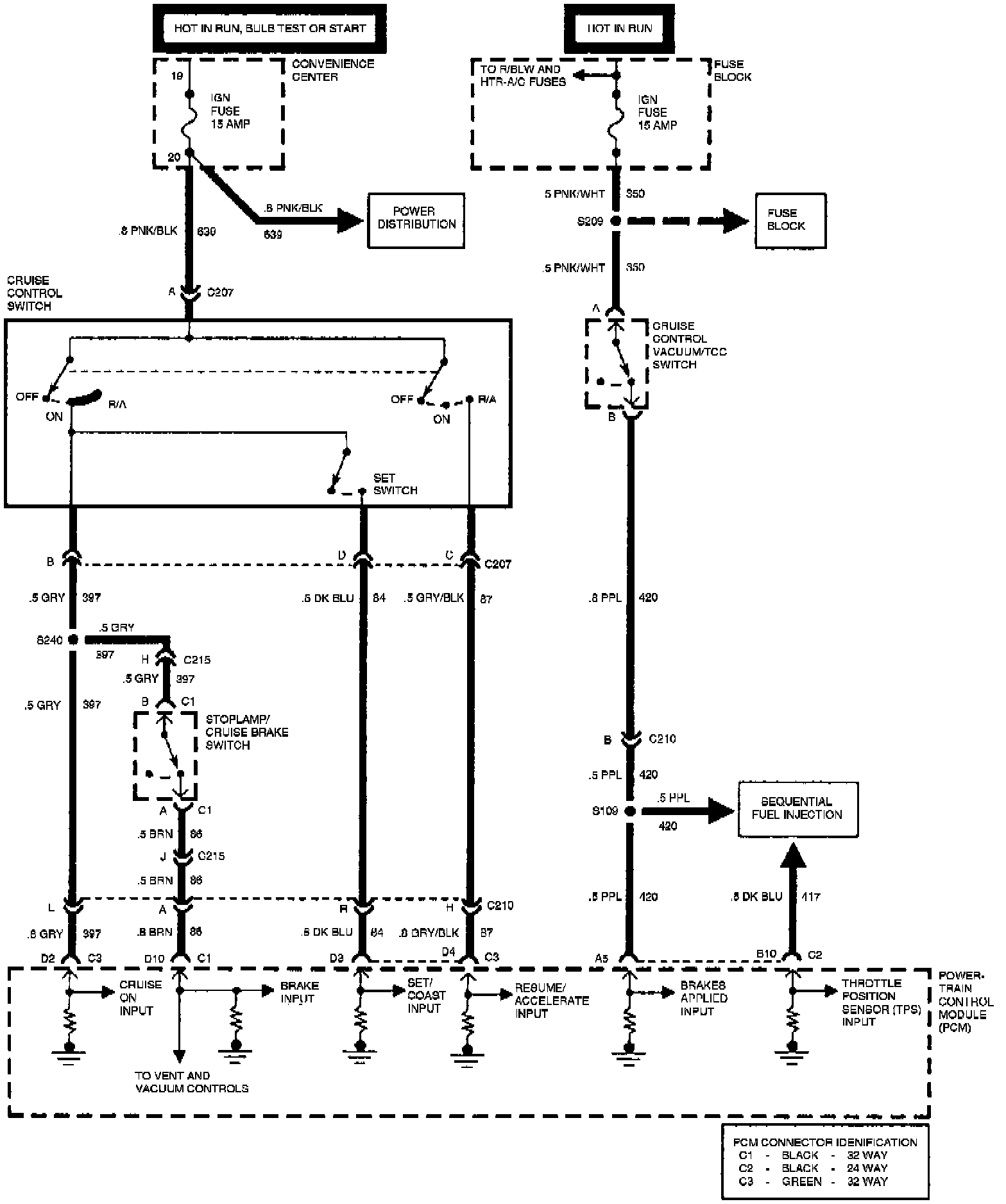

Fig. 32 Cruise Control Wiring Diagram (Part 1 Of 2).:

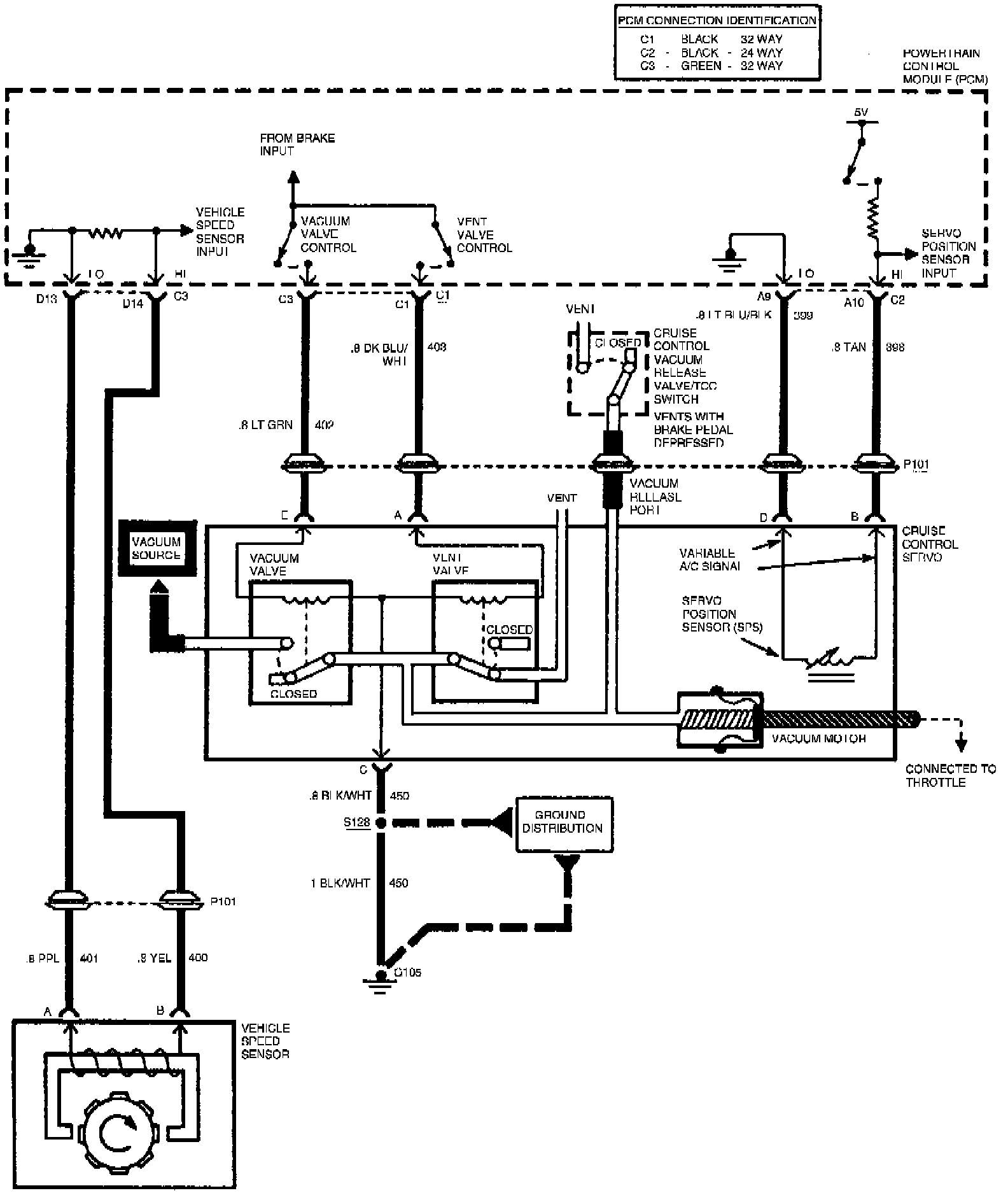

Fig. 32 Cruise Control Wiring Diagram (Part 2 Of 2).:
