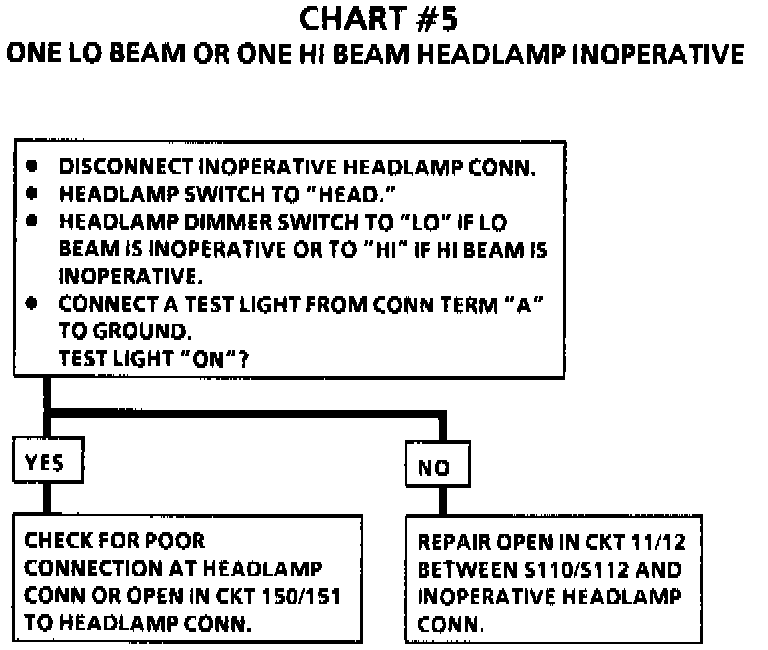

Chart #5b One LOW Beam or One HIGH Beam Headlight Inoperative
Chart #5b One LOW Beam or One HIGH Beam Headlight Inoperative
Chart Number 5:
