Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1994
>>
Lumina APV V6-3800 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Control & Idle Air Control (IAC)
Fuel Control & Idle Air Control (IAC)

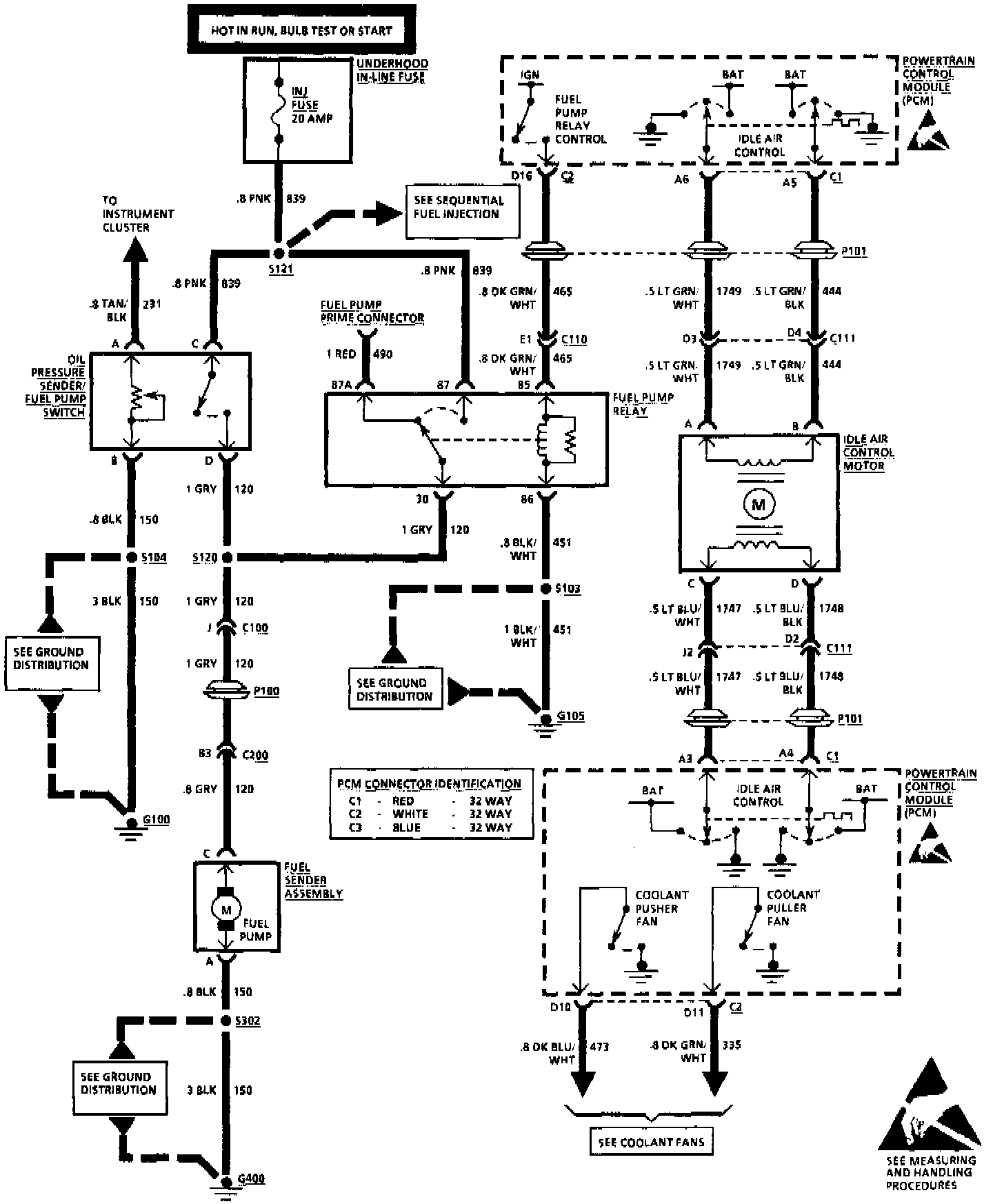

SFI: Fuel Control And Idle Air Control:
