Positive Crankcase Ventilation: Service and Repair

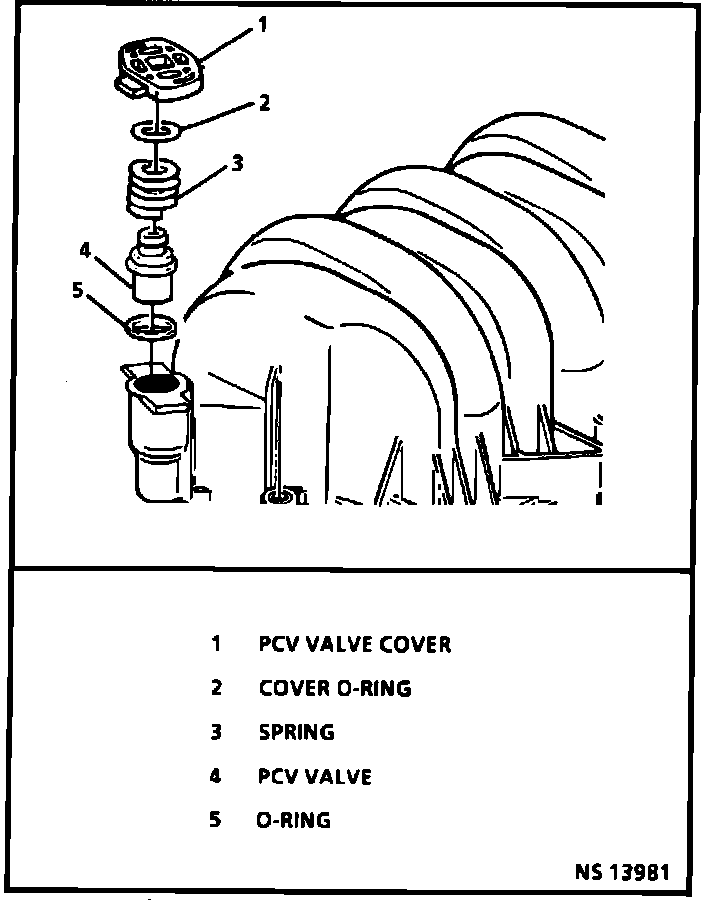

PCV Valve Installation:

1. Remove PCV valve cover plate fastening bolts.
2. Remove cover plate and gasket.
3. Remove spring, PCV valve, and O-ring.
4. Clean old gasket material from surfaces and install new valve in reverse order.
