Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
System Diagram

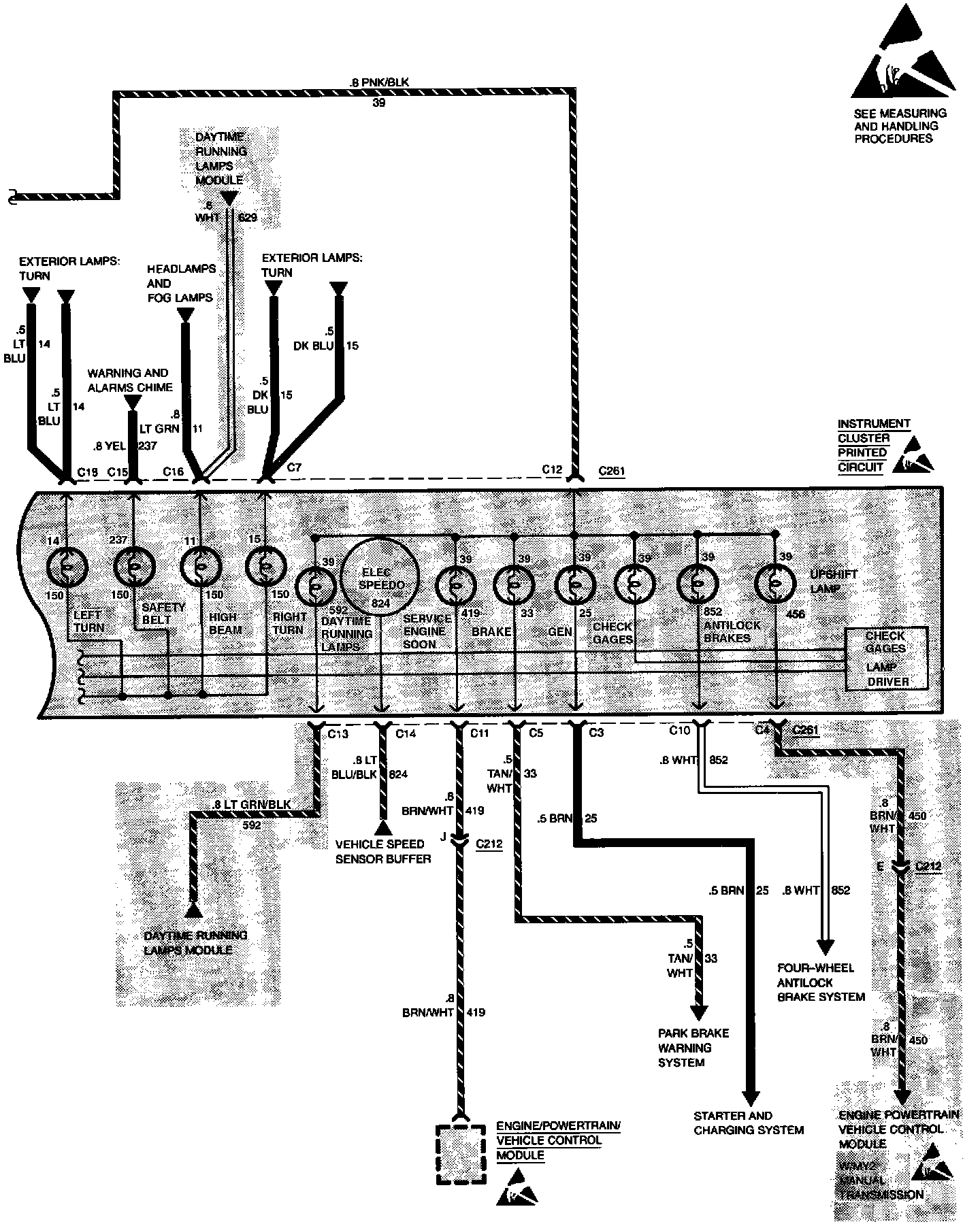

Instrument Panel (Part 1 Of 4):

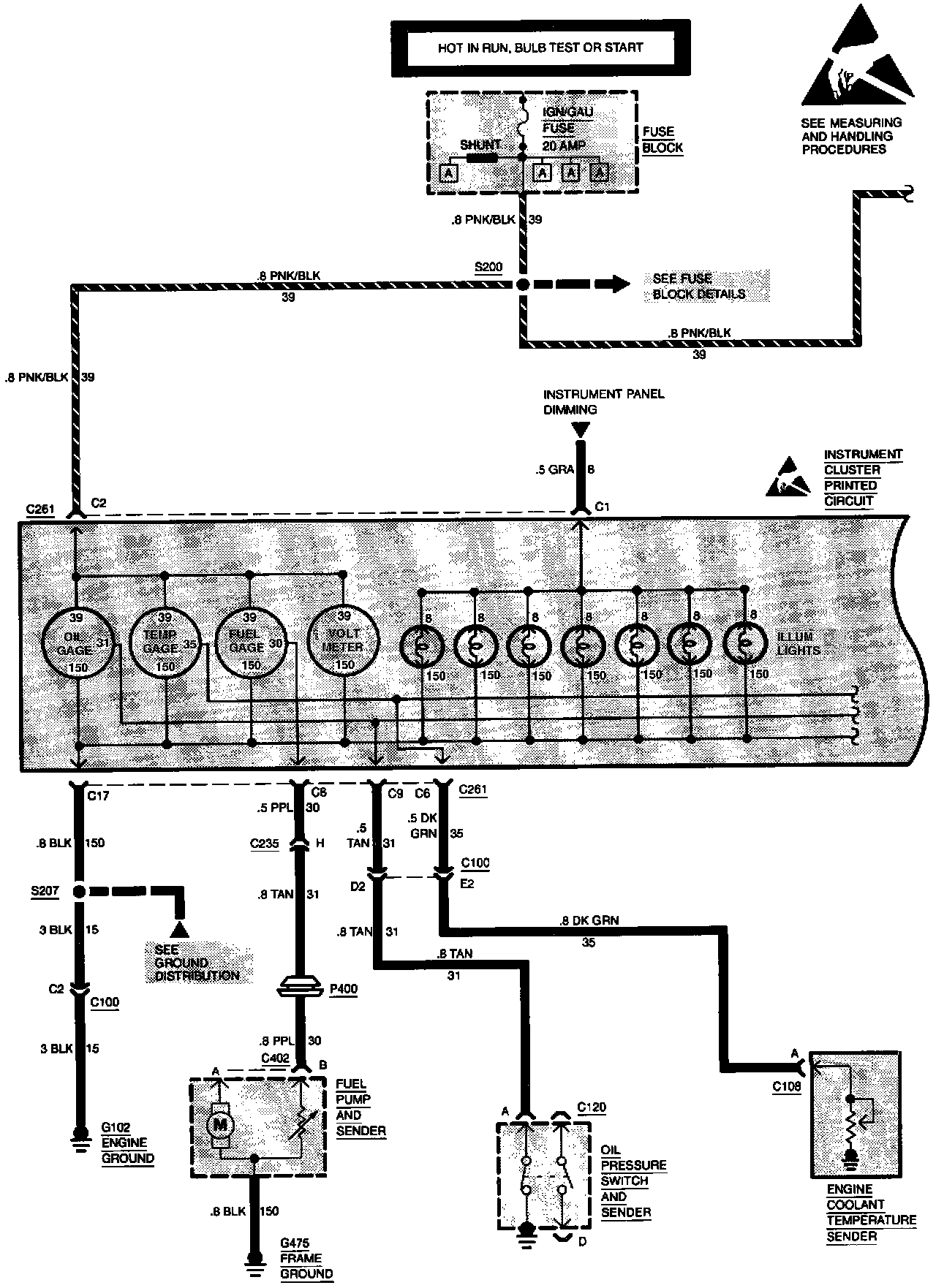

Instrument Panel (Part 2 Of 4):

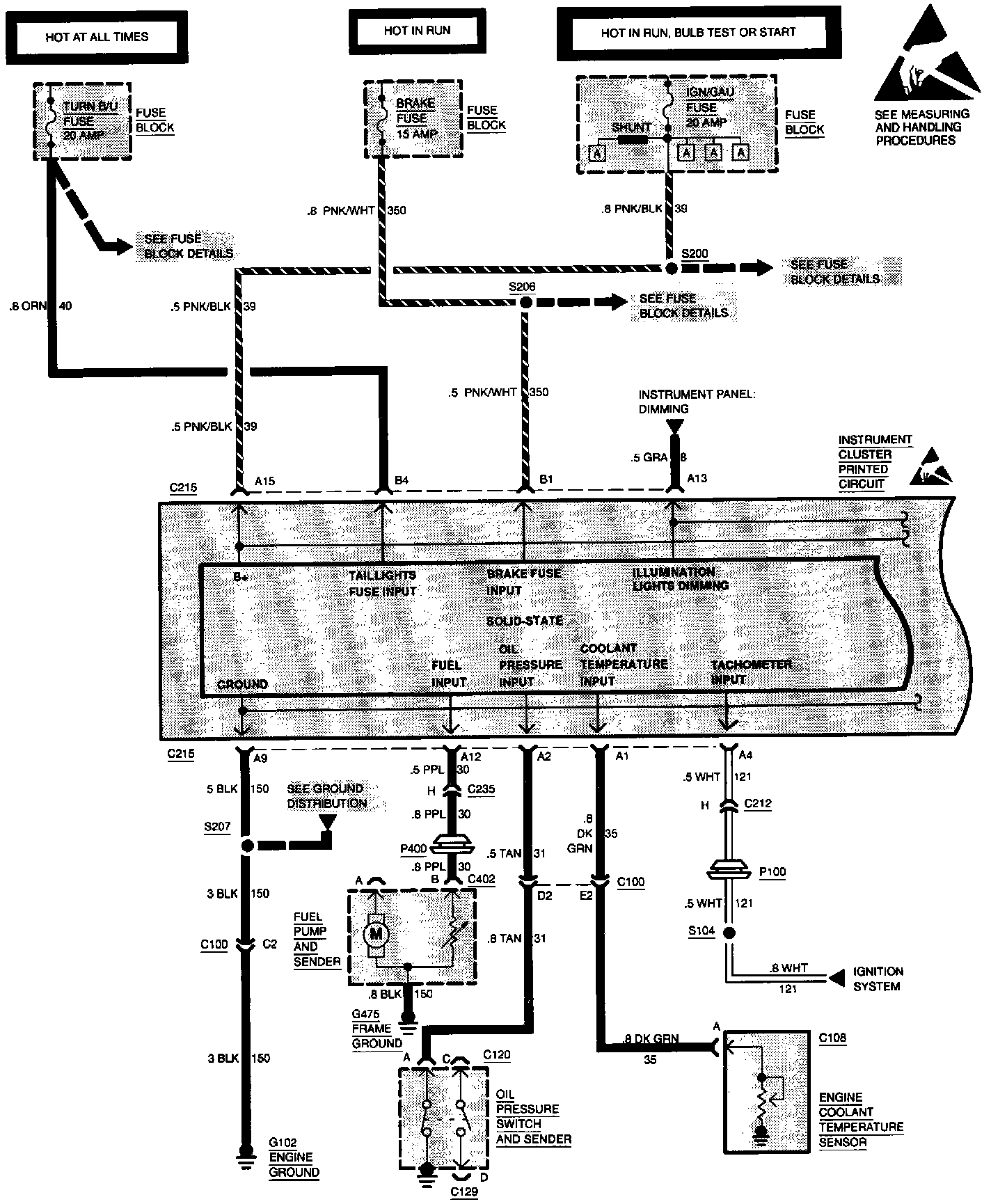

Instrument Panel (Part 3 Of 4):
Instrument Panel (Part 4 Of 4):
