S10/T10 Blazer 2WD V6-262 4.3L VIN Z
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

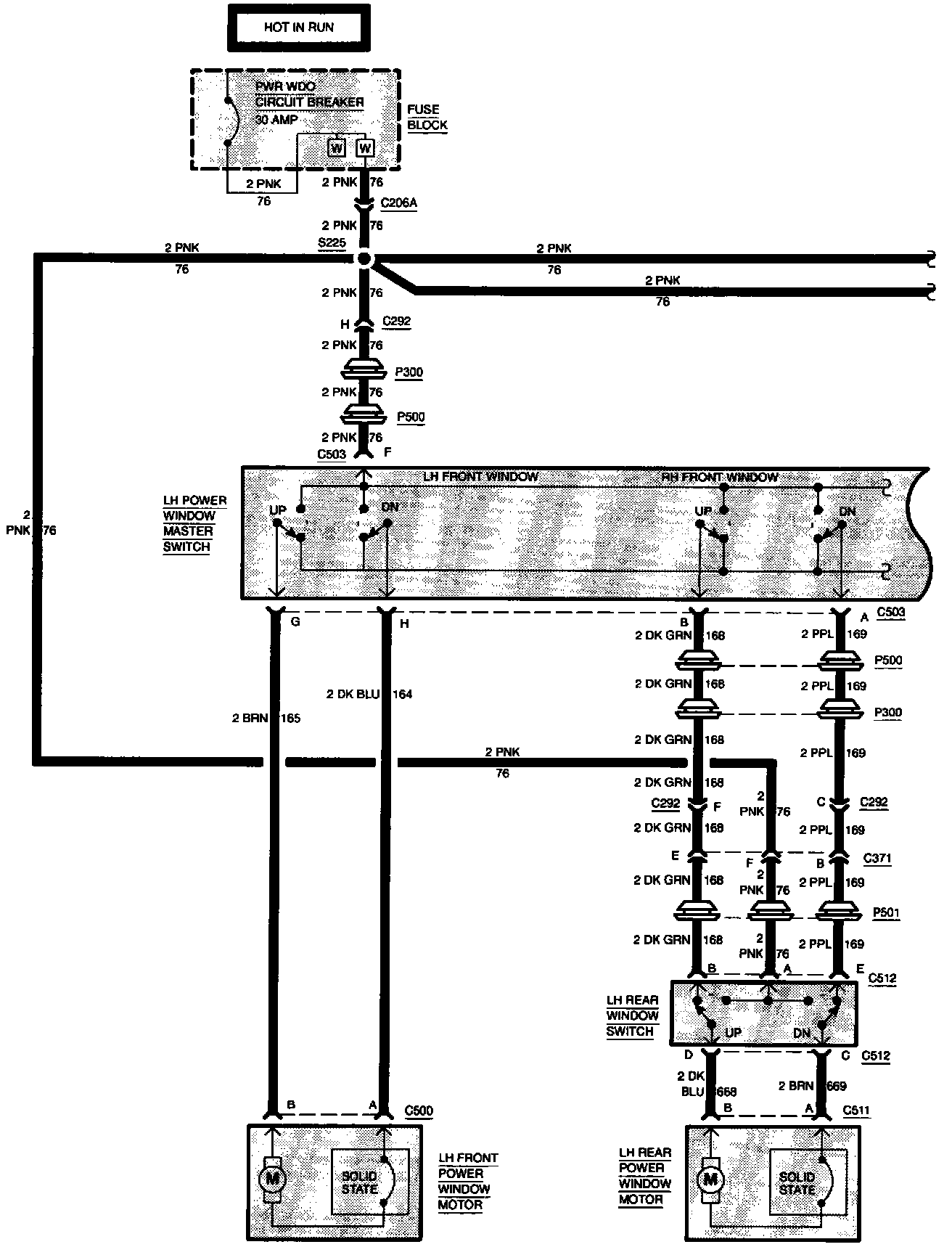

Power Windows-4 Door (Part 1 Of 3):

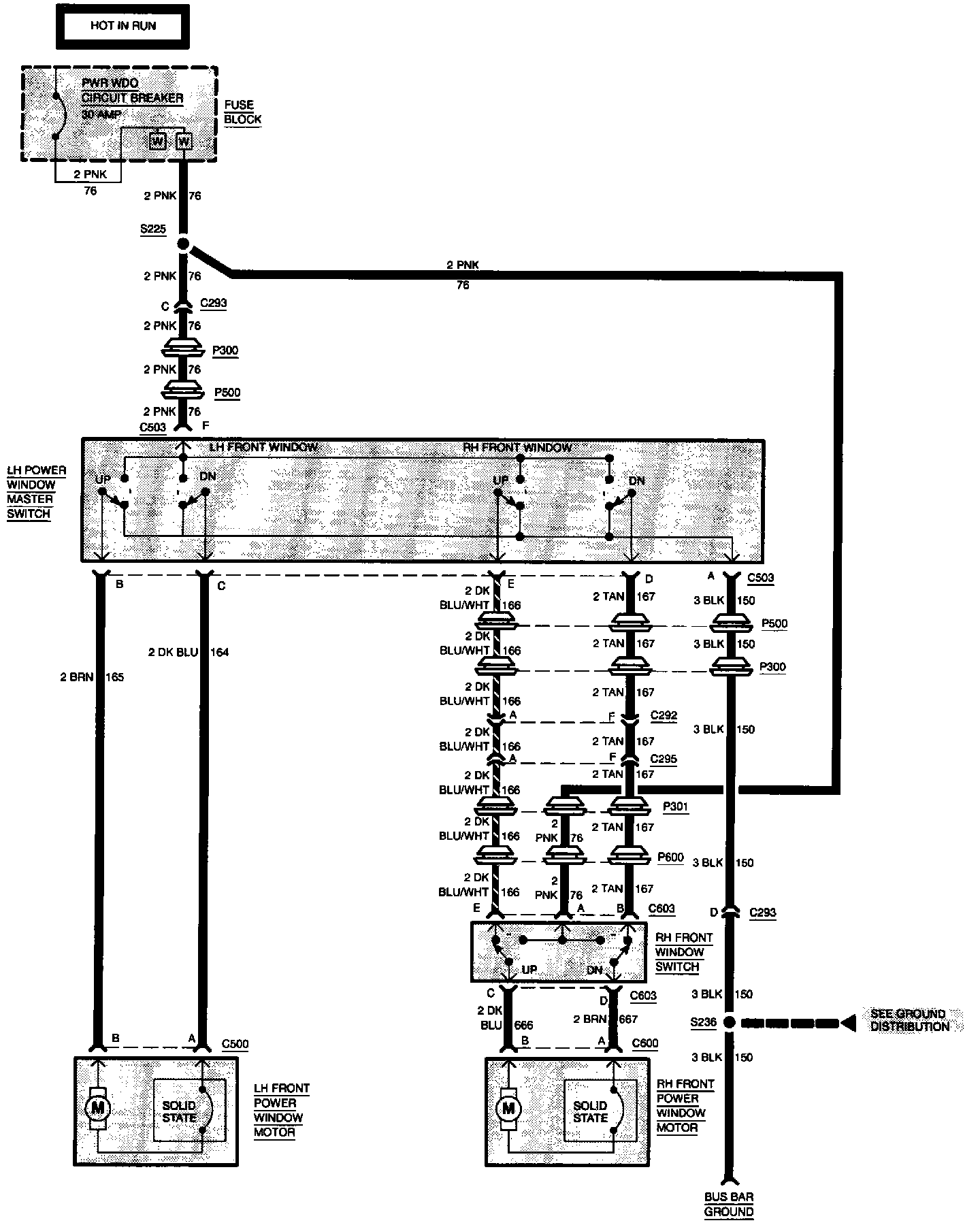

Power Windows-4 Door (Part 2 Of 3):
Power Windows-4 Door (Part 3 Of 3):
