S10/T10 Blazer 4WD V6-262 4.3L VIN Z
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Charts
>>
With Clutch Cycling Orifice Tube (CCOT)
>>
Chart E
Chart E

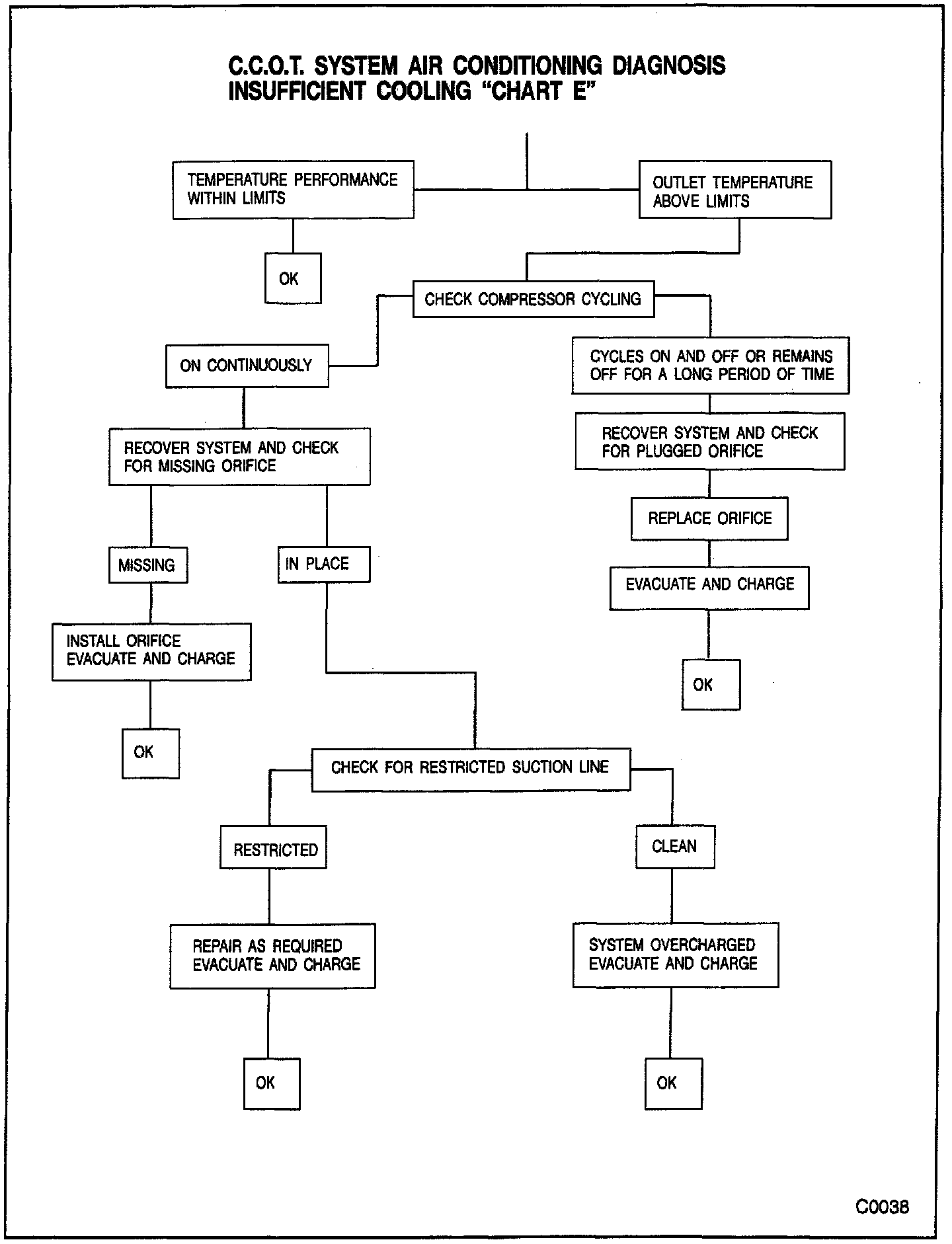

CCOT Air Conditioning System Diagnosis Procedure (5 Of 5):
