Home >> Chevy Truck >> 1994 >> S10/T10 P/U 2WD L4-134 2.2L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 02

DTC 02

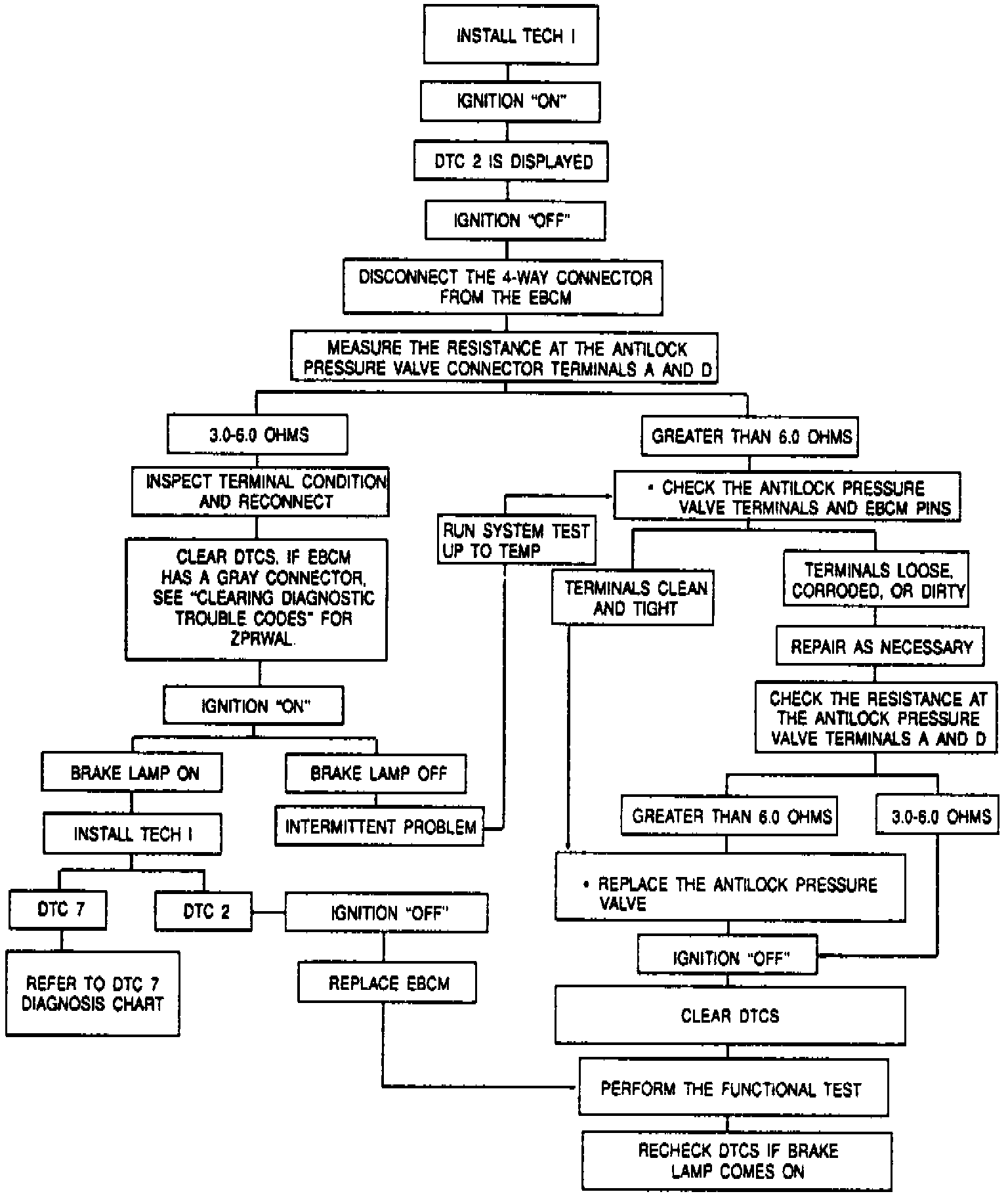

Fig. 40 Code 2: Open Isolation Valve OR EBCM Malfunction:
