Antilock Braking System (ABS) - VCM/Four Wheel ABS (VCM/4WAL)

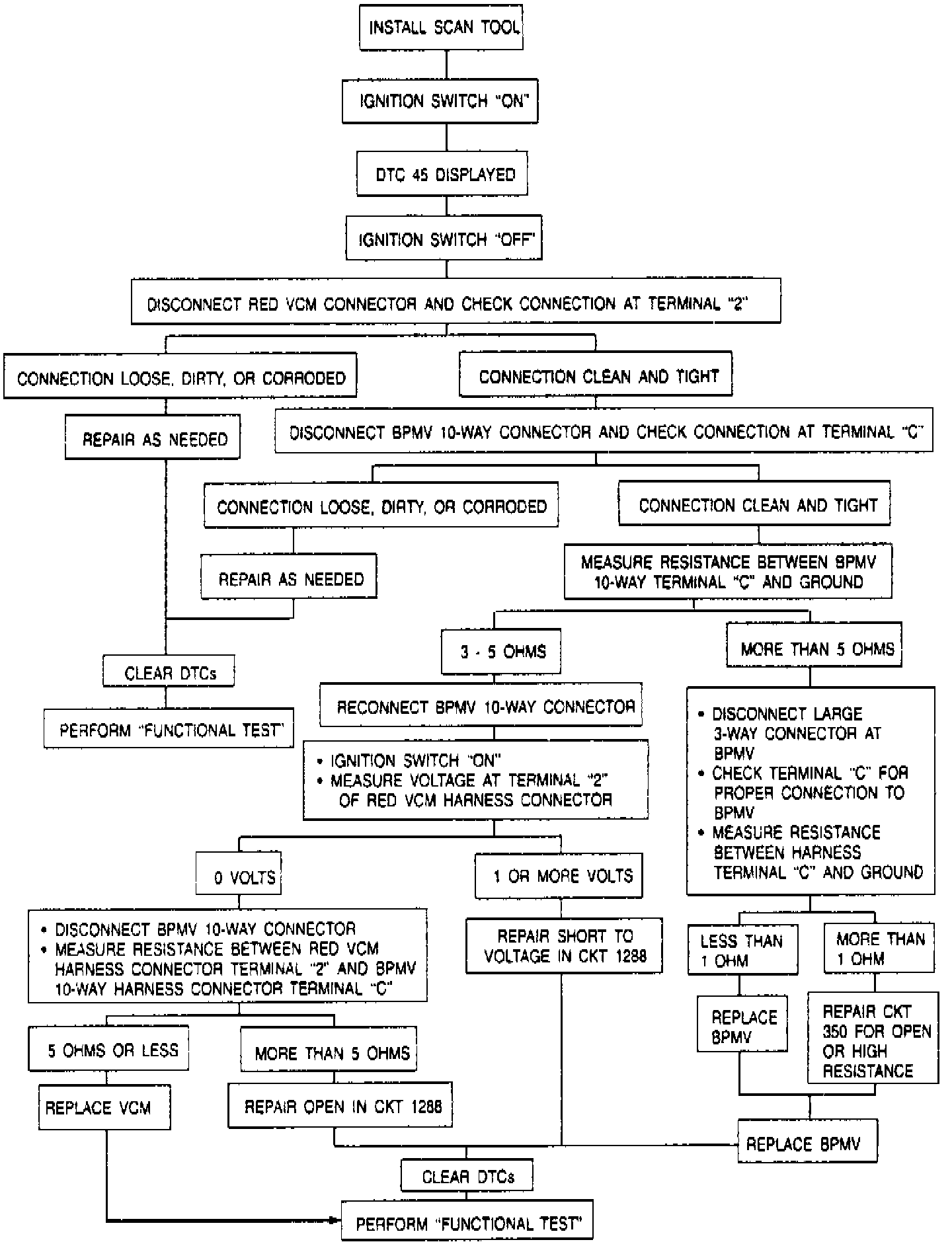

Fig. 131 Code 45: Left Front Isolation Solenoid Or Circuit Open:






Vehicles with Manual Transmission ONLY. With Automatic Transmission refer to Four Wheel Antilock Brake System (4WAL)
