S10/T10 P/U 2WD V6-262 4.3L VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Doors
>>
Crossbody to RH Door In-Line
Crossbody to RH Door In-Line

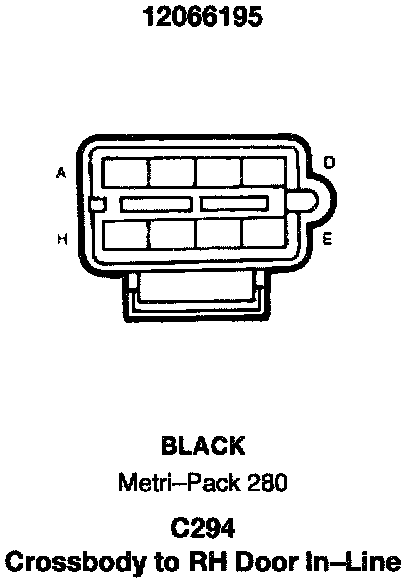

C294 - Crossbody To RH Door In-Line:

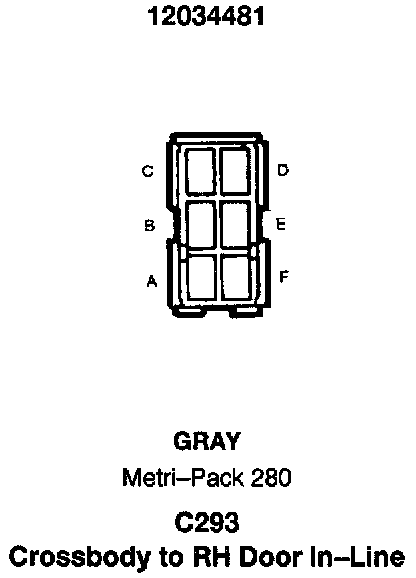

C293 - Crossbody To RH Door In-Line:
