Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1994
>>
S10/T10 P/U 2WD V6-262 4.3L VIN Z
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Charts
>>
With Clutch Cycling Orifice Tube (CCOT)
>>

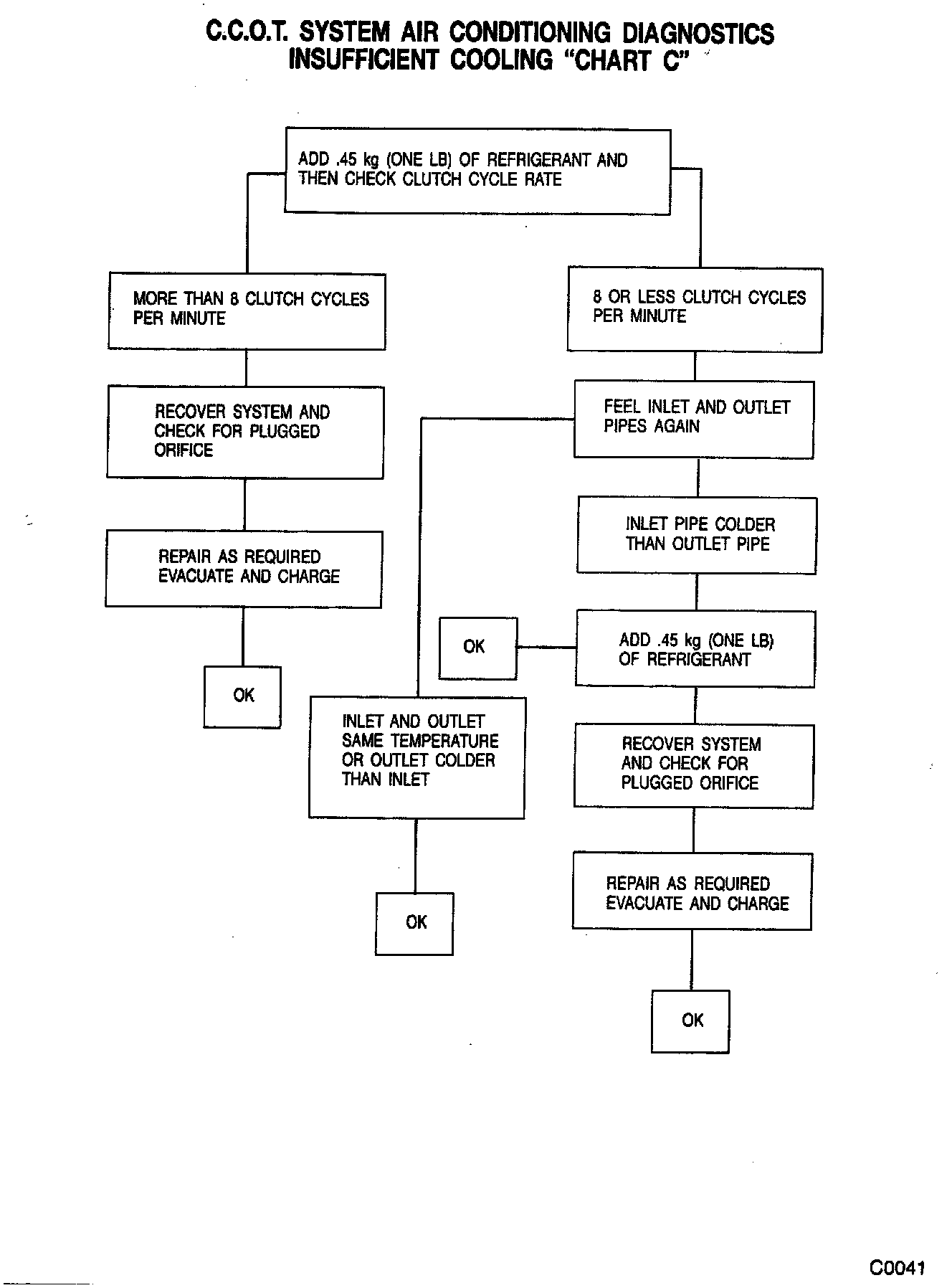

Chart C
Chart C
CCOT Air Conditioning System Diagnosis Procedure (3 Of 5):
