In-Line I/P to Turn/Hazard Switch
In-Line I/P to Turn/Hazard Switch
C204 - In-Line I/P To Turn/Hazard Switch:

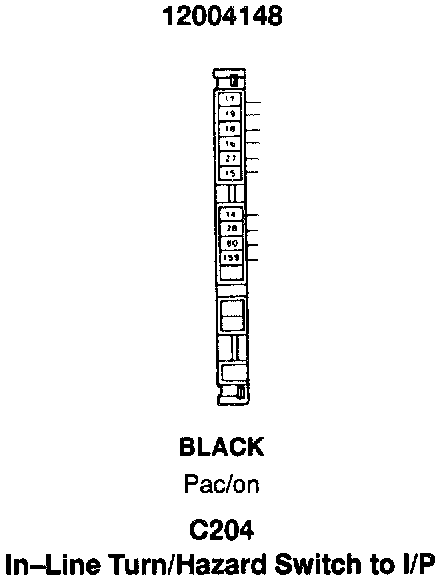

C204 - In-Line Turn/Hazard Switch To I/P:

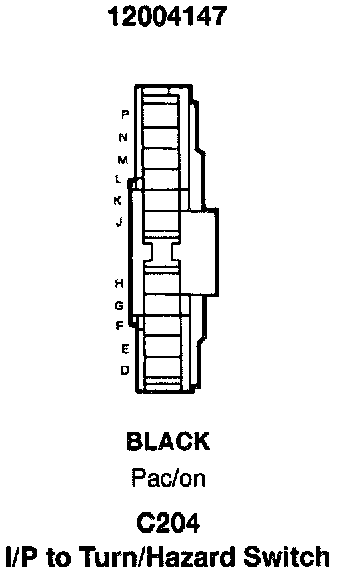

C204 - I/P To Turn/Hazard Switch:
