Data Link Connector (DLC)
Data Link Connector (DLC)

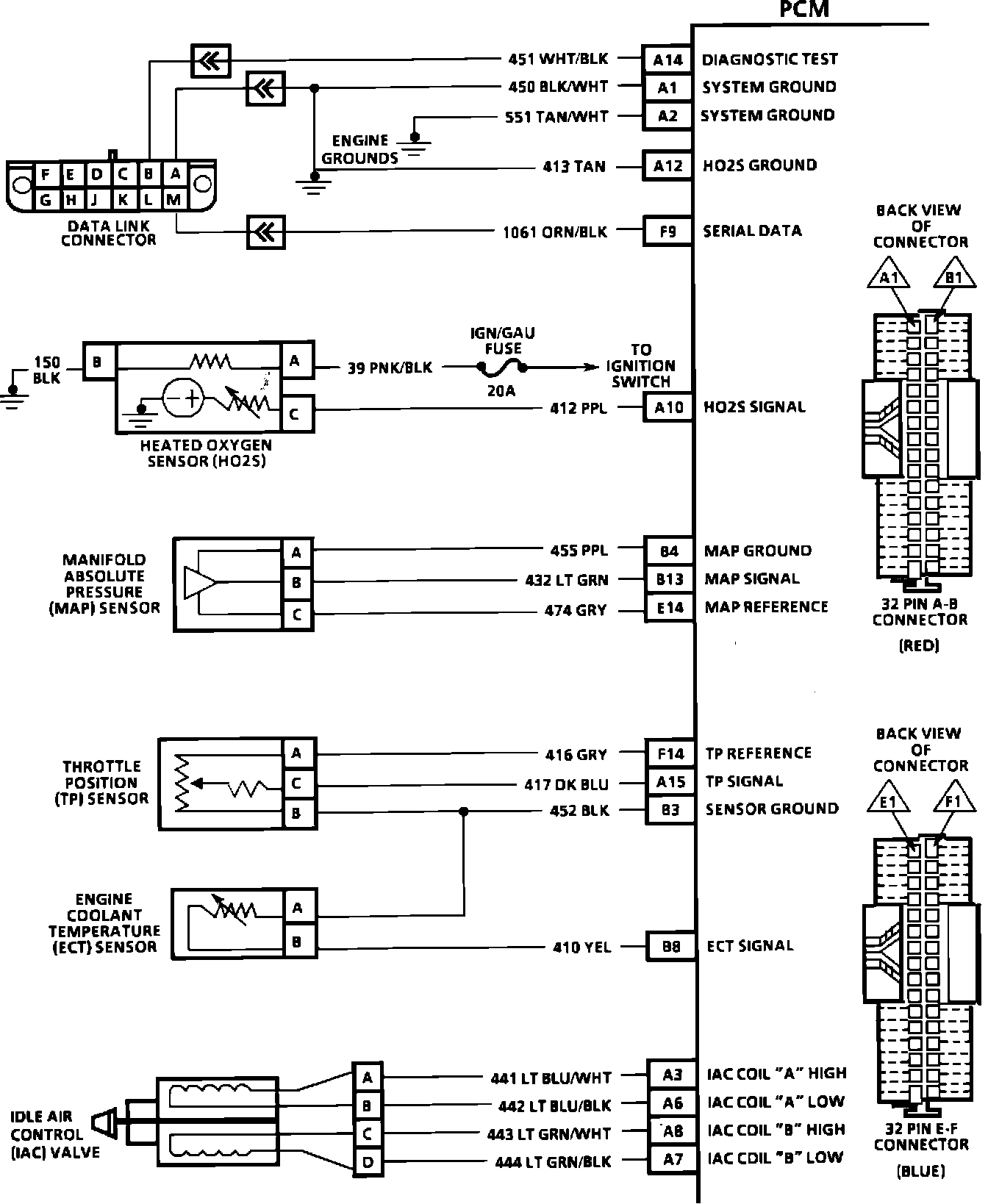

PCM Wiring Diagram - 4.3Z "S/T" P/UP Auto Trans. (1 Of 5):
PCM Wiring Diagram - 4.3Z "S/T" Utility Manual Trans. (1 Of 3):
