Blower Motor Relay: Locations

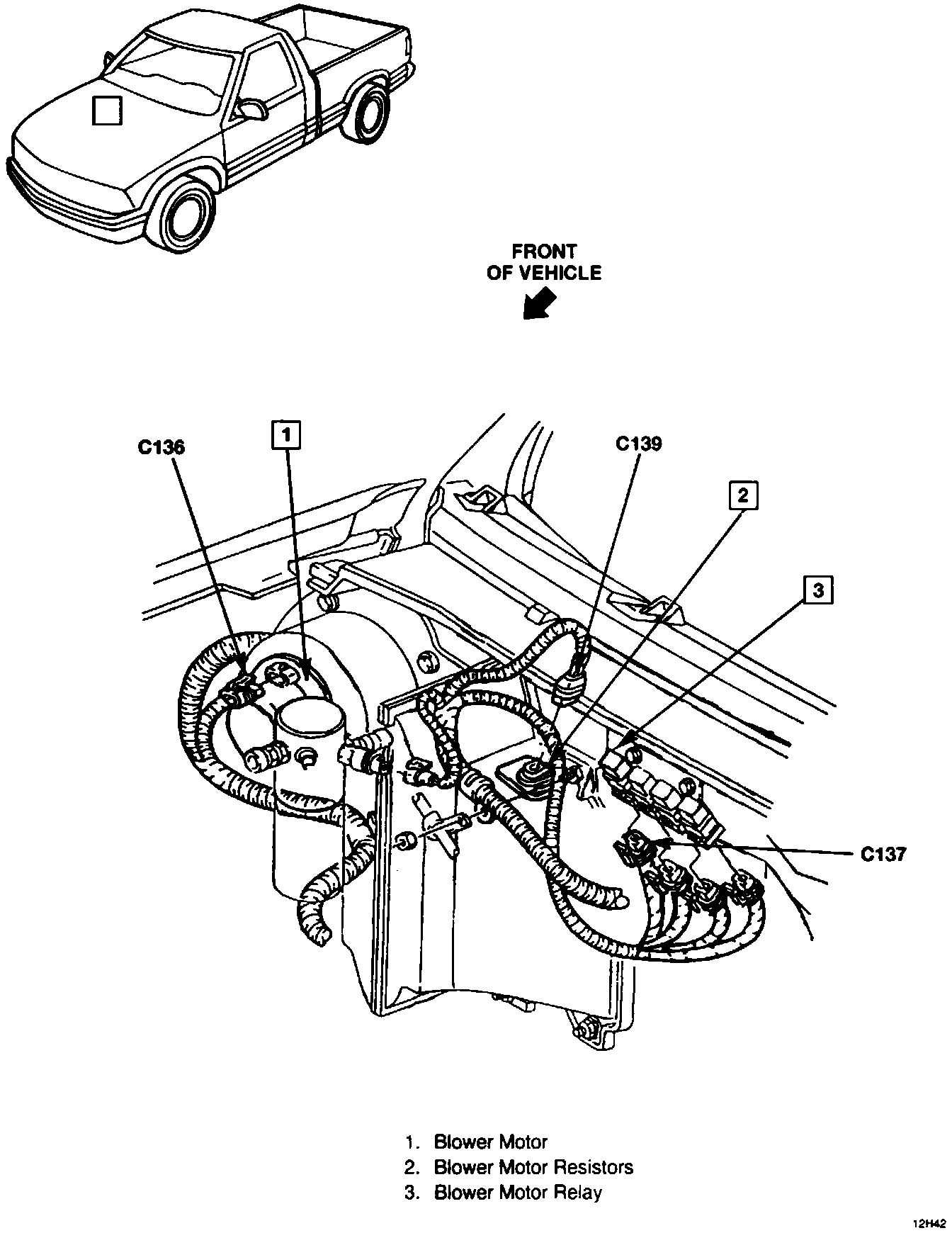

Engine Compartment Wiring, RH Side (With A/C Shown Other Similar):



Relay Bracket:
