Chevy Truck
>>
1994
>>
S10/T10 P/U 4WD V6-262 4.3L VIN W CPI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Locations
>>

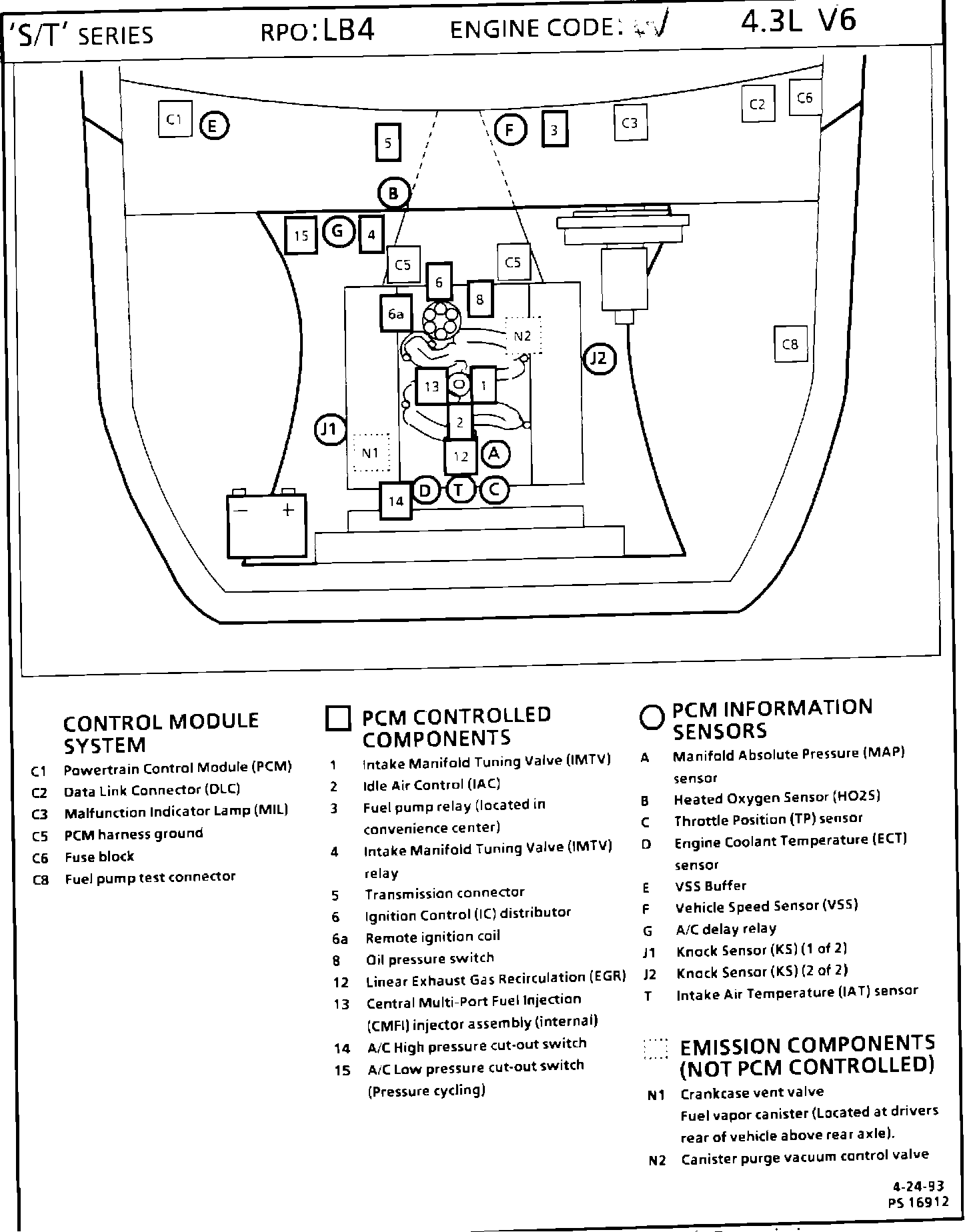

Underhood Block Diagram
Underhood Block Diagram
Component Locations PUP Auto. Trans.:
