Exterior Lamps - Component Location Chart Revised
File In Section: 8 - Chassis/Body ElectricalBulletin No.: 56-82-08
Date: December, 1995
SERVICE MANUAL UPDATE
Subject:
Section 8A-110 - Exterior Lamps - Revised Component Location Chart
Models:
1994 Chevrolet and GMC Truck S/T Models
1994 Oldsmobile Bravada

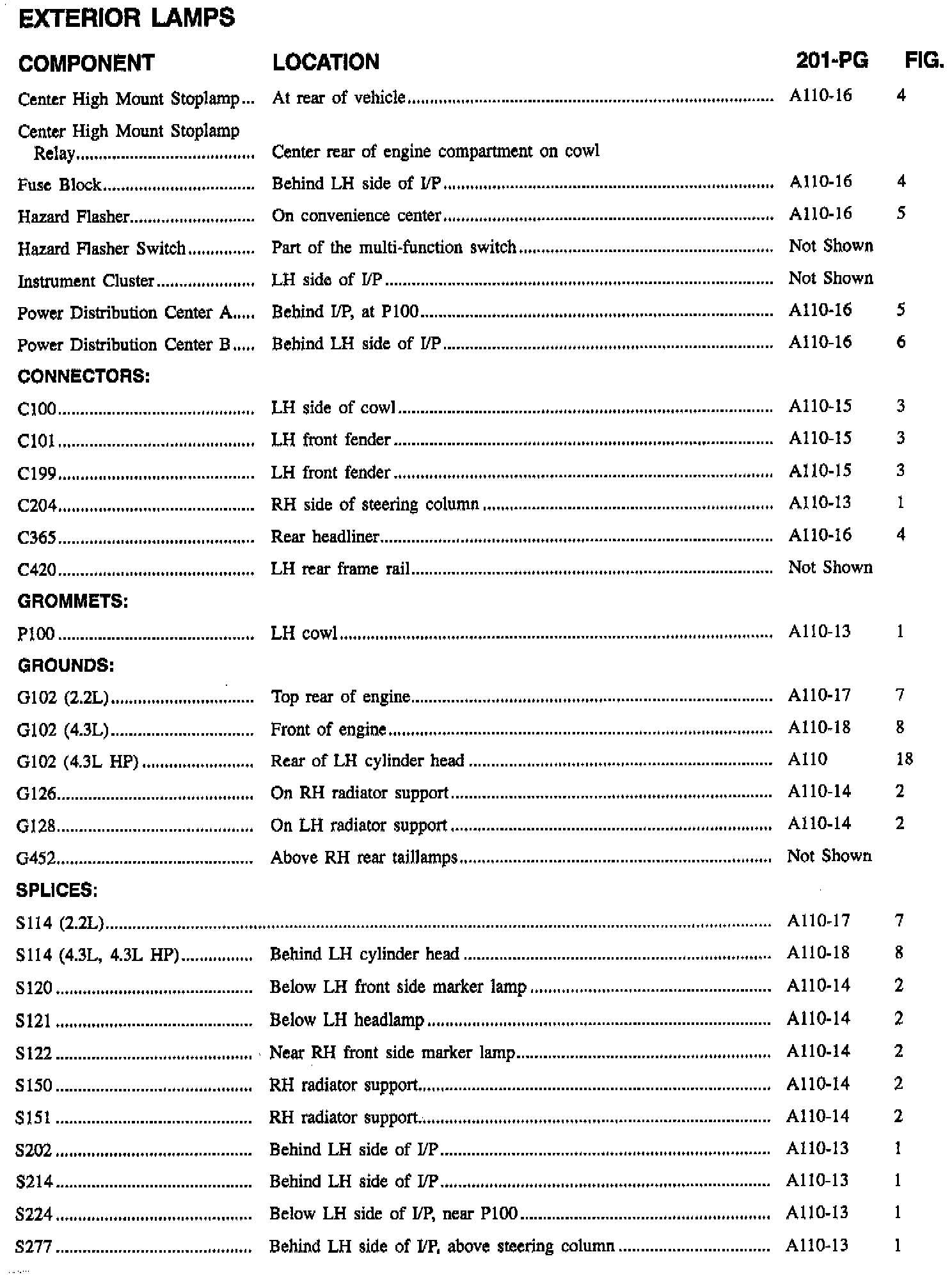

This bulletin revises the Component Location Table, on pages 8A-110-2 and 8A-110-3 of the 1994 S/T Service Manual Book 2 Final Edition. This update was created to include Center High Mount Stoplamp Relay in the Component Location Table.
8A - 110 - 2 ELECTRICAL DIAGNOSIS
8A - 110 - 3 ELECTRICAL DIAGNOSIS
