Astro Van M V6-262 4.3L VIN W CPI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
A/C Compressor
A/C Compressor

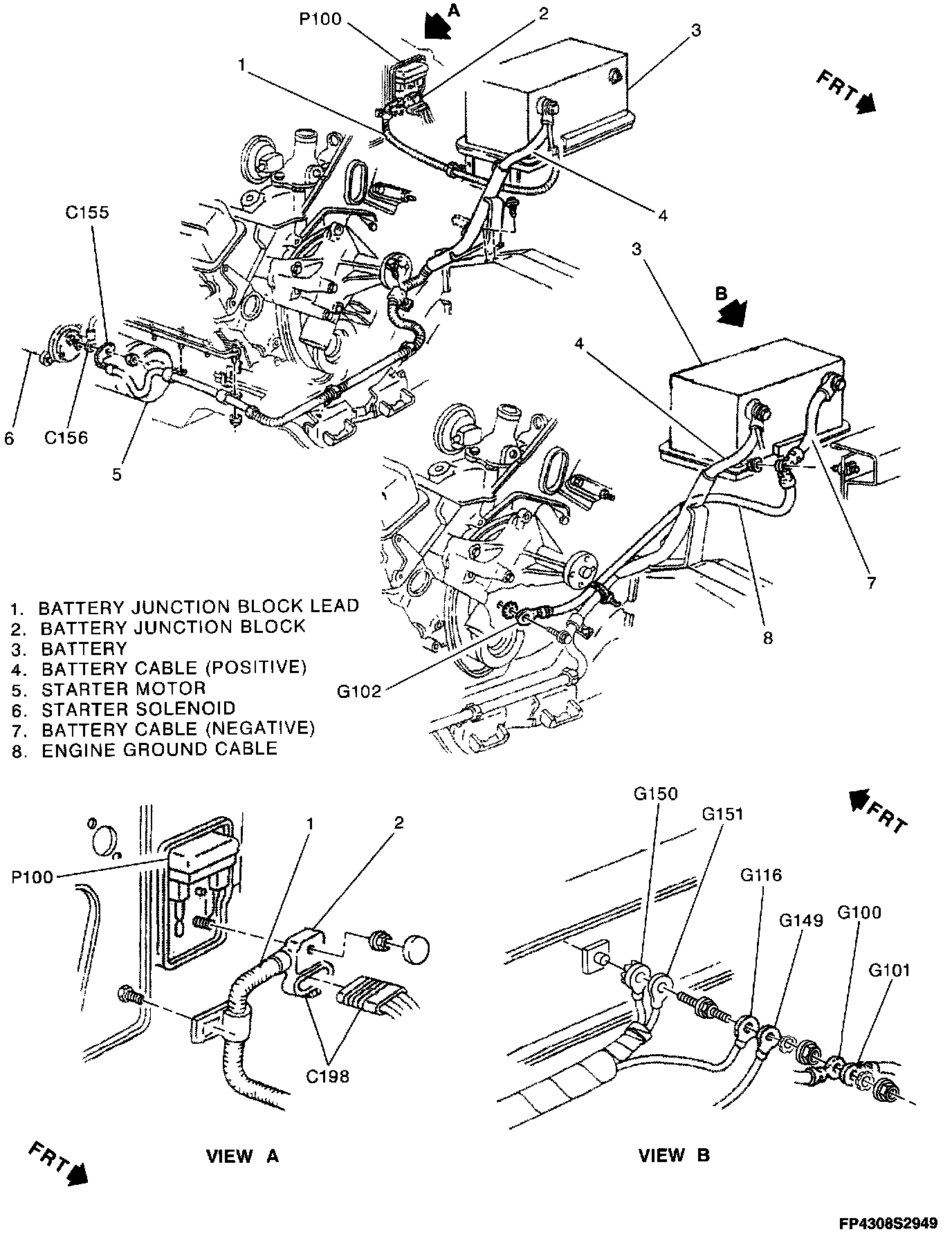

Engine Wiring, RH Side:
Engine Wiring, Battery, And Leads:
