Horn and Radio - Electrical Schematic Revisions
File In Section: 8 - Chassis/Body ElectricalBulletin No.: 66-81-06
Date: September, 1996
SERVICE MANUAL UPDATE
Subject:

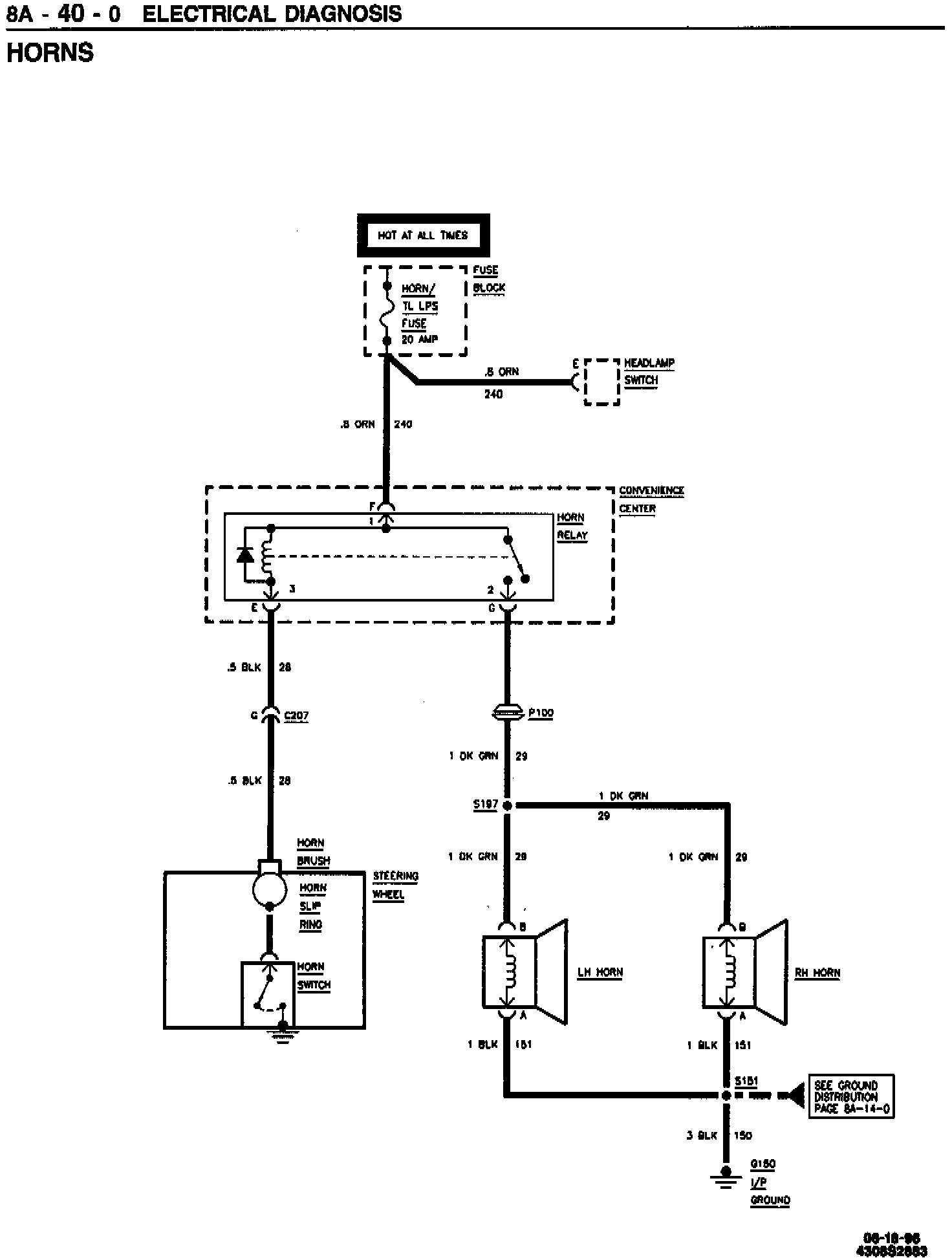

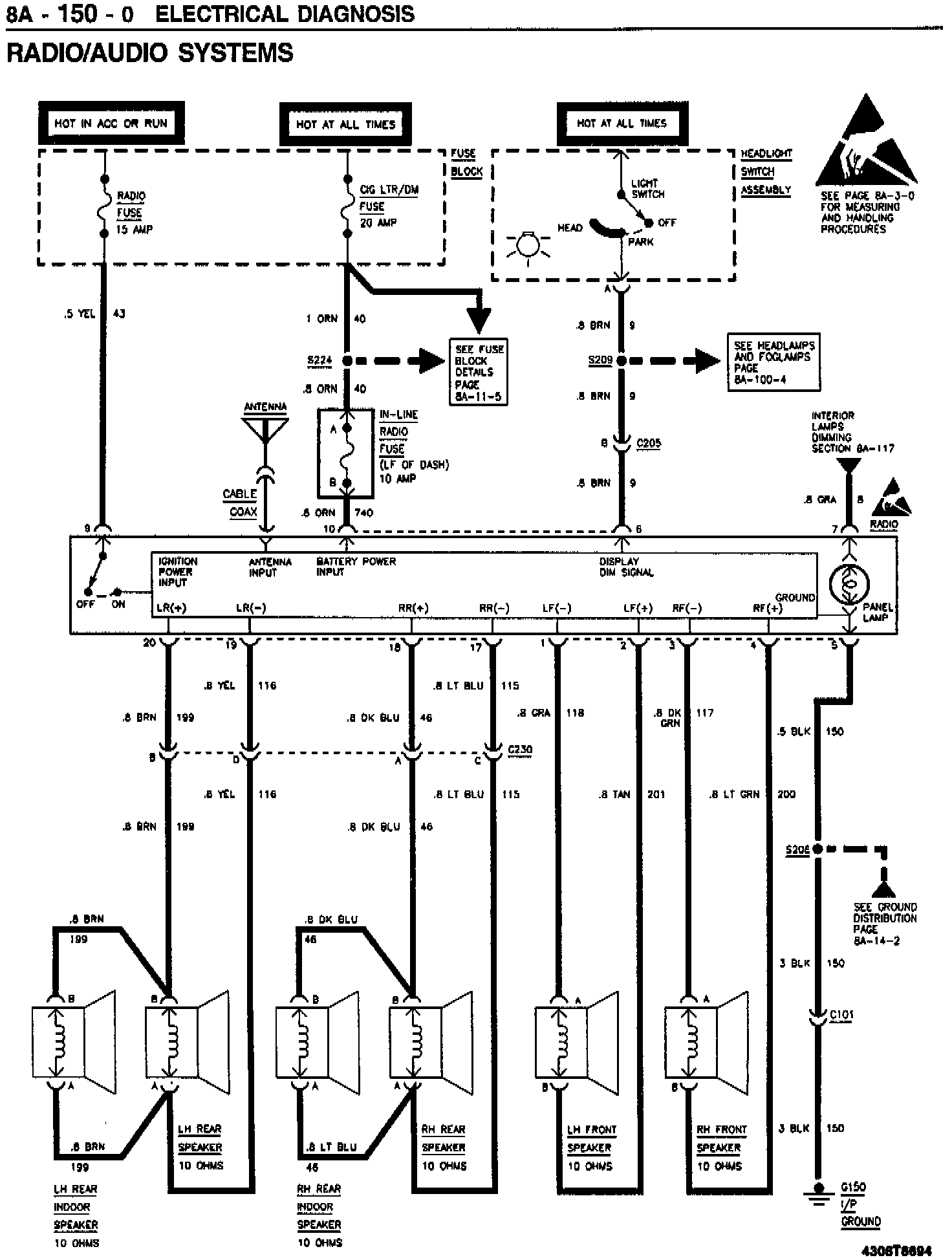

Section 8A-40 - Horns and Section 8A-150 - Radio - Revised Schematics
Models:
1995 Chevrolet and GMC M/L Models
This bulletin revises schematic pages 8A-40-0 and 8A-150-0 in the 1995 M/L Service Manual.
