Instrument Cluster/Connector Face - Revised Schematics

File In Section: 8 - Chassis/Body Electrical

Bulletin No.: 66-81-27

Date: January, 1997

SERVICE MANUAL UPDATE

Subject:
Section 8A-81-1 - Instrument Cluster and Section 8A-202-8 - Connector Face

Models:
1995 Chevrolet and GMC M/L Models

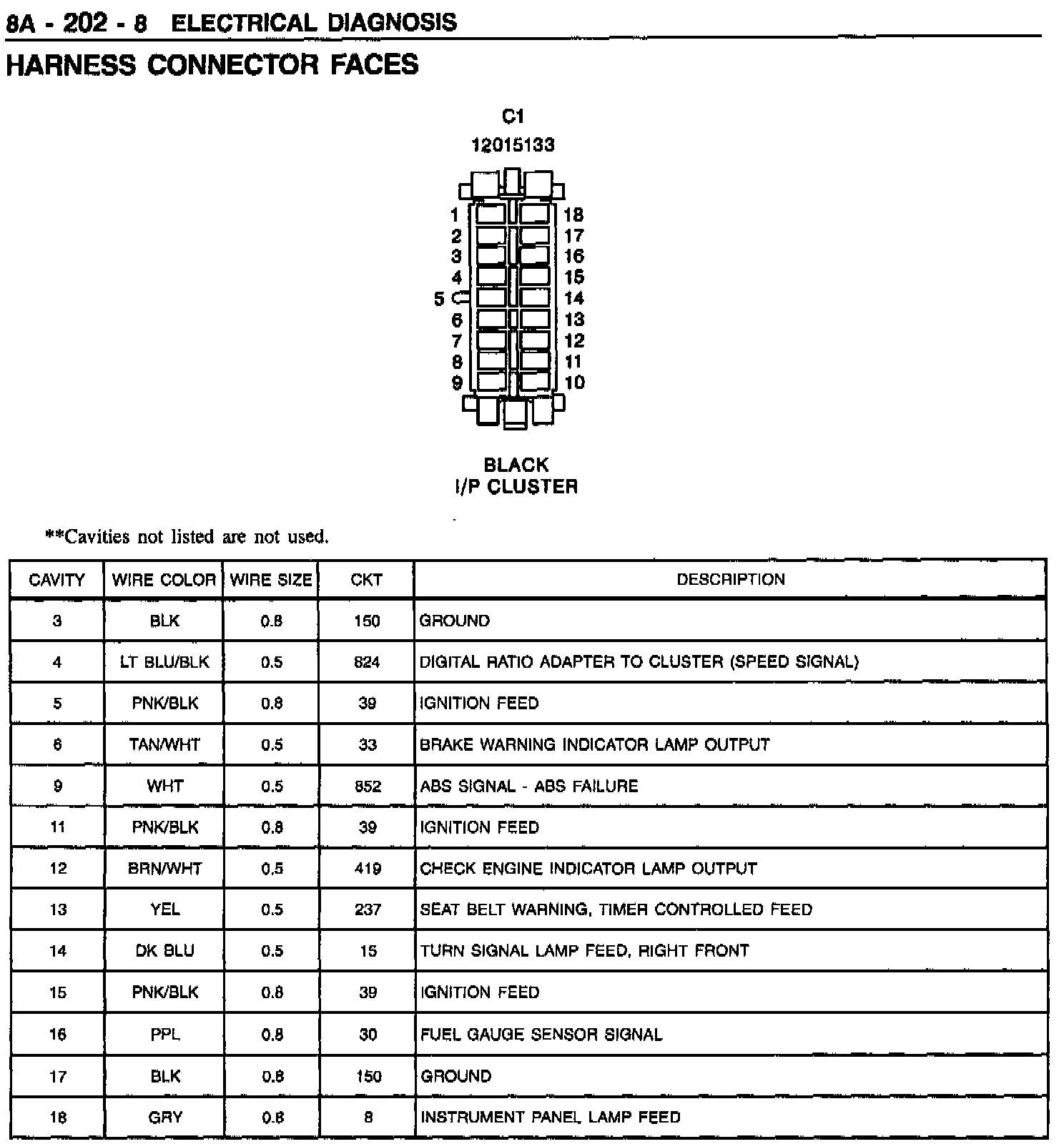

This bulletin revises the schematic on Page 8A-81-1 in the 1995 M/L Service Manual, and the Connector Face ID table on Page 8A-202-8 in the 1995 Service Manual.
