Power Door Locks - Revised Schematic

File In Section: 8 - Chassis/Body Electrical

Bulletin No.: 66-81-24

Date: December, 1996

SERVICE MANUAL UPDATE

Subject:

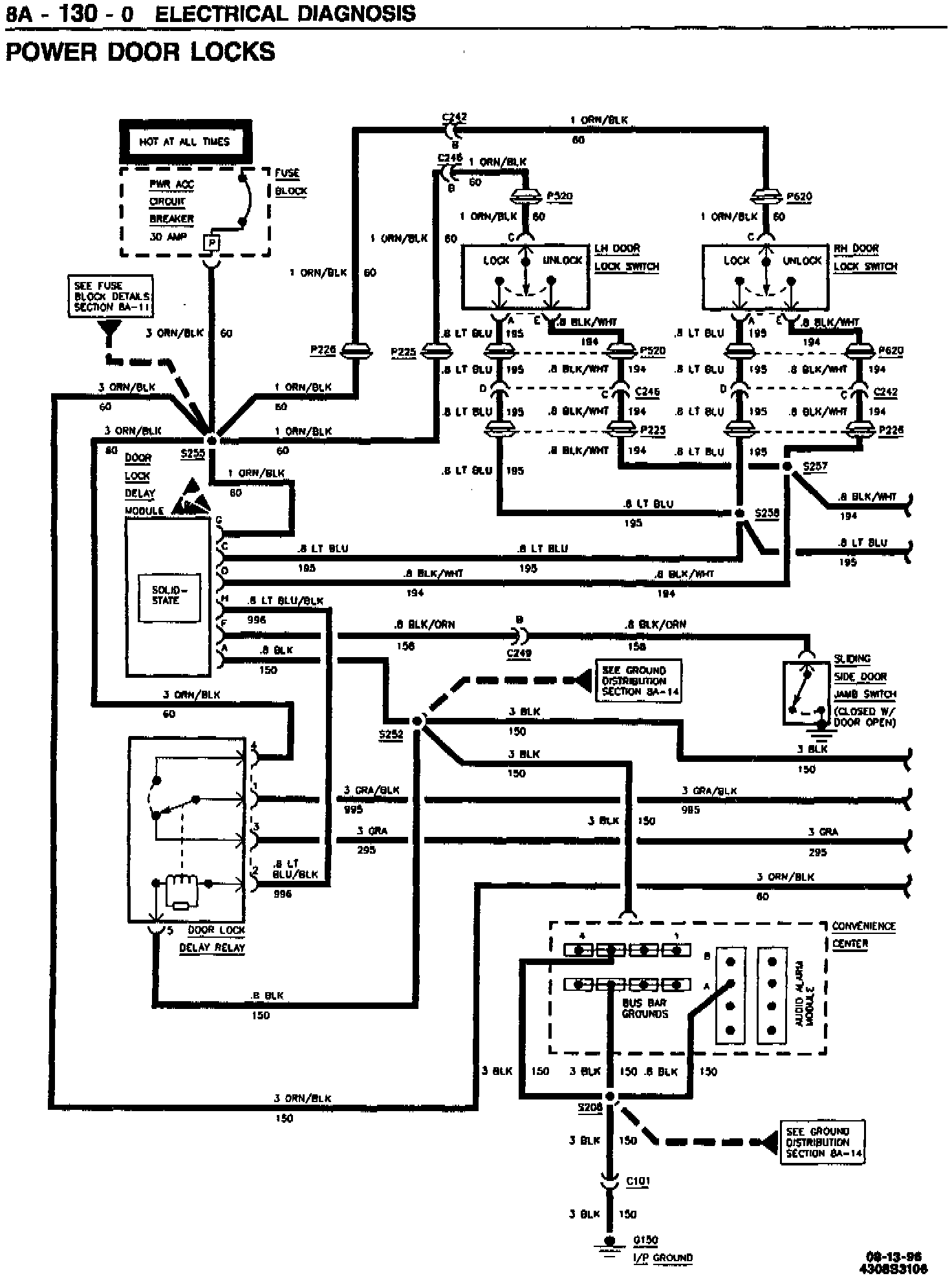

Section 8A-130 - Power Door Locks - Revised Schematic

Models:
1995 Chevrolet and GMC M/L Models





This bulletin revises the schematic of the power door locks on Page 8A-130-0 of the 1995 M/L Service Manual.
