Chevy Truck
>>
1995
>>
G 10 Van V8-305 5.0L VIN H TBI
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Shift Interlock
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

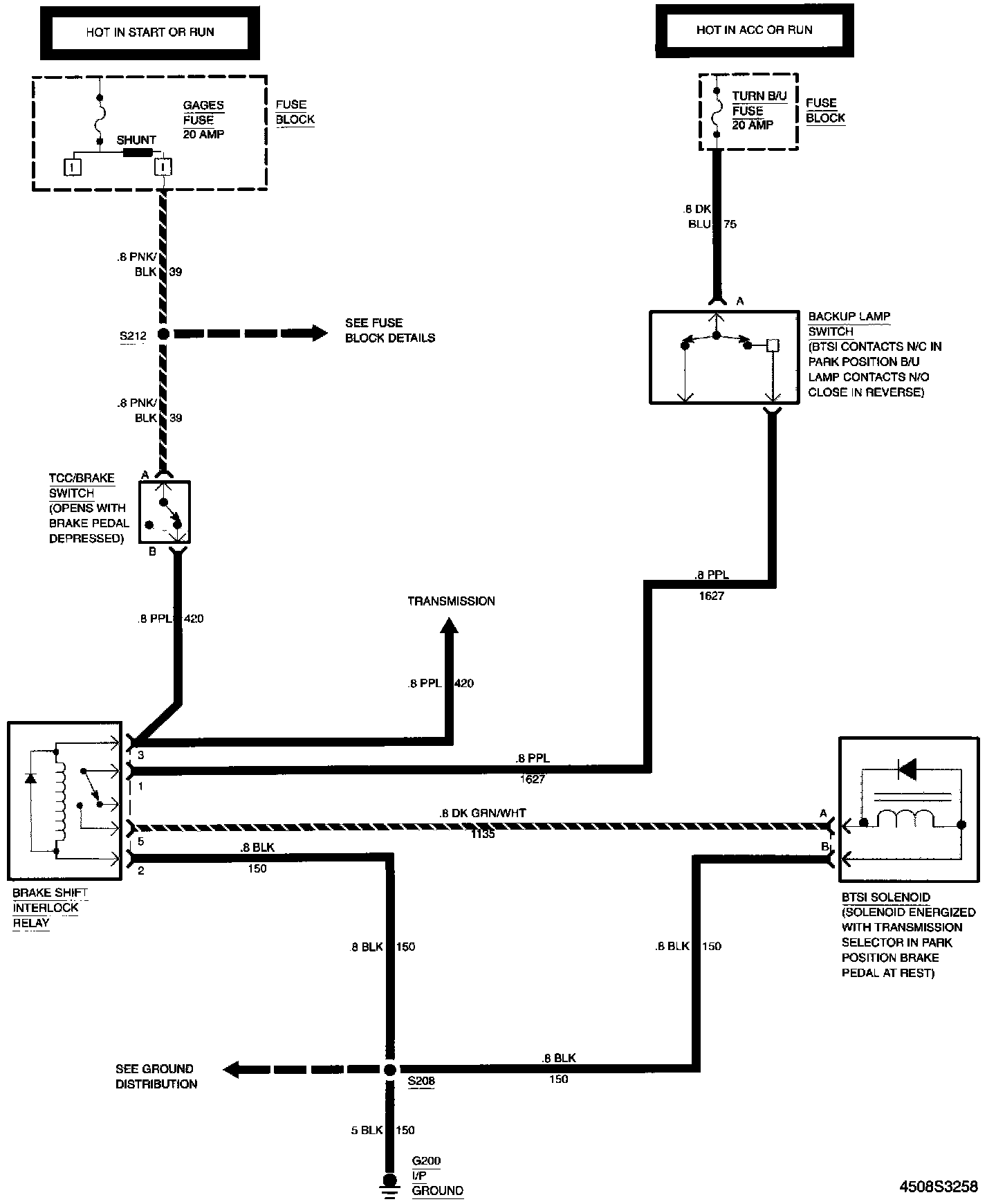

Brake/Transmission Shift Interlock:
