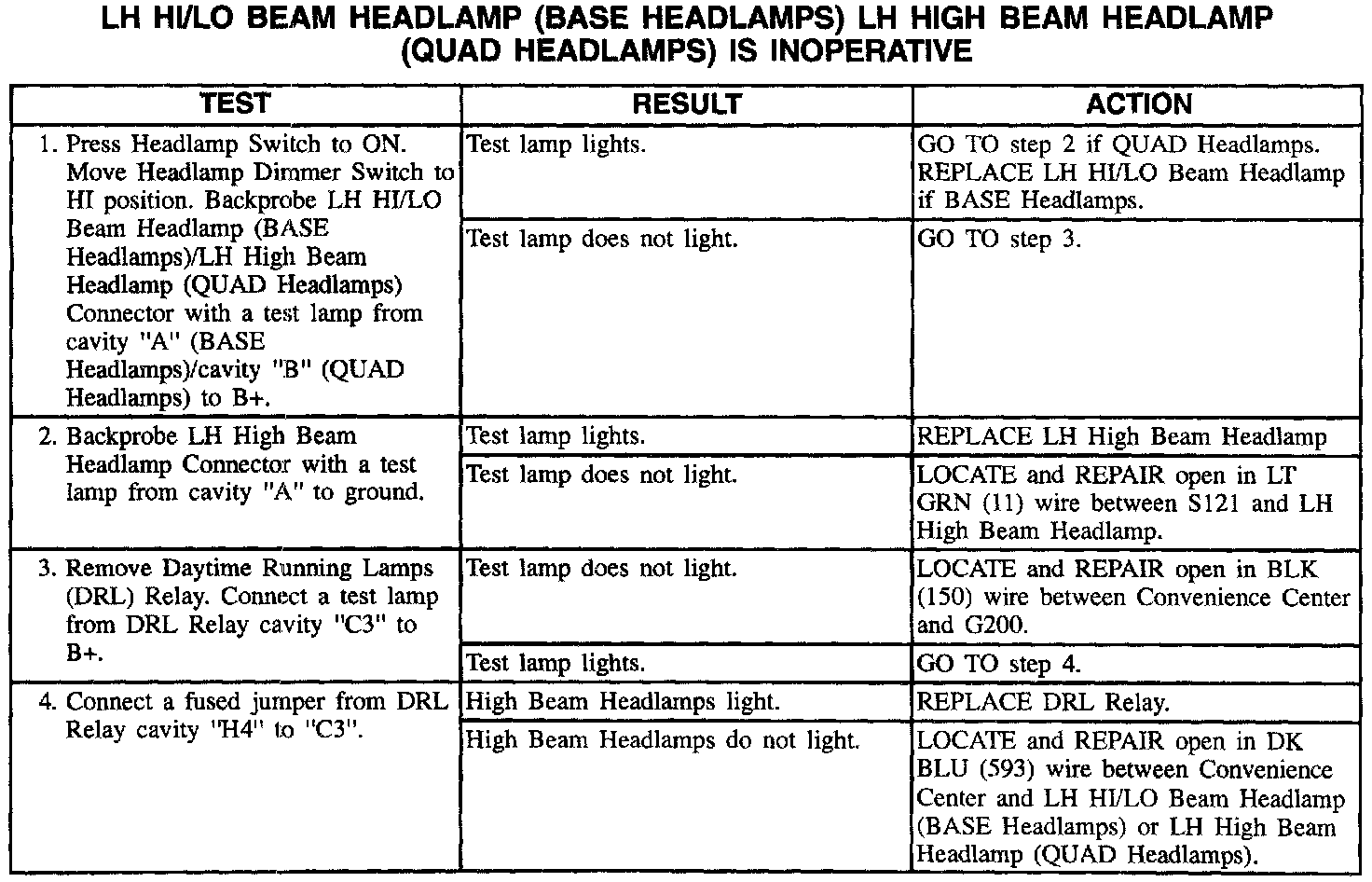

LH Hi/ LO Beam Headlamp, LH High Beam Headlamp Inoperative
LH Hi/ LO Beam Headlamp, LH High Beam Headlamp Inoperative
LH HI/LO Beam Headlamp:
