Body Wiring Harn to Electronic Level Control Wiring Harn
Body Wiring Harn to Electronic Level Control Wiring Harn

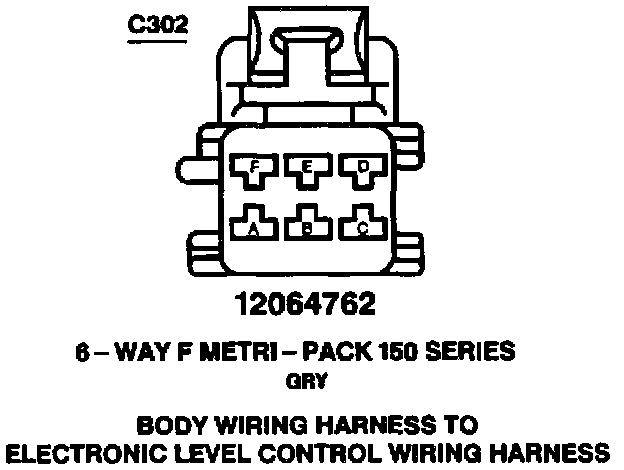

C302: Body Wiring Harness To Electronic Level Control Wiring Harness:
