Dashboard / Instrument Panel: Service and Repair

I/P UPPER TRIM PANEL

Remove or Disconnect

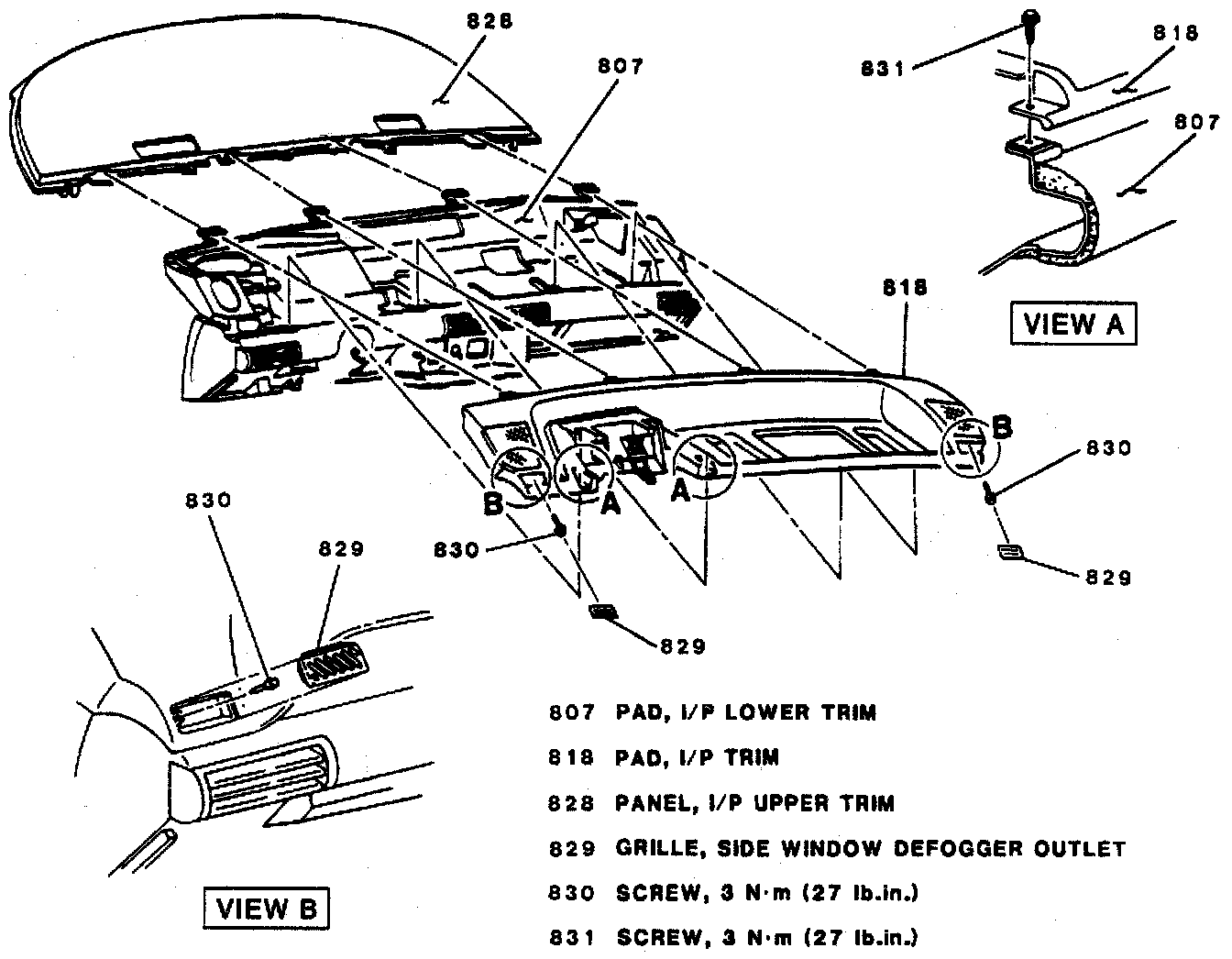

Chevrolet Shown:

1. I/P trim pad.
2. Defogger vent grilles from I/P upper trim panel.
3. RH front radio speaker.

- Loosen the upper edge of the UP lower trim panel by removing two hex screws.

4. Five screws retaining I/P upper trim panel and panel from vehicle.

Install or Connect

Chevrolet Shown:

1. I/P upper trim panel into vehicle with five retaining screws.
2. Two hex screws to secure upper edge of I/P upper trim panel.
3. RH front radio speaker.
4. Defogger vent grilles to "I/P upper trim panel.
5. I/P trim pad.
