Sliding Door

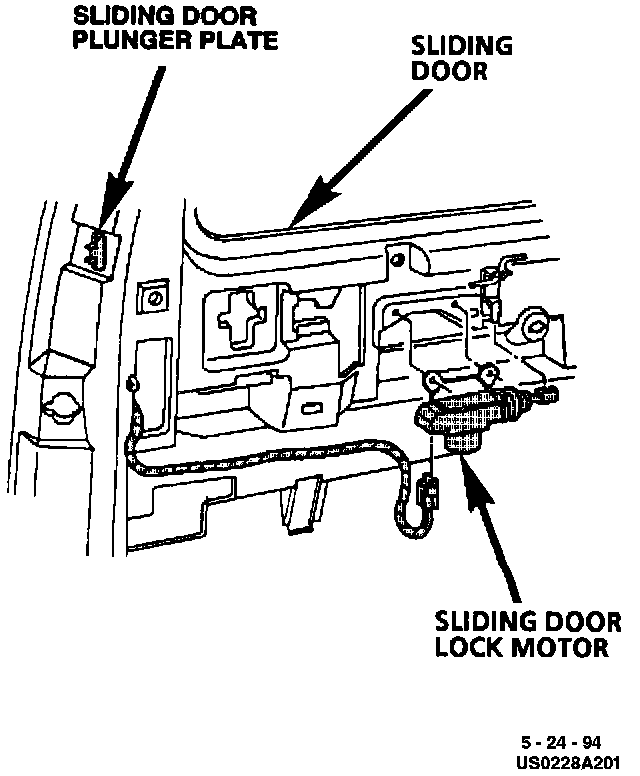

Sliding Door Contact Switch And Lock Motor Wiring:



Sliding Door:

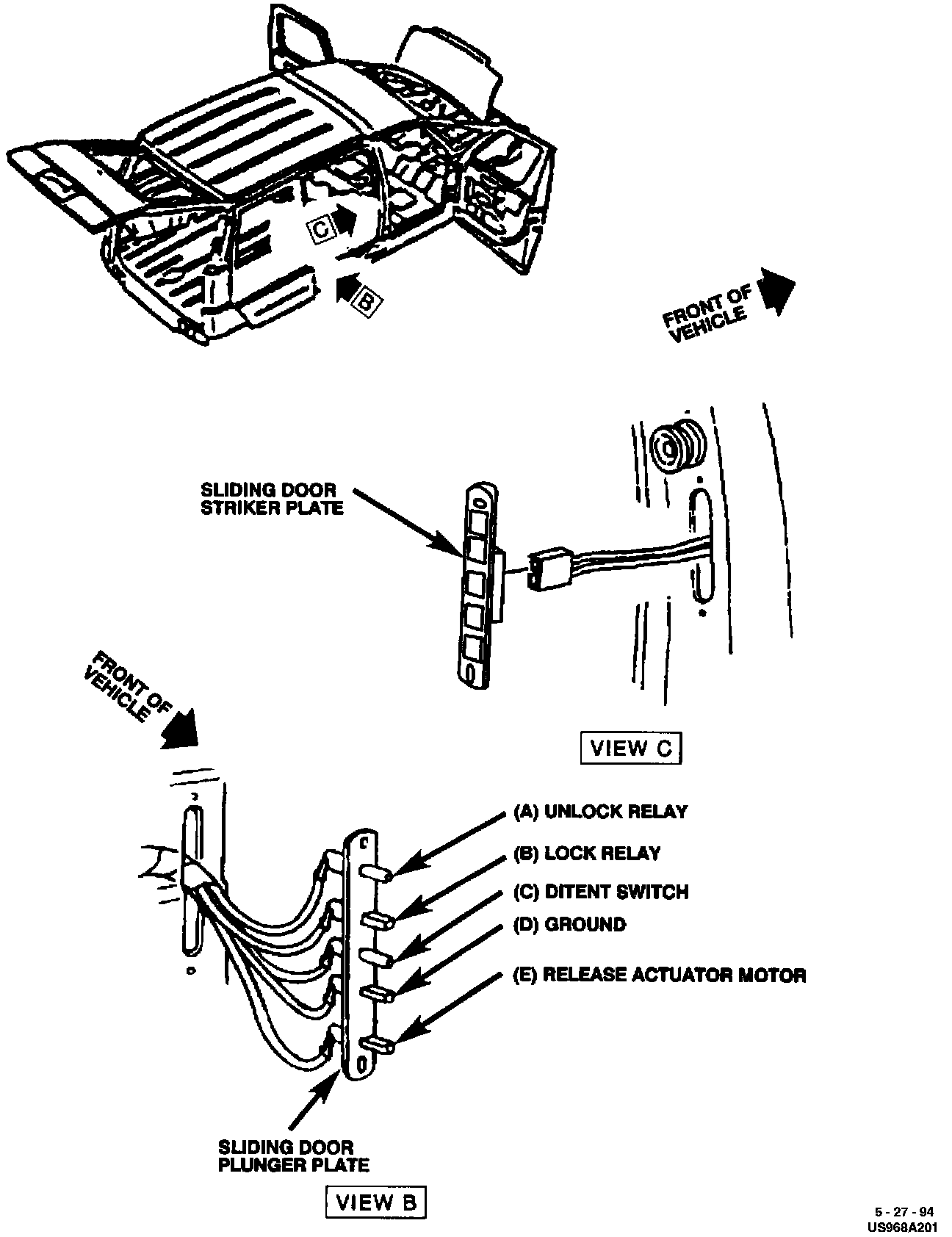

Between Middle Front End Of Sliding Door And Middle Back RH B Pillar:
