Chevy Truck
>>
1995
>>
Lumina APV V6-191 3.1L VIN D TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Sensors
>>
Throttle Position (TP) Sensor
Throttle Position (TP) Sensor

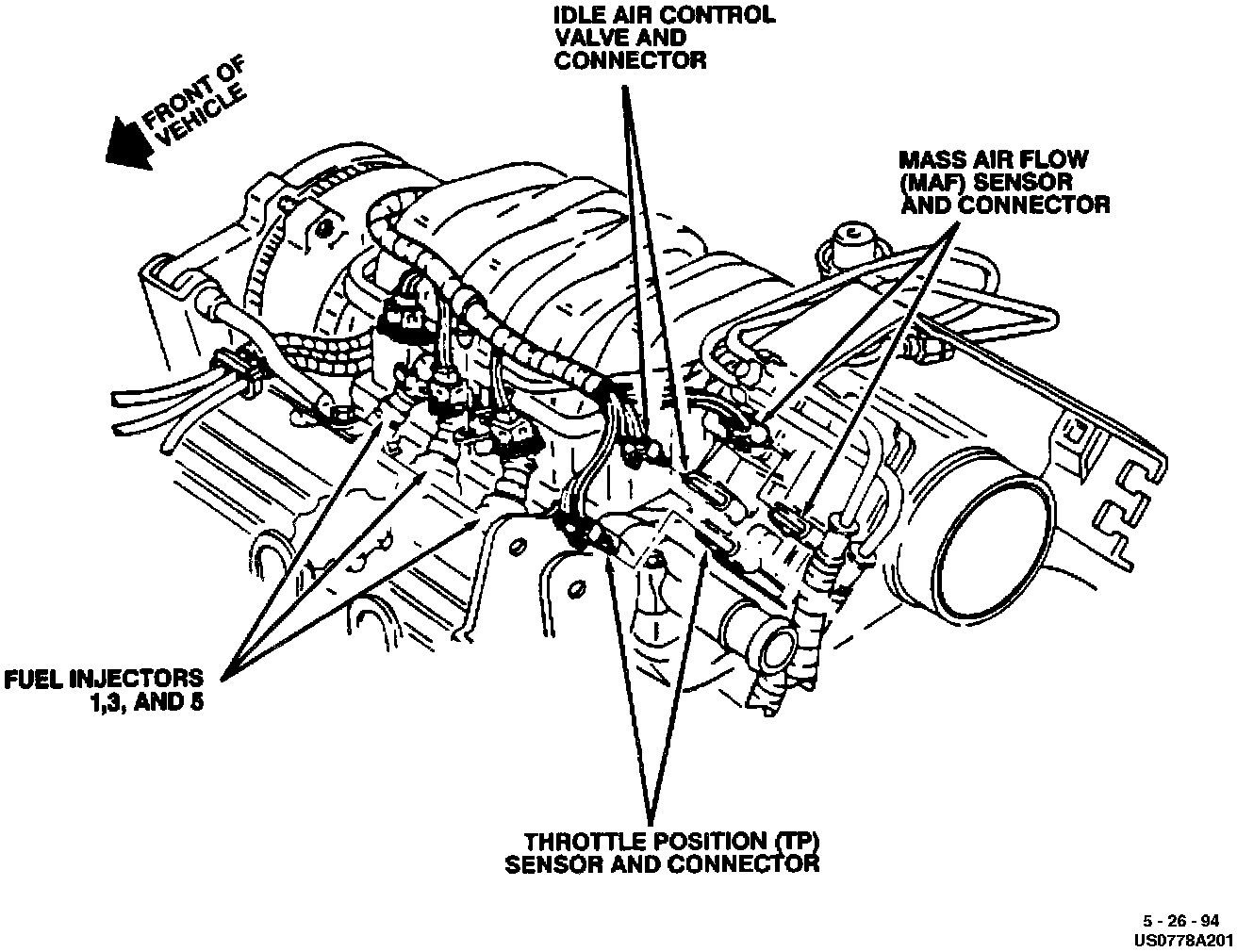

Middle Of Engine Compartment Below Air Filter:

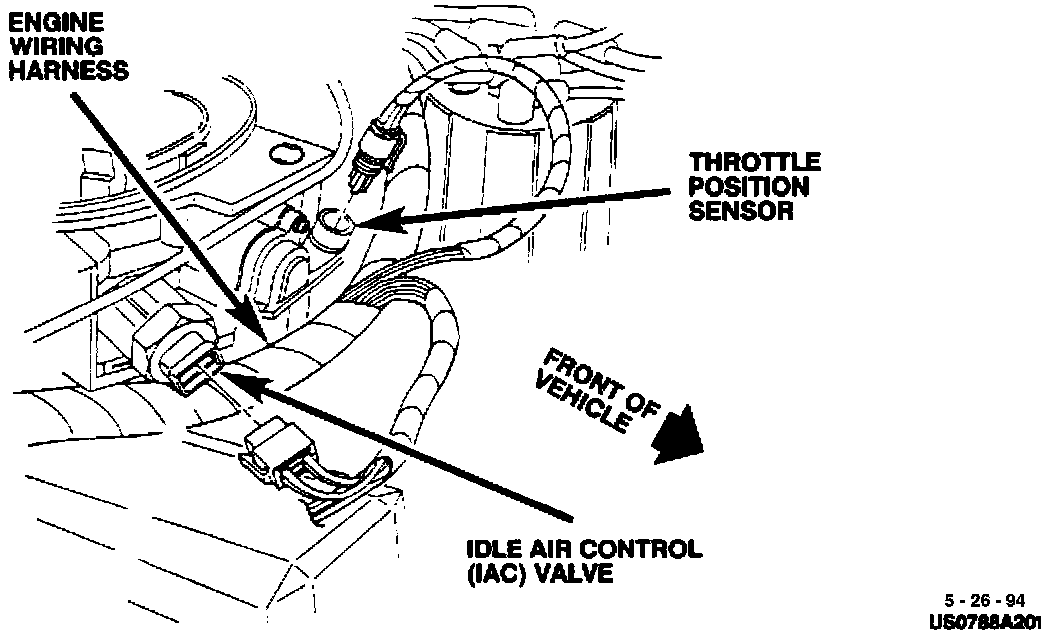

Top RH Side Of Engine:
