Malfunction Indicator Lamp

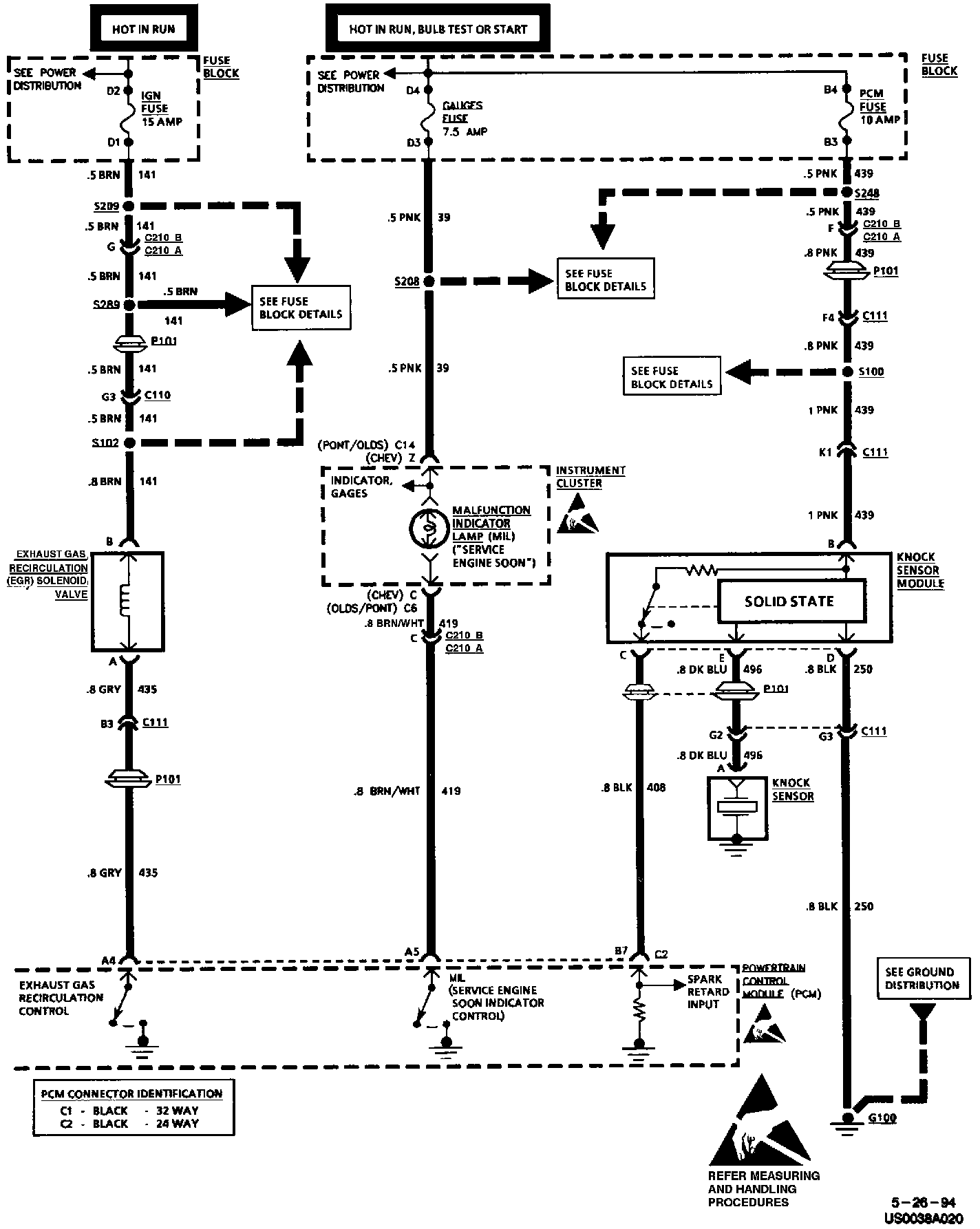

Malfunction Indicator Lamp (MIL), Spark Control And Emission Control:

This diagram is one part of the Complete set of Powertrain Wiring Diagrams located under Powertrain Management. Refer to this area if you need the accompanying diagram. Diagrams
