Chevy Truck
>>
1995
>>
Lumina APV V6-191 3.1L VIN D TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Keyless Entry
>>
With Keyless Entry
With Keyless Entry

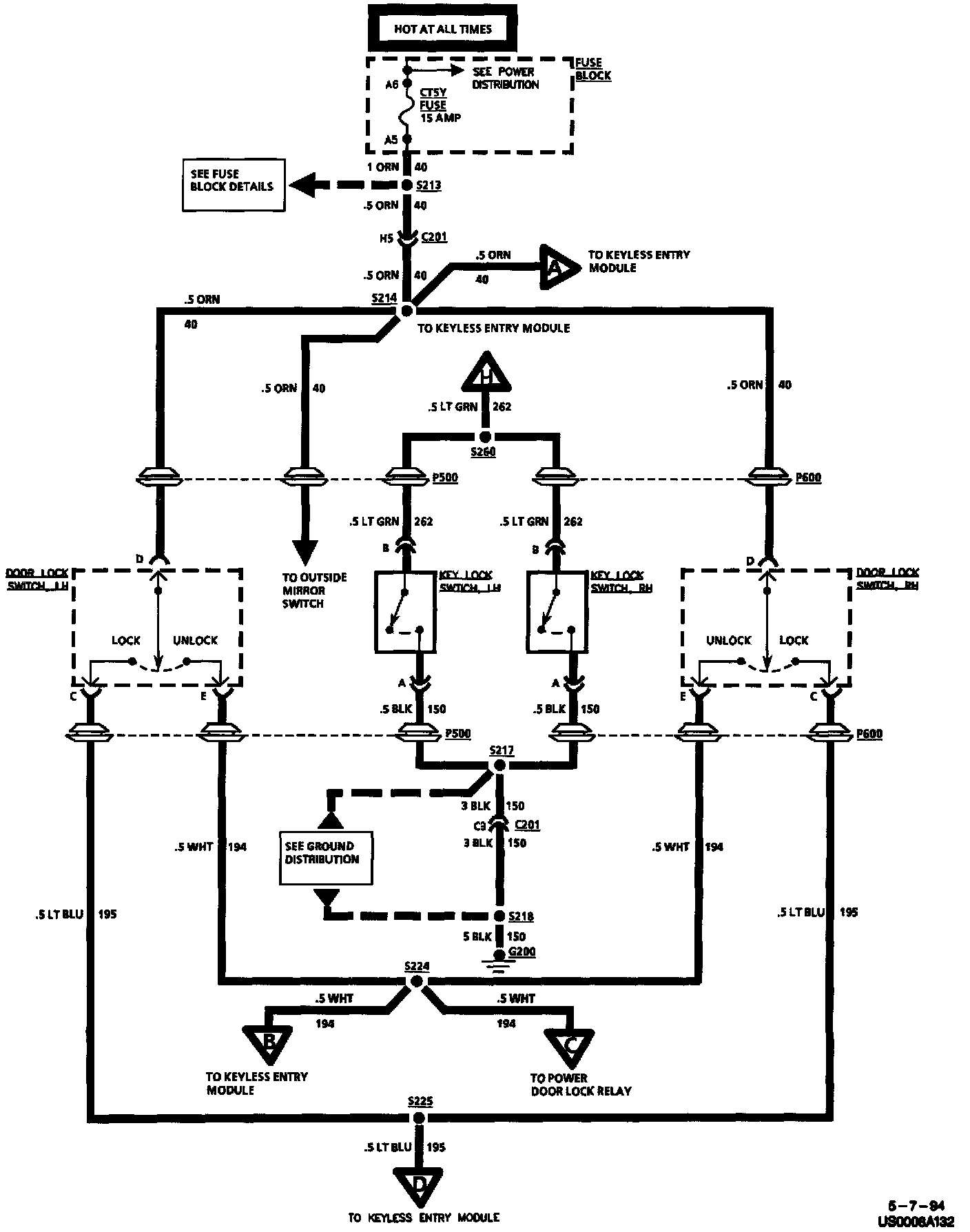

Keyless Entry (Part 1 Of 3):

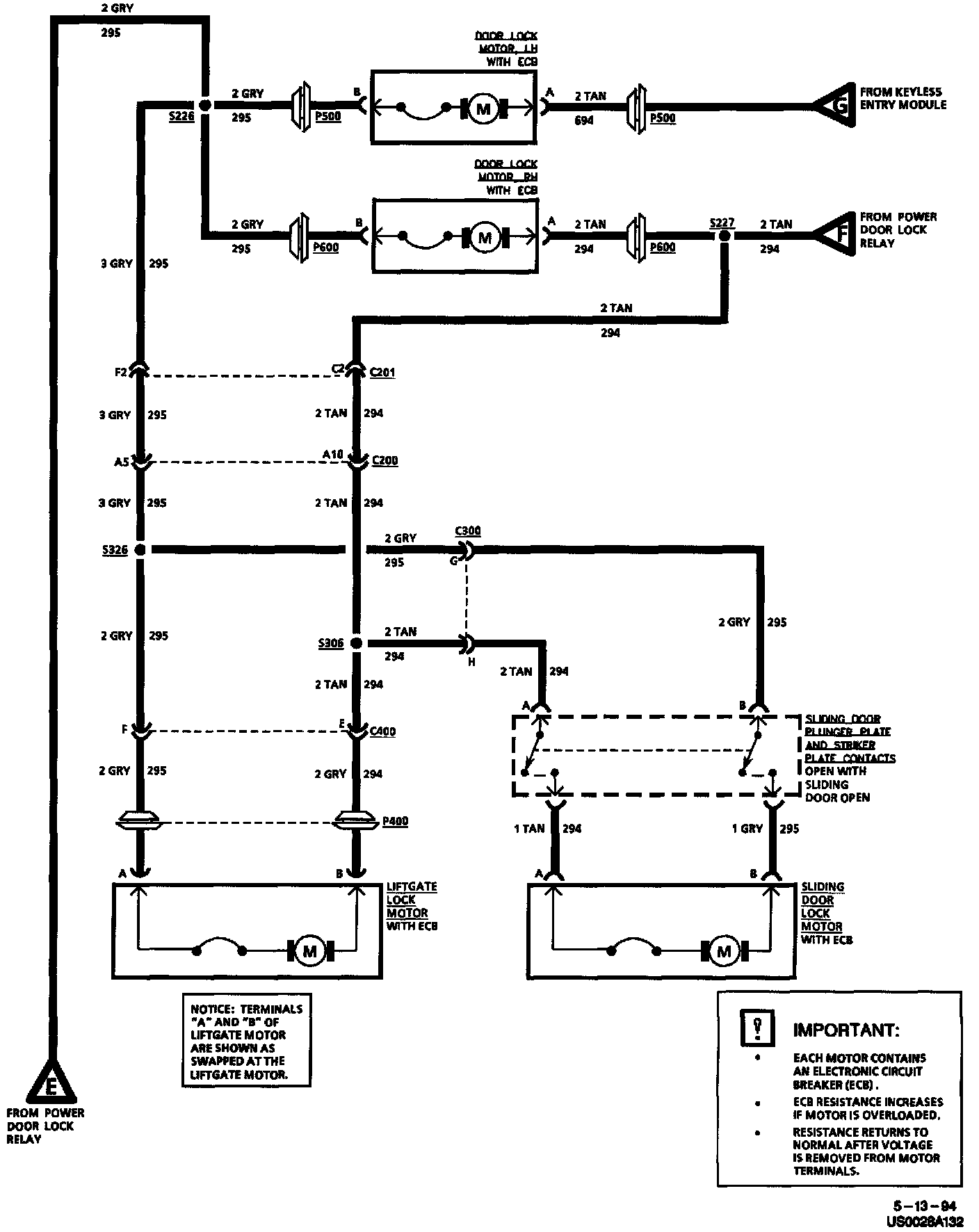

Keyless Entry (Part 2 Of 3):

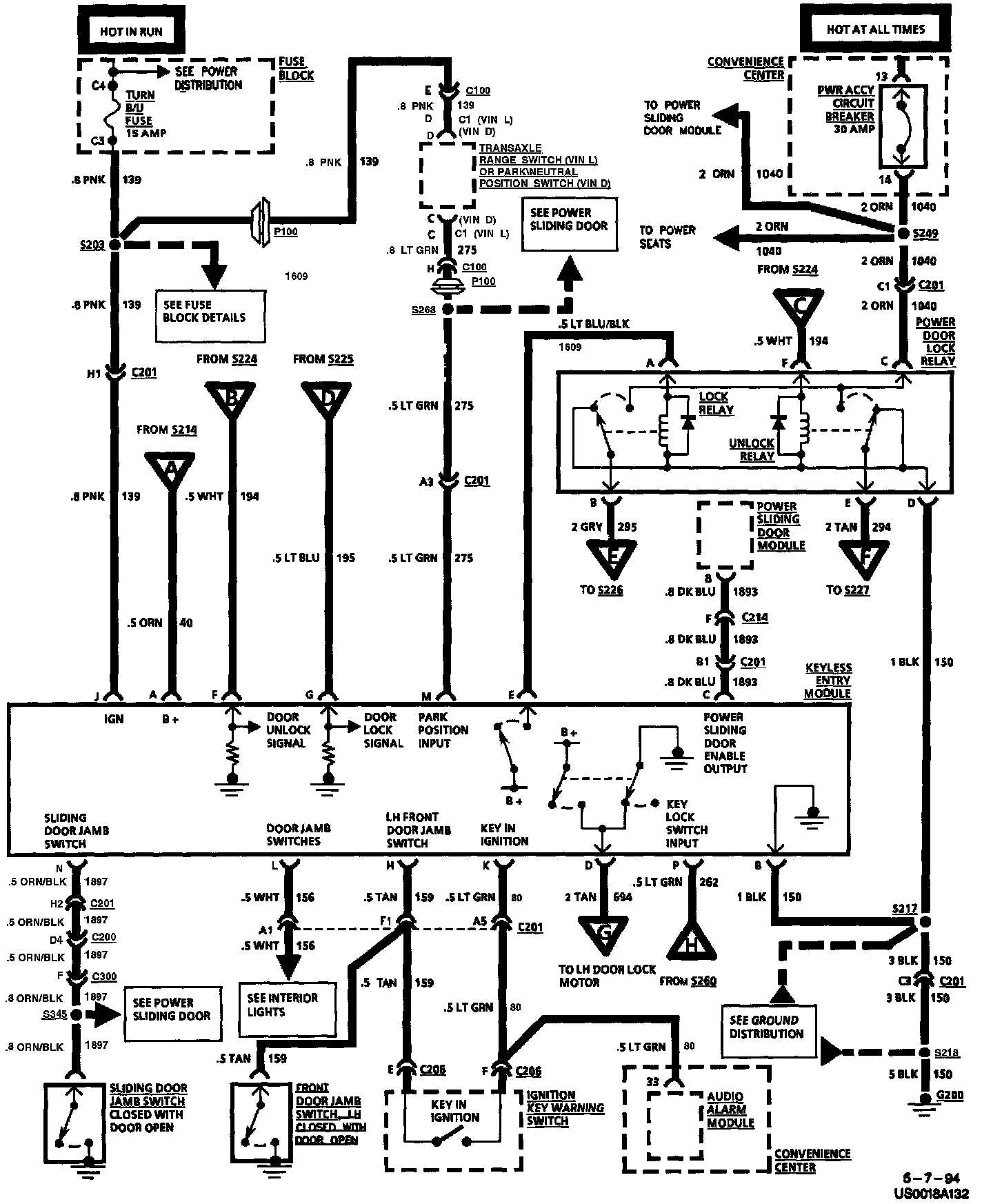

Keyless Entry (Part 3 Of 3):
