With Passive Keyless Entry/Security System (UY6)

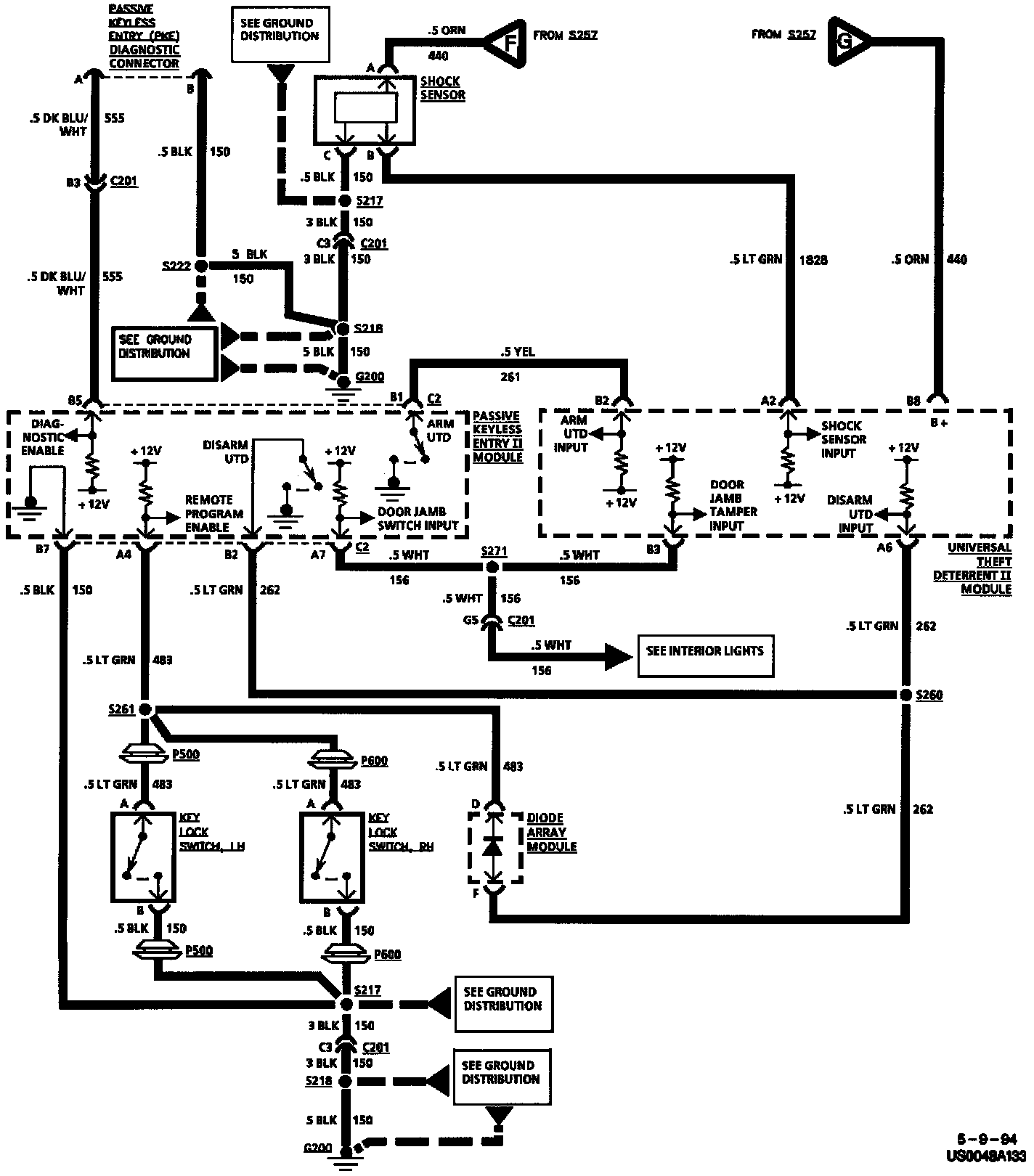

Passive Keyless Entry/Security System (UY6) (Part 1 Of 5):

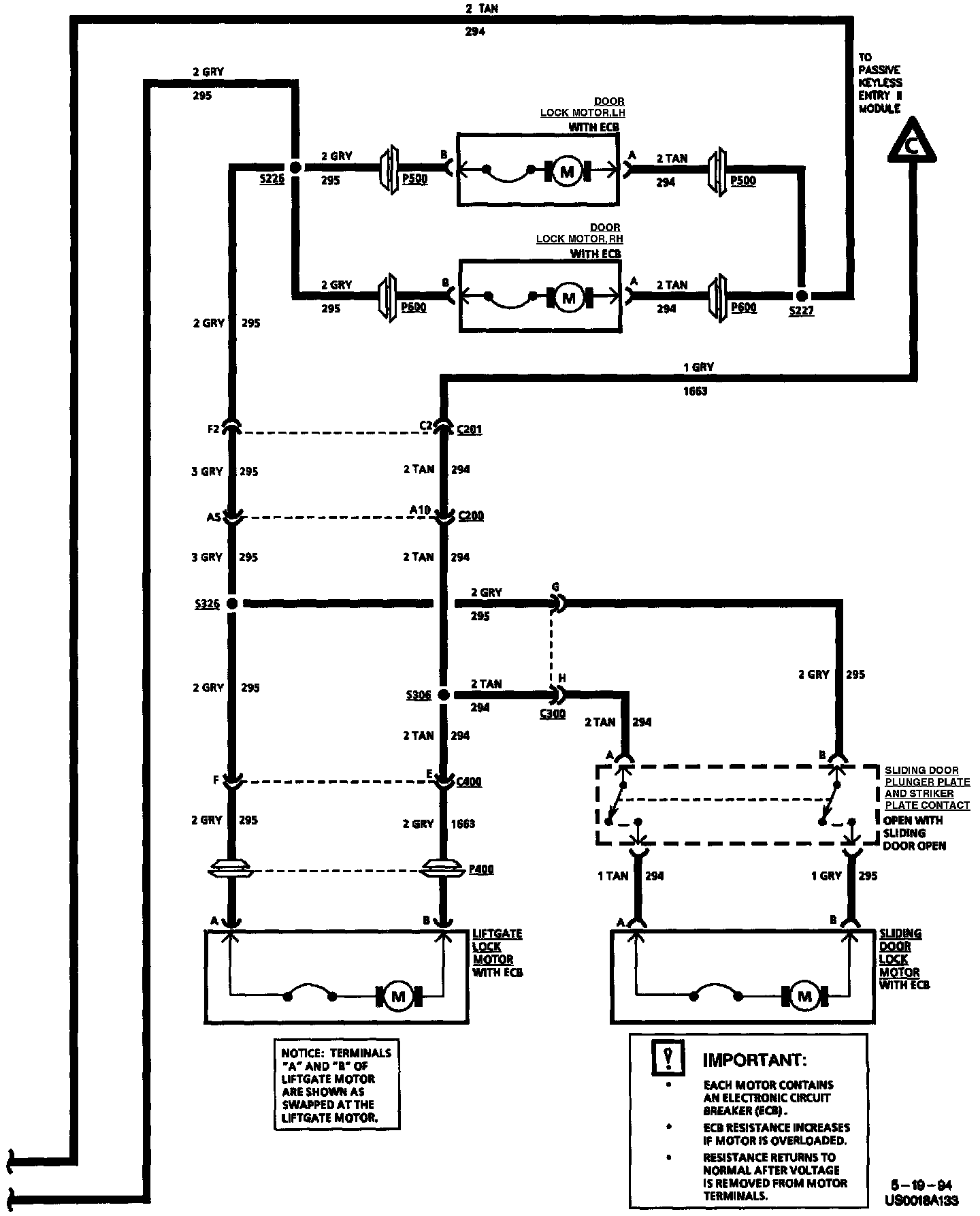

Passive Keyless Entry/Security System (UY6) (Part 2 Of 5):

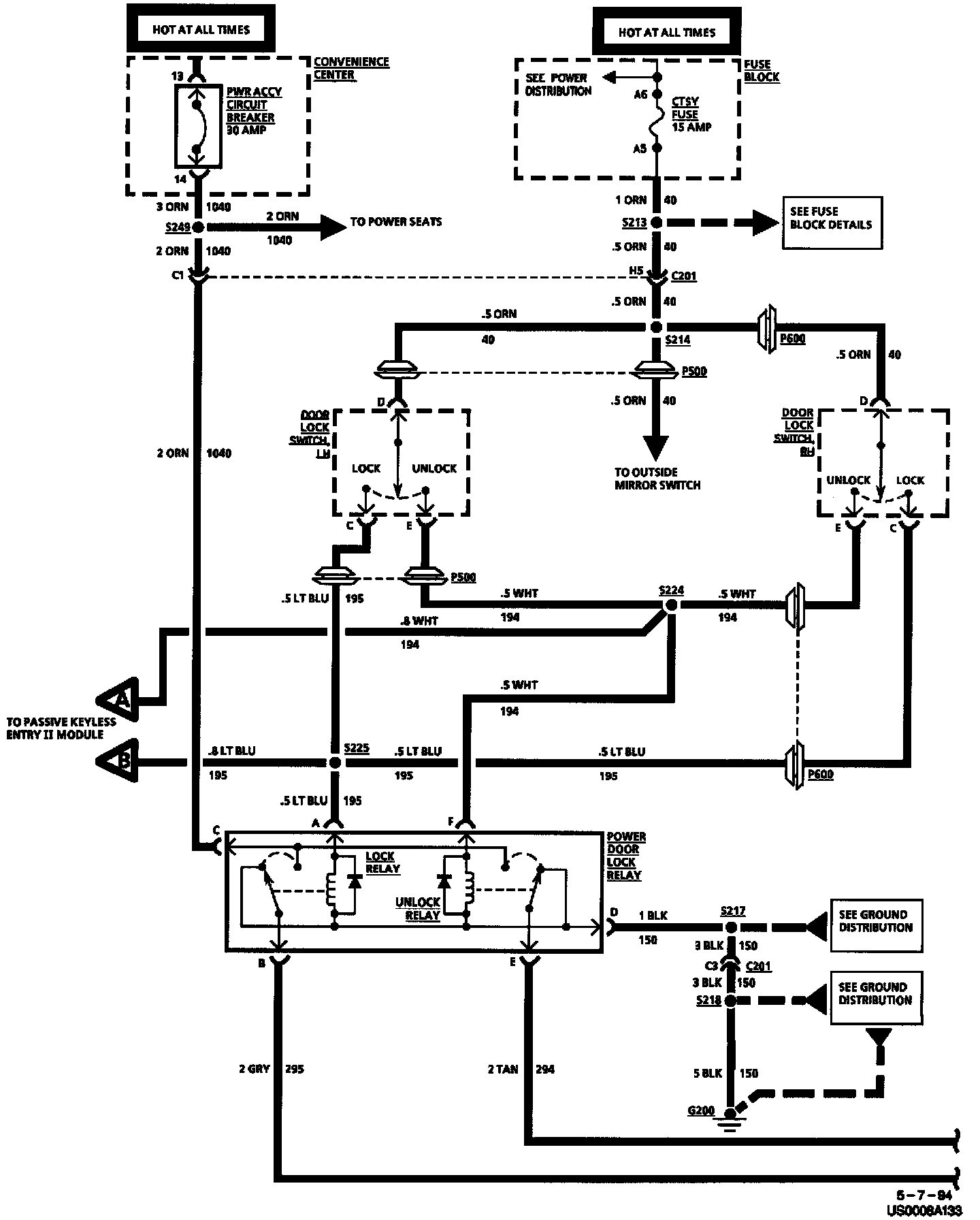

Passive Keyless Entry/Security System (UY6) (Part 3 Of 5):

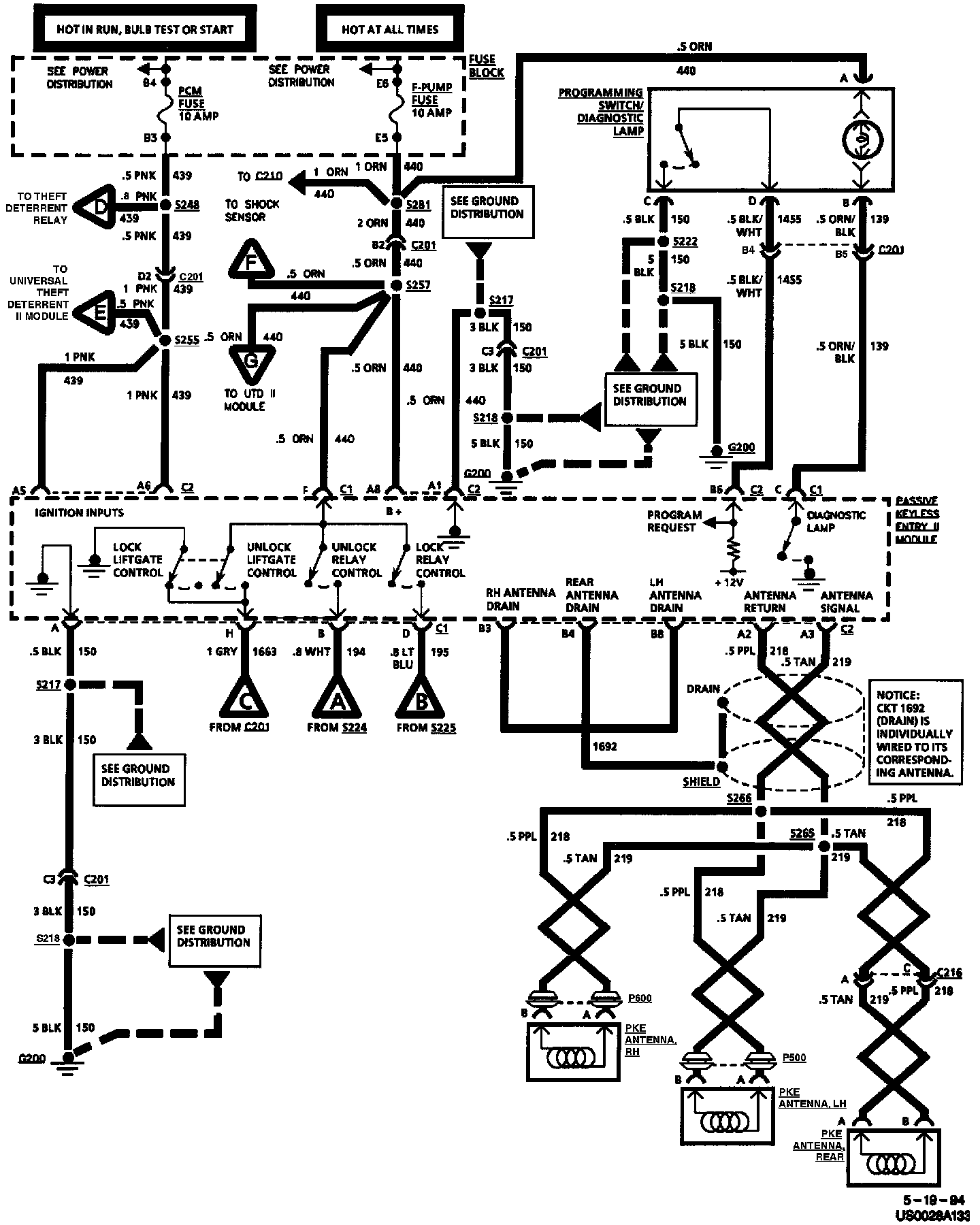

Passive Keyless Entry/Security System (UY6) (Part 4 Of 5):




Passive Keyless Entry/Security System (UY6) (Part 5 Of 5):
