Lumina APV V6-191 3.1L VIN D TBI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
With A/C
With A/C

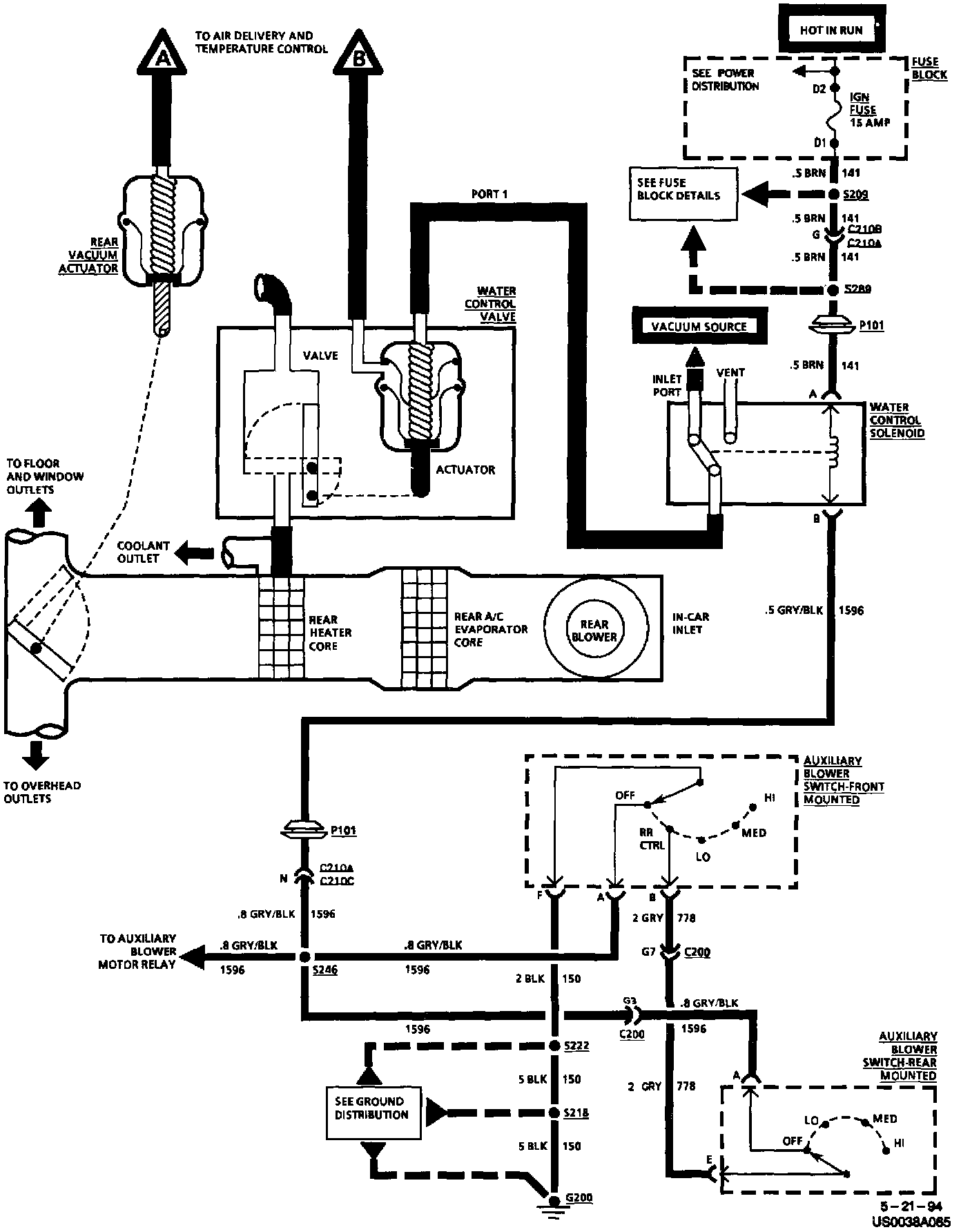

HVAC Air Delivery And Temperature Control: Manual A/C (C67 And C34 Or C34/C36) (Part 1 Of 2):

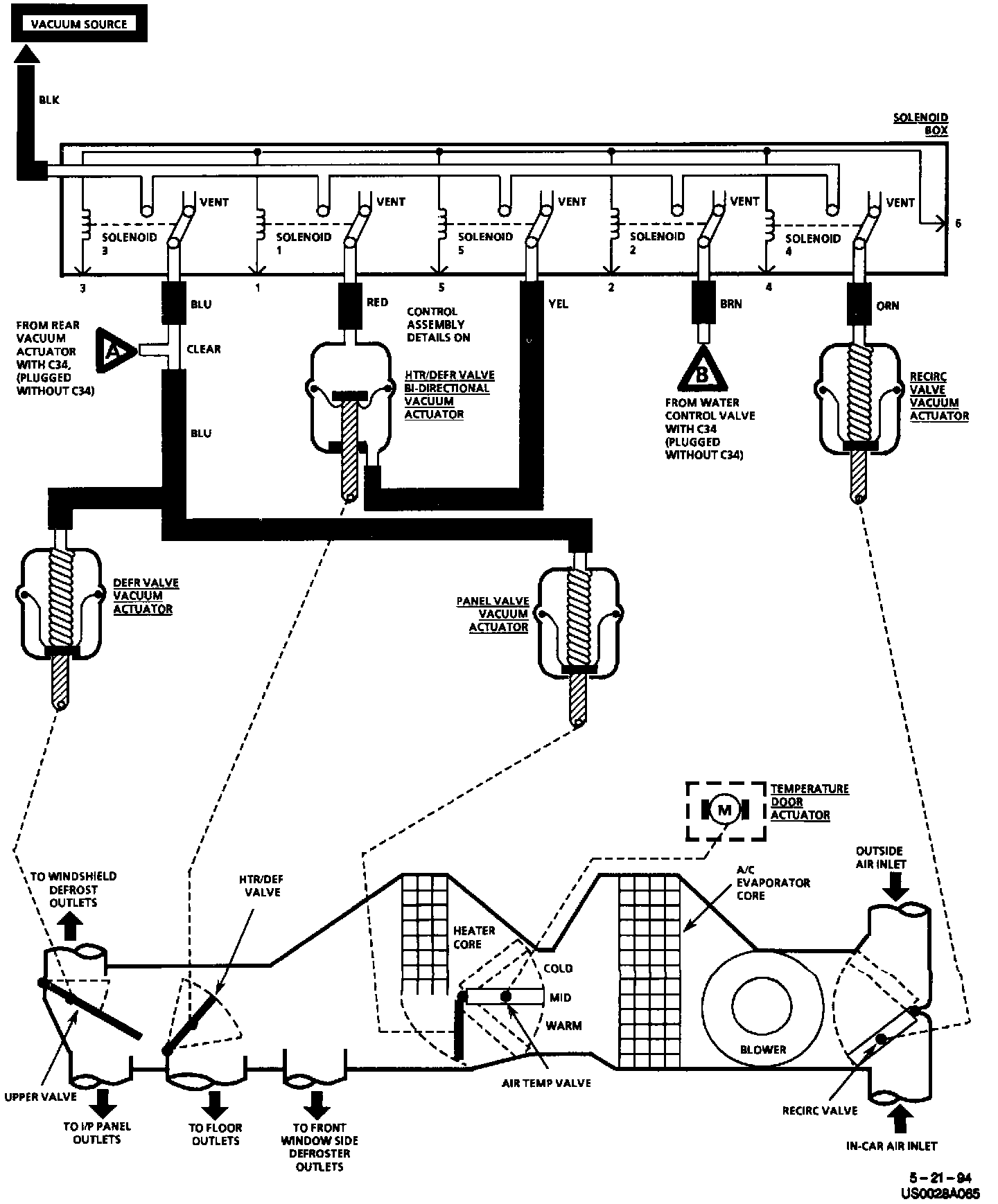

HVAC Air Delivery And Temperature Control: Manual A/C (C67 And C34 Or C34/C36) (Part 2 Of 2):
